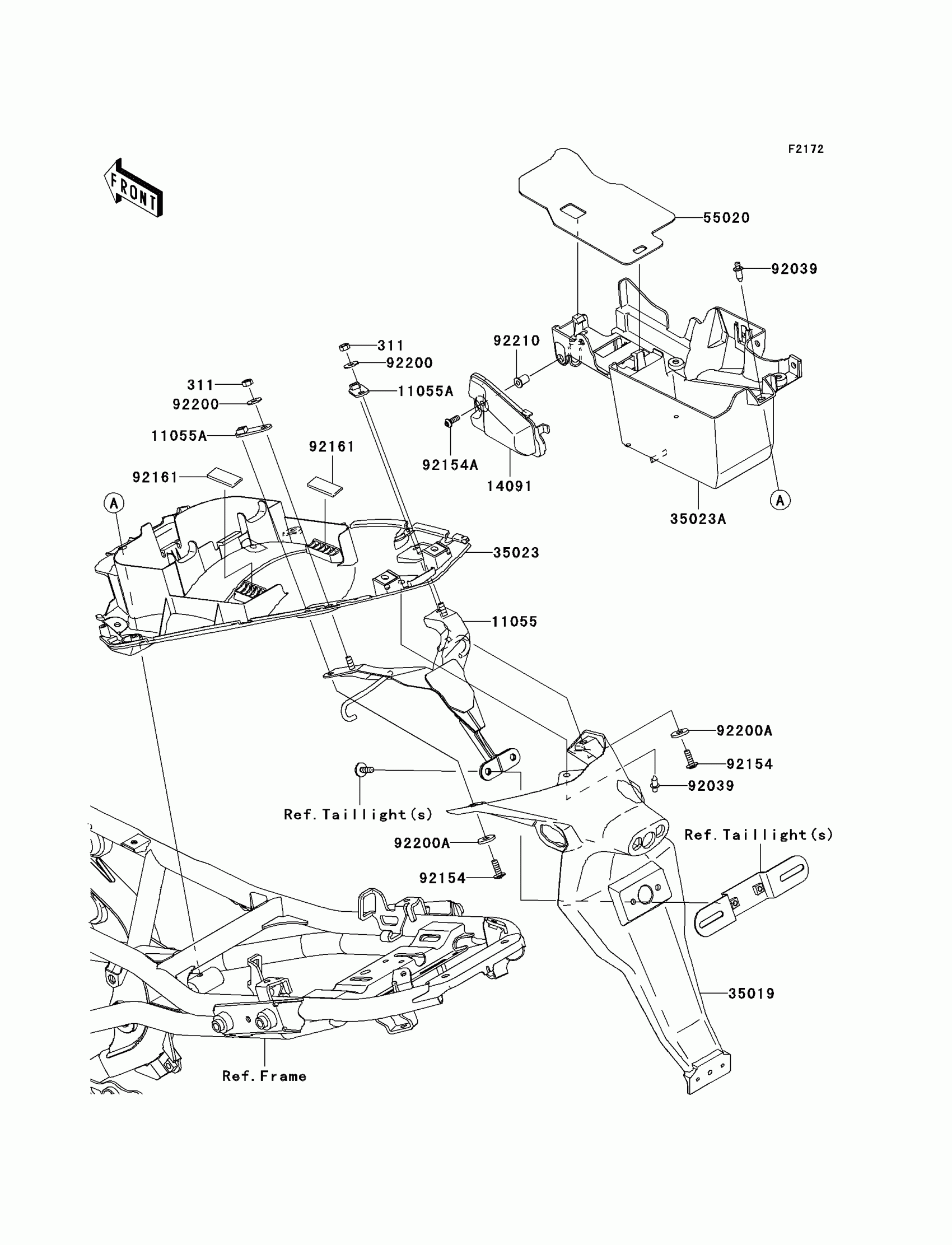

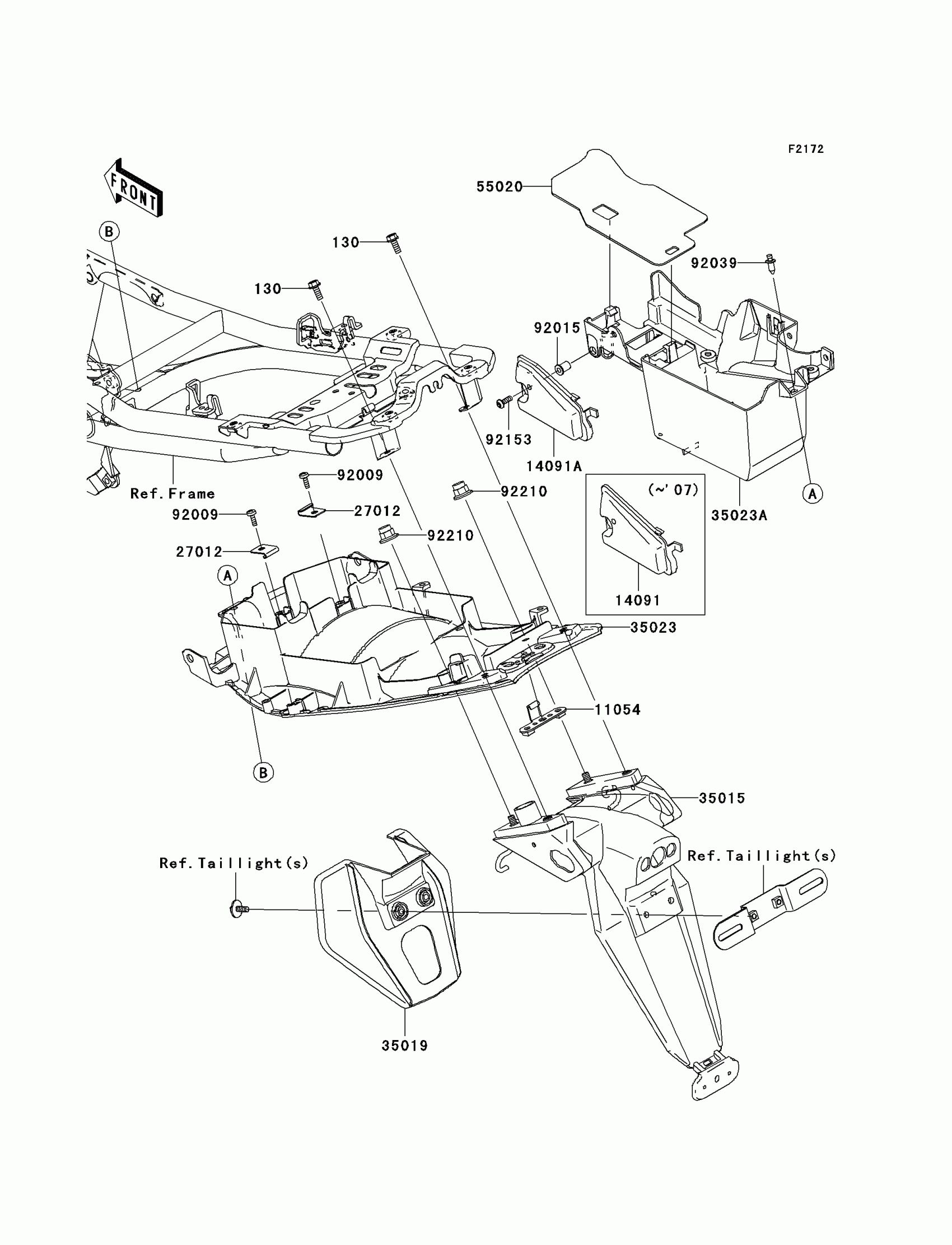

Kawasaki ER-6n (European) Rear Fender(s) Diagram

Description

Price

311

NUT-HEX,6MM

311AA0600

$0.96

11055

BRACKET,FLAP

11055-0587

$85.33

11055A

BRACKET

11055-0843

$3.97

14091

COVER,SWITCH MAINTENANCE

14091-1678

$8.75

35019

FLAP

35019-0075

$78.93

35023

FENDER-REAR,RR

35023-0142

$59.40

35023A

FENDER-REAR,FR

35023-0163

$32.80

55020

GUARD,HEAT

55020-0220

$21.82

92039

RIVET

92039-1283

$2.80

92154

BOLT,SOCKET,6X18

92154-0139

$1.74

92154A

BOLT,SOCKET,5X16

92154-0182

$2.55

92161

DAMPER

92161-0773

$3.46

92200

WASHER,6.5X17X1

92200-0430

$1.34

92200A

WASHER,6.5X14X1

92200-1388

$2.46

92210

NUT,WELL,5MM

92210-0498

$7.29
