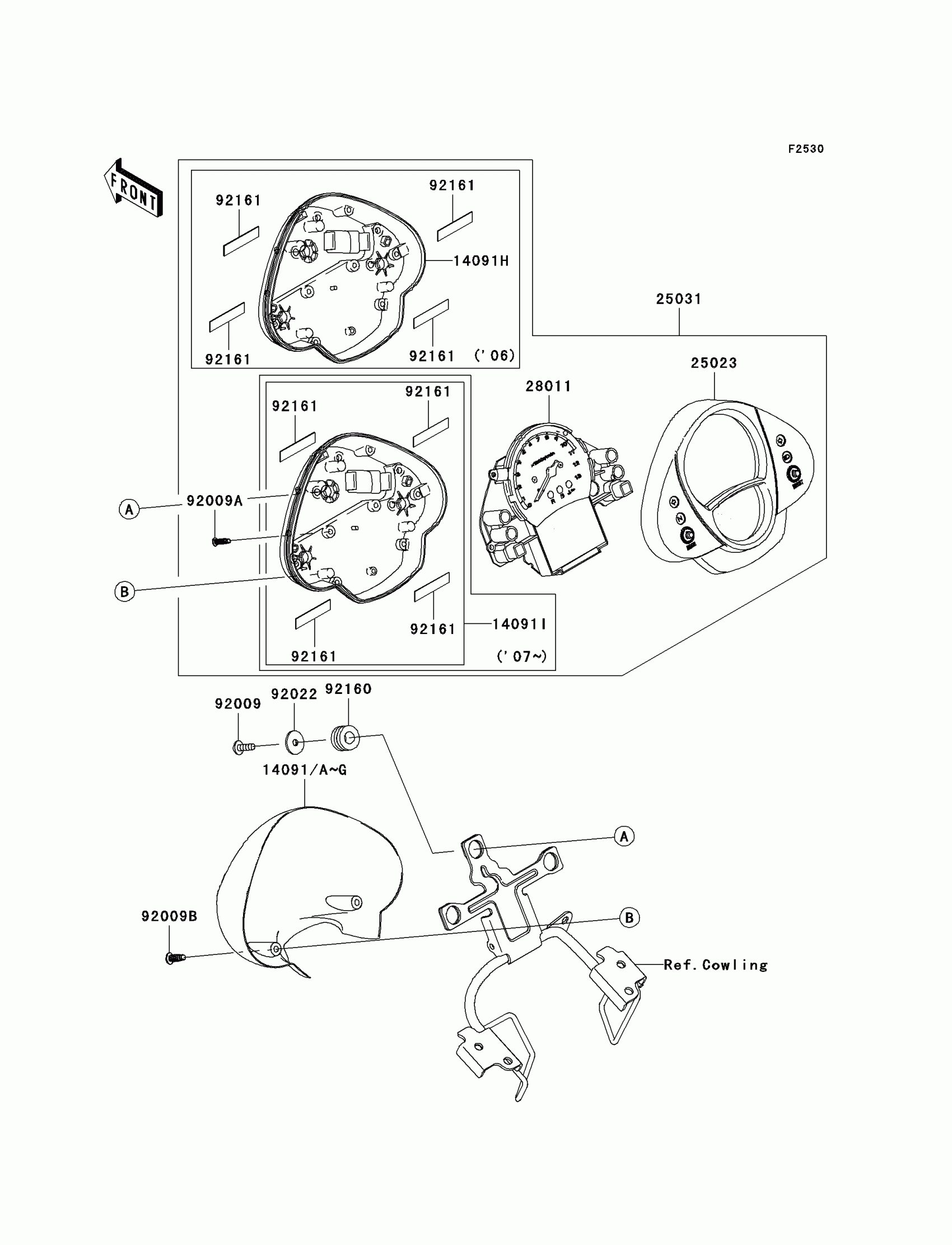

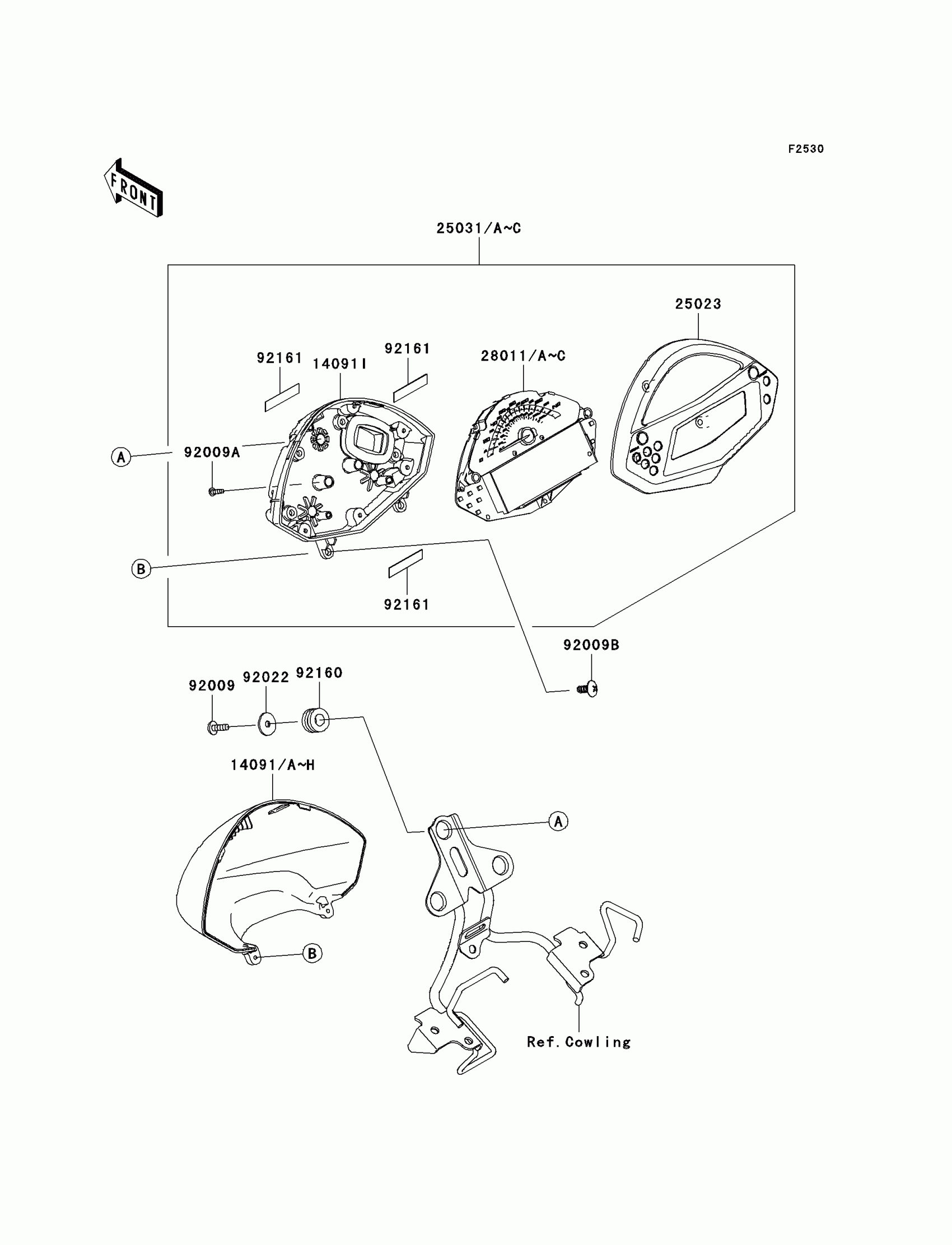

Kawasaki ER-6n (European) Meter(s) Diagram

Description

Price

14091

COVER,METER,P.WHITE

14091-1588-G3

$65.60

14091F

COVER,METER,M.S.BLACK

14091-1588-15Z

$65.60

14091G

COVER,METER,M.F.S.GREEN

14091-1588-35A

$65.60

14091I

COVER,METER,LWR

14091-1713

$134.58

25023

COVER-METER CASE

25023-0046

$221.88

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92009A

SCREW,TAPPING,3X16

92009-1391

$3.65

92009B

SCREW,TAPPING,4X14

92009-1593

$3.91

92022

WASHER,5.5X20X1.2

92022-1405

$4.31

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER

92161-0354

$1.86

25031B

METER-ASSY,KPH

25031-0295

Unavailable

25031C

METER-ASSY,MPH

25031-0296

Unavailable

28011B

METER,SPEED&LCD

28011-0157

$537.06

28011C

METER,SPEED&LCD

28011-0158

$590.43
