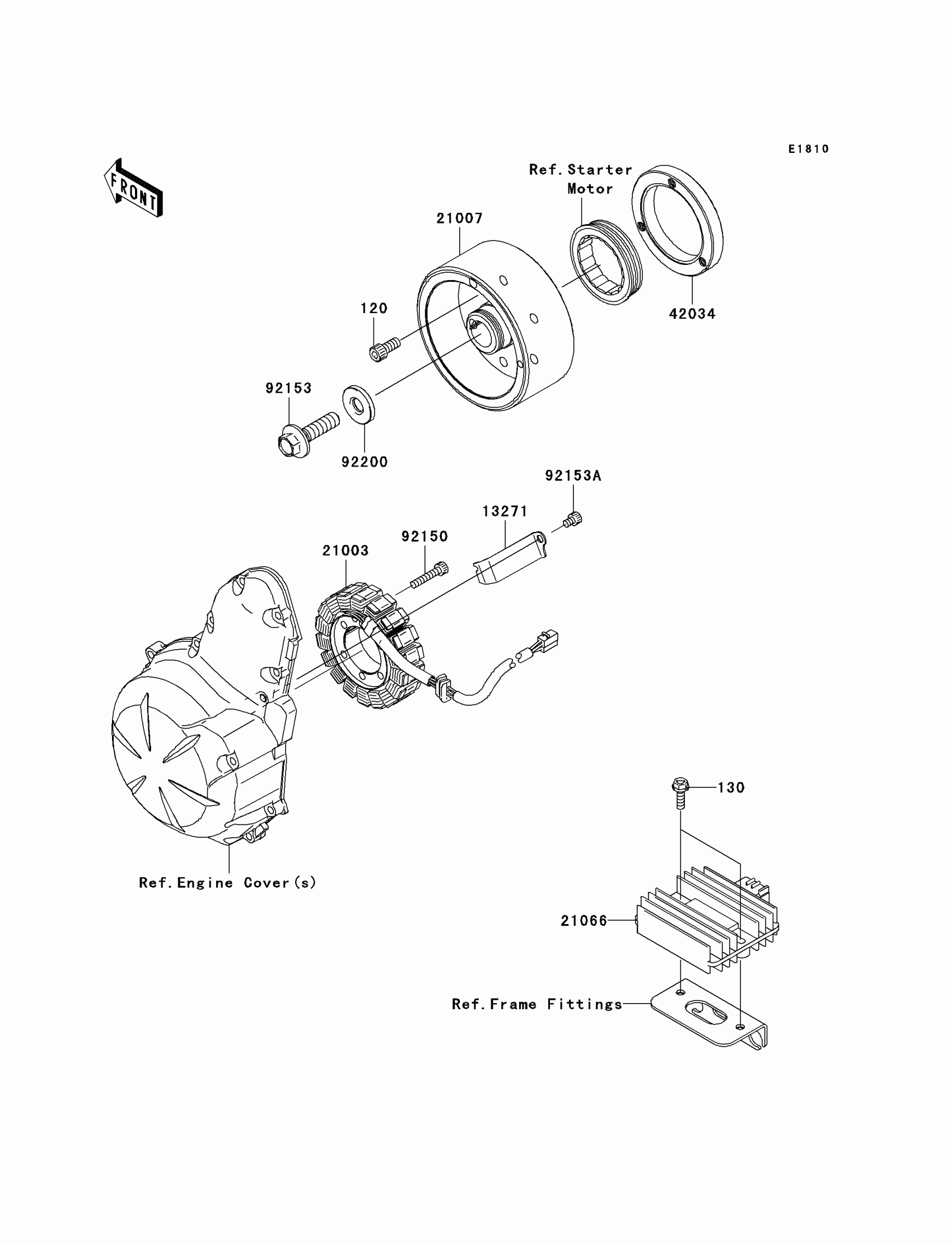

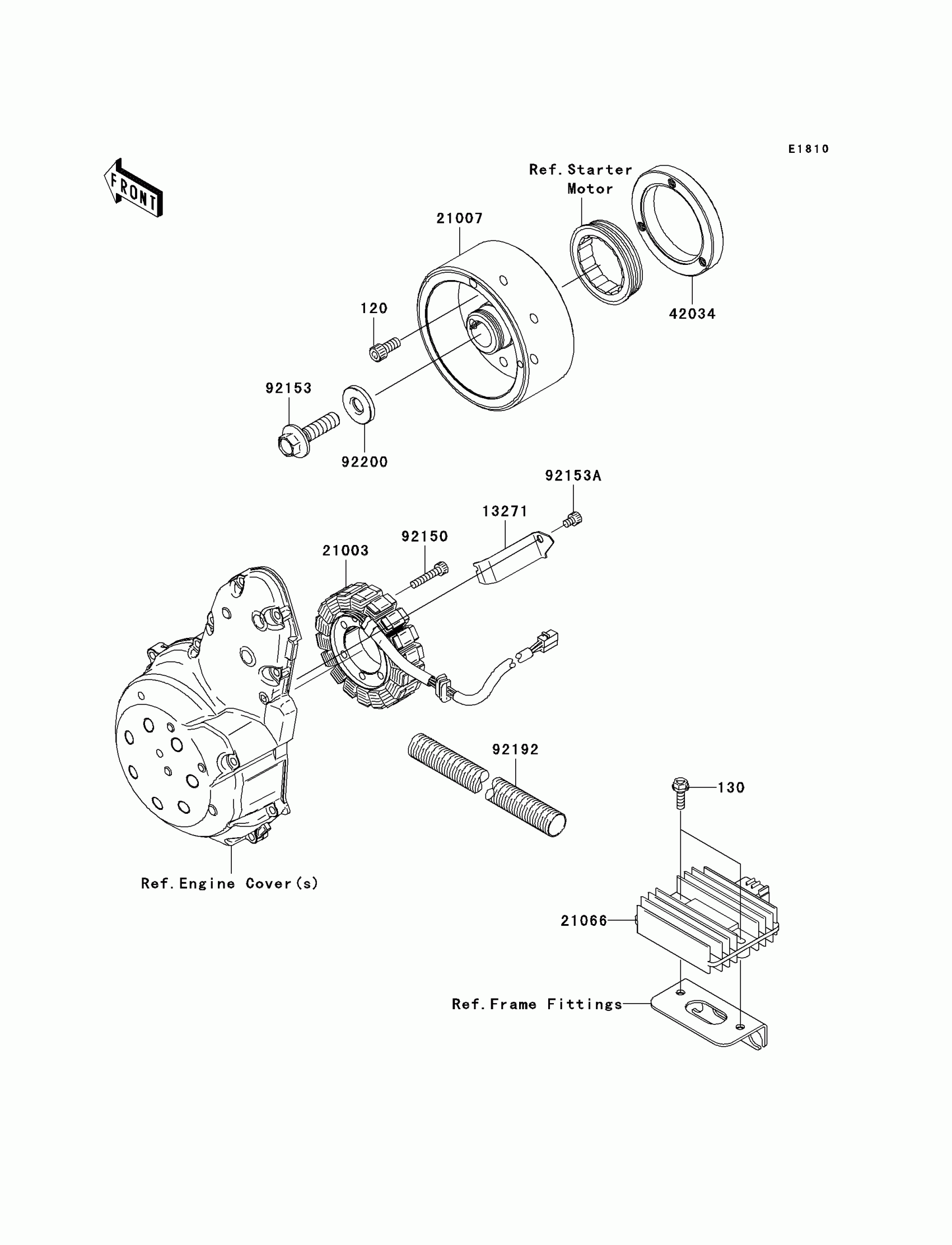

Kawasaki ER-6n (European) Generator Diagram

Description

Price

120

BOLT-SOCKET,8X18

120CA0818

$2.80

130

BOLT-FLANGED,6X20

130BB0620

$0.46

13271

PLATE

13271-0574

$7.75

21003

STATOR

21003-0041

$539.71

21007

ROTOR

21007-0075

Unavailable

21066

REGULATOR-VOLTAGE

21066-1127

Unavailable

42034

COUPLING

42034-1143

$121.16

92150

BOLT,SOCKET,6X30

92150-1433

$4.87

92153

BOLT,FLANGED,12X45

92153-0951

$5.92

92153A

BOLT,SOCKET,6X8

92153-1414

$1.78

92192

TUBE,CORRUGATED,L=175

92192-0315

$2.41

92200

WASHER,12X33X5

92200-0220

$7.75
