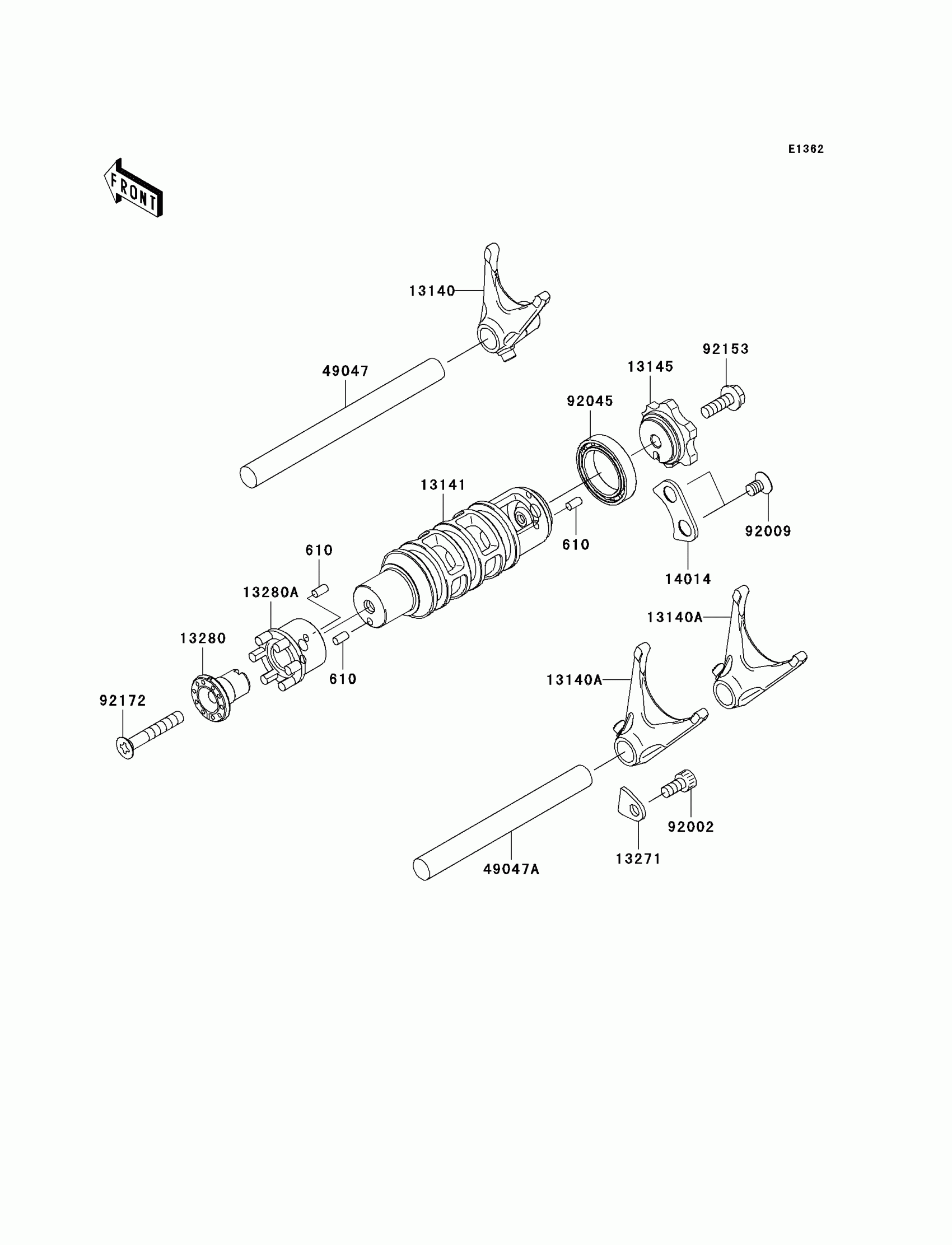

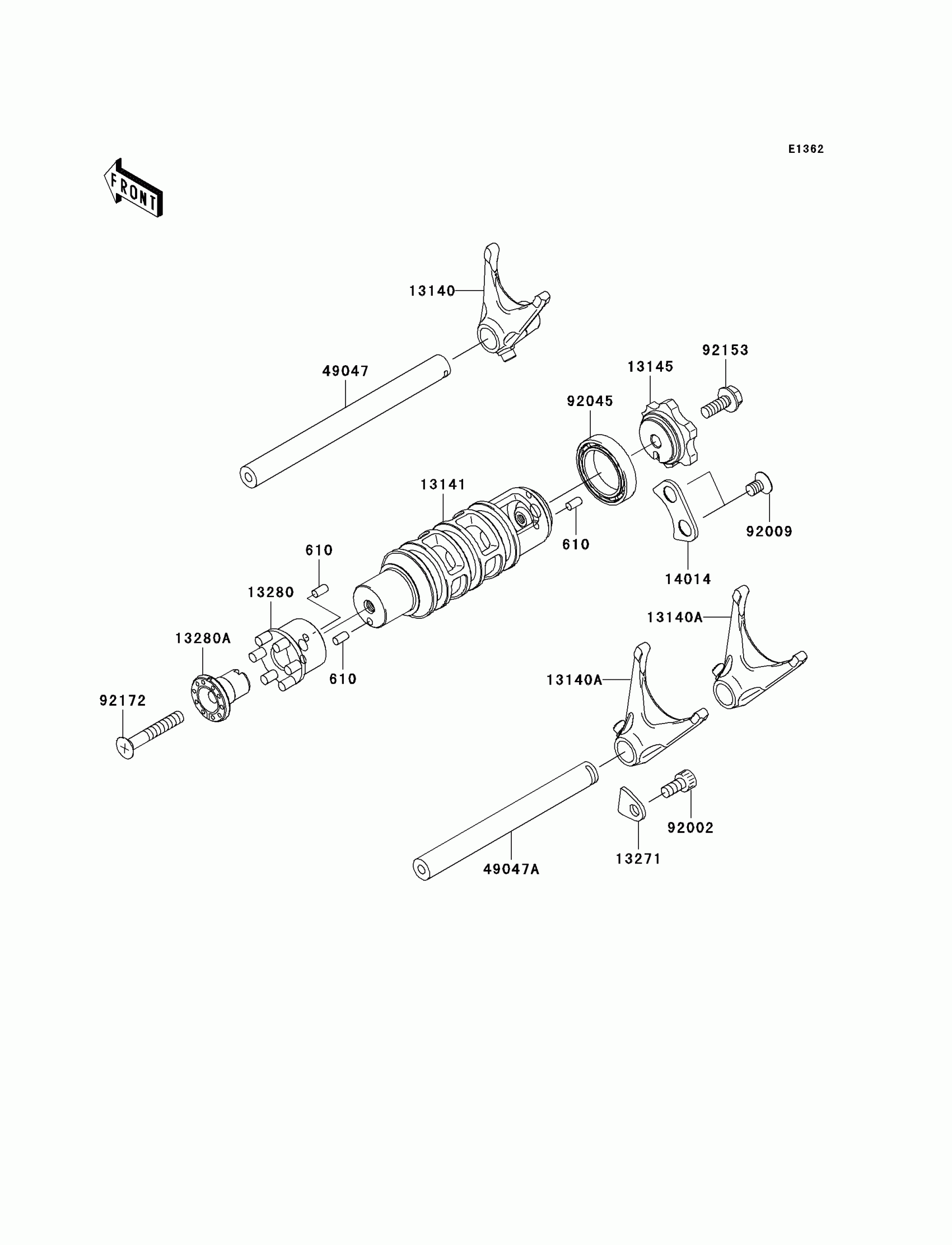

Kawasaki ER-6n (European) Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X8

610A0408

$4.31

13140

FORK-SHIFT,INPUT

13140-0025

$104.02

13140A

FORK-SHIFT,OUTPUT

13140-0026

$104.02

13141

DRUM-CHANGE

13141-0018

Unavailable

13145

CAM-CHANGE DRUM

13145-0020

$37.85

13271

PLATE

13271-0626

$3.39

13280

HOLDER

13280-0137

Unavailable

13280A

HOLDER,NEUTRAL SWITCH

13280-0178

Unavailable

14014

PLATE-POSITION

14014-0018

$5.65

49047

ROD-SHIFT,INPUT

49047-0019

$28.77

49047A

ROD-SHIFT,OUTPUT

49047-0020

$23.43

92002

BOLT,SOCKET,6X12

92002-1796

$4.69

92009

SCREW,6X10

92009-1375

$3.92

92045

BEARING-BALL,6805

92045-1122

$39.17

92153

BOLT,FLANGED,6X18

92153-0958

$2.61

92172

SCREW-CSK-CROS,6X40

92172-0209

$2.63
