Description

Price

130

BOLT-FLANGED,6X25

130BB0625

$2.80

702

TUBE-RUBBER,6X9X690

702A06690

$5.35

702A

TUBE-RUBBER

702A07100

$13.38

11053

BRACKET,SEAT

11053-1812

$6.36

11060

GASKET,FUEL GAUGE

11060-1952

$21.19

14069

BREATHER,FUEL TANK

14069-1004

$10.19

51049

CAP-TANK,FUEL

51049-0039

$136.23

51086D

TANK-COMP-FUEL,P.WHITE

51086-5375-G3

Unavailable

51086E

TANK-COMP-FUEL,M.F.S.GREEN

51086-5375-35A

Unavailable

51086H

TANK-COMP-FUEL,M.S.BLACK

51086-5378-15Z

Unavailable

52005

GAUGE,FUEL

52005-0076

$208.62

53044

TRIM,L=60

53044-1249

$6.57

92027

COLLAR,L=13.1

92027-251

Unavailable

92037

CLAMP,TUBE

92037-147

$7.34

92075

DAMPER

92075-015

$5.00

92075A

DAMPER,FUEL TANK

92075-125

$6.22

92075B

DAMPER,10X24X12

92075-1690

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,5X12

92151-1599

$1.91

92153

BOLT,SOCKET,5X16

92153-1616

$1.34

92170

CLAMP

92170-1925

$2.40

92171

CLAMP,8X0.7

92171-1973

$1.34

92192

TUBE,6X9X500

92192-0733

$3.95

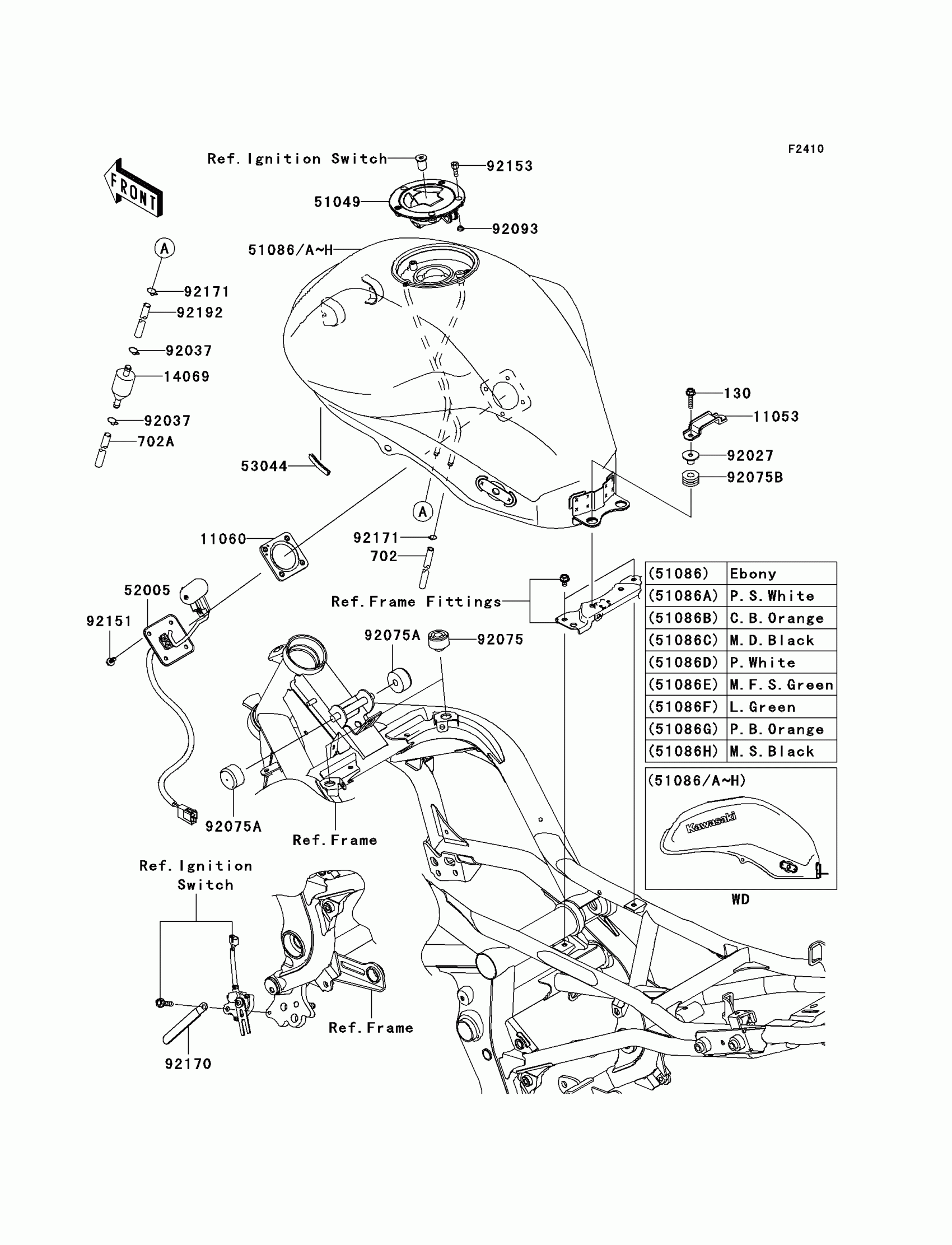

Kawasaki ER-6n (European) Fuel Tank Diagram

BOLT-FLANGED,6X25

TUBE-RUBBER,6X9X690

TUBE-RUBBER

BRACKET,SEAT

GASKET,FUEL GAUGE

BREATHER,FUEL TANK

CAP-TANK,FUEL

TANK-COMP-FUEL,P.WHITE

TANK-COMP-FUEL,M.F.S.GREEN

TANK-COMP-FUEL,M.S.BLACK

GAUGE,FUEL

TRIM,L=60

COLLAR,L=13.1

CLAMP,TUBE

DAMPER

DAMPER,FUEL TANK

DAMPER,10X24X12

SEAL,FUEL TANK CAP

BOLT,5X12

BOLT,SOCKET,5X16

CLAMP

CLAMP,8X0.7

TUBE,6X9X500
