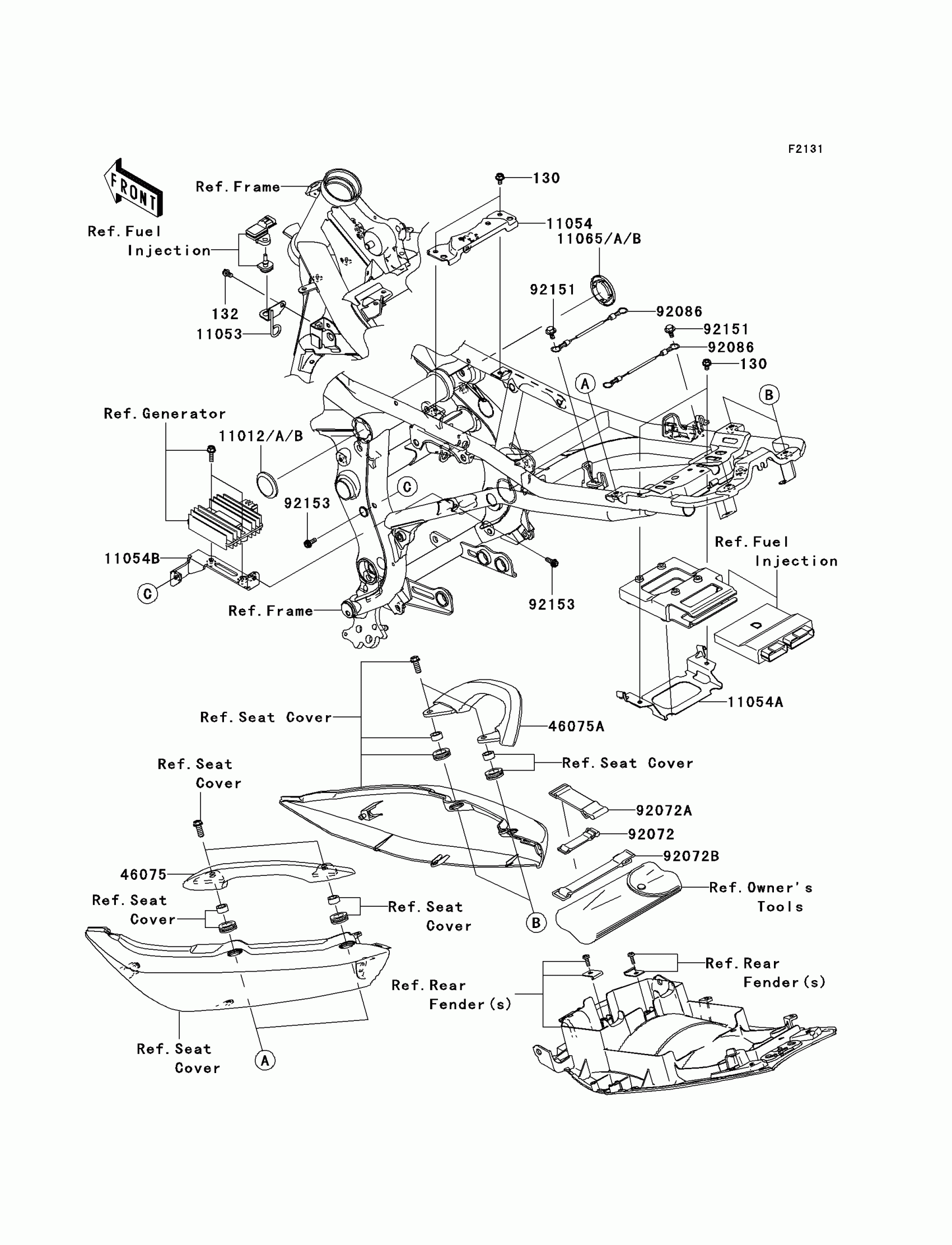

Kawasaki ER-6n (European) Frame Fittings(-JKAER650AAA035082) Diagram

Description

Price

130

BOLT-FLANGED,6X10

130L0610

$2.33

132

BOLT-FLANGED-SMALL,6X10

132L0610

$2.33

11012

CAP,CROSS PIPE,M.BRONZE

11012-1717-10M

Unavailable

11012A

CAP,CROSS PIPE,P.RED

11012-1717-10N

$8.58

11053

BRACKET,BOOST SENSOR

11053-1931

$9.71

11054

BRACKET,FUEL TANK

11054-0248

$23.07

11054A

BRACKET,ECU

11054-0347

$17.12

11054B

BRACKET,REGULATOR

11054-0523

$30.31

11065

CAP,FRAME,M.BRONZE

11065-0125-10M

Unavailable

11065A

CAP,FRAME,P.RED

11065-0125-10N

$8.58

46075

GRIP,LH

46075-0033

$98.97

46075A

GRIP,RH

46075-0034

Unavailable

92072

BAND

92072-1085

$18.15

92072A

BAND,TOOL

92072-1176

$15.60

92072B

BAND,L=150

92072-1203

$14.23

92086

WIRE,L=150

92086-1075

Unavailable

92151

BOLT,FLANGED,6X13

92151-1703

$3.94

92153

BOLT,SOCKET,6X16

92153-1517

$2.61
