Description

Price

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.73

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.34

600

BALL-STEEL,1/4

600A0800

$0.62

14091A

COVER,PIVOT,LH,S.F.C.GRAY

14091-0461-837

$36.91

14091C

COVER,PIVOT,RH,S.F.C.GRAY

14091-0789-837

$36.91

32085

STOPPER,REAR STEP

32085-0047

$5.57

34028

STEP,RR,LH

34028-0004

$72.01

34028A

STEP,RR,RH

34028-0005

$72.01

34028B

STEP,FR,LH

34028-0059

$91.06

34028C

STEP,FR,RH

34028-0060

$91.06

35063B

STAY,STEP,LH,M.SILVER

35063-0285-735

$173.19

35063E

STAY,STEP,RH,M.SILVER

35063-0286-735

$173.19

92002

BOLT,BANK SENSOR

92002-1995

$14.23

92043

PIN,12X36.5

92043-0028

$8.86

92043A

PIN,6X40

92043-1595

$2.34

92075

DAMPER

92075-1067

$4.69

92144

SPRING,STEP RETURN

92144-1567

$6.51

92144A

SPRING,STEP RETURN

92144-1568

$6.51

92145

SPRING

92145-1319

$1.81

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92153

BOLT,SOCKET,8X30

92153-1630

$2.61

92200

WASHER,16X26X2.3

92200-0043

$7.65

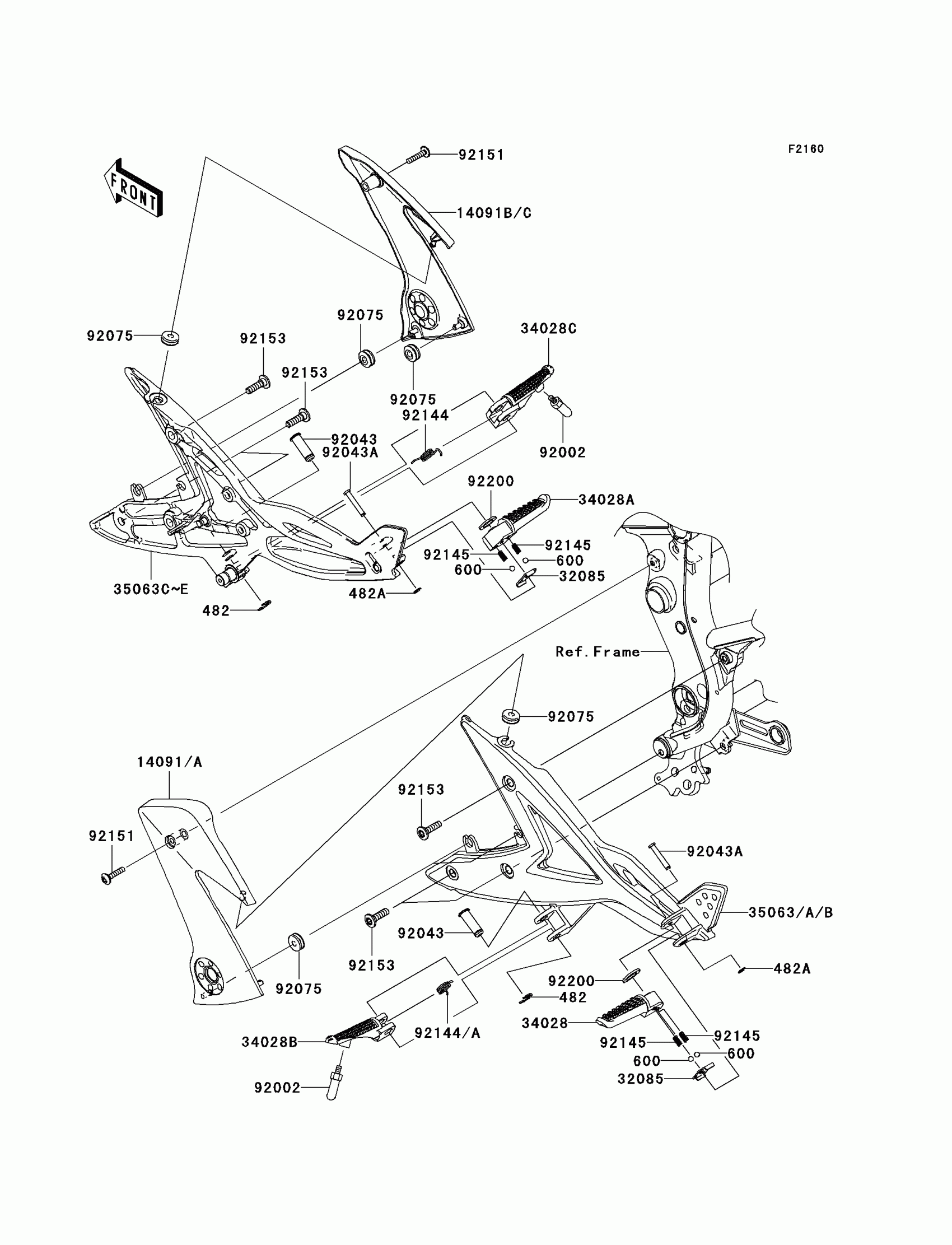

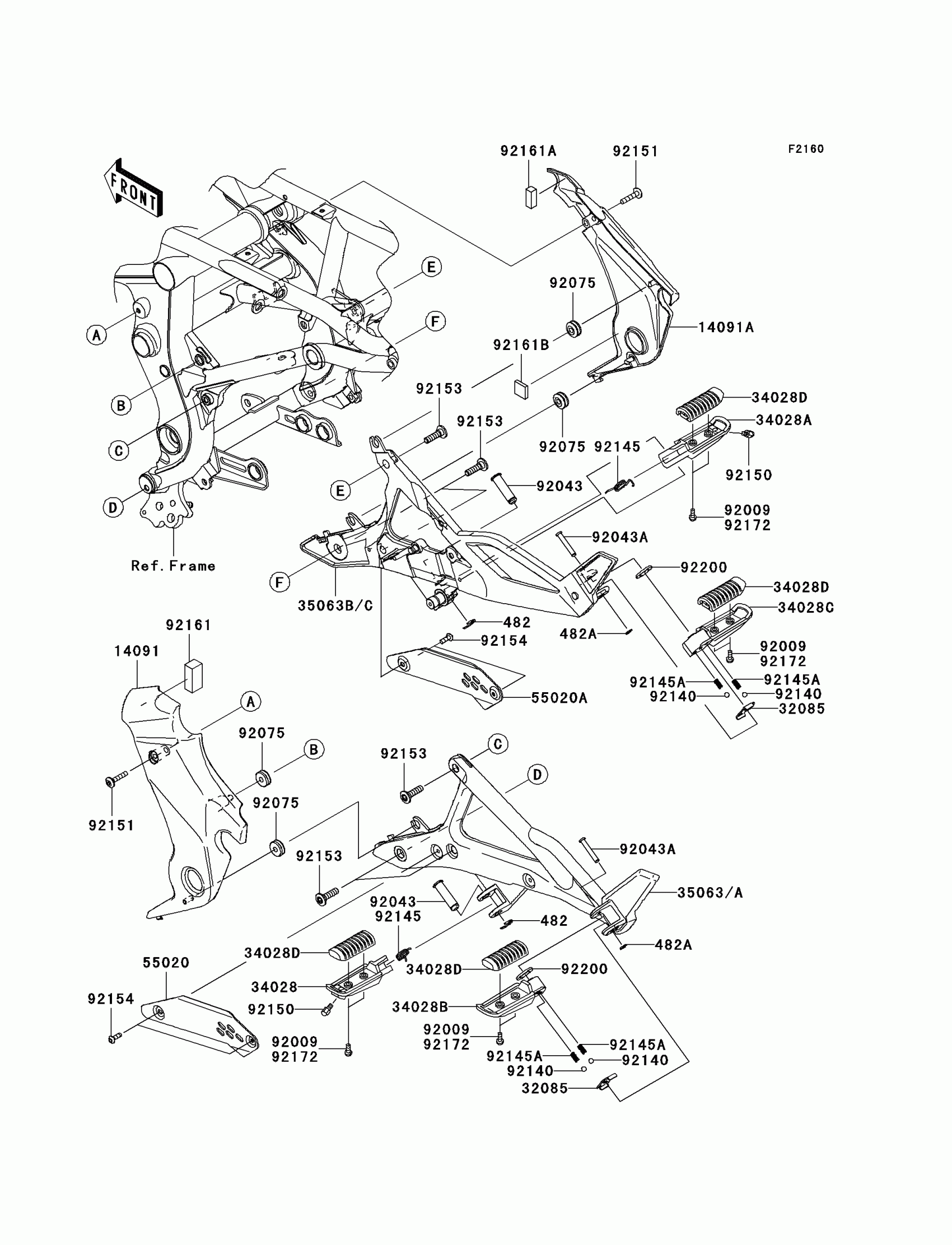

Kawasaki ER-6n (European) Footrests Diagram

CIRCLIP-TYPE-E,10MM

CIRCLIP-TYPE-E,5MM

BALL-STEEL,1/4

COVER,PIVOT,LH,S.F.C.GRAY

COVER,PIVOT,RH,S.F.C.GRAY

STOPPER,REAR STEP

STEP,RR,LH

STEP,RR,RH

STEP,FR,LH

STEP,FR,RH

STAY,STEP,LH,M.SILVER

STAY,STEP,RH,M.SILVER

BOLT,BANK SENSOR

PIN,12X36.5

PIN,6X40

DAMPER

SPRING,STEP RETURN

SPRING,STEP RETURN

SPRING

BOLT,SOCKET,6X30

BOLT,SOCKET,8X30

WASHER,16X26X2.3
