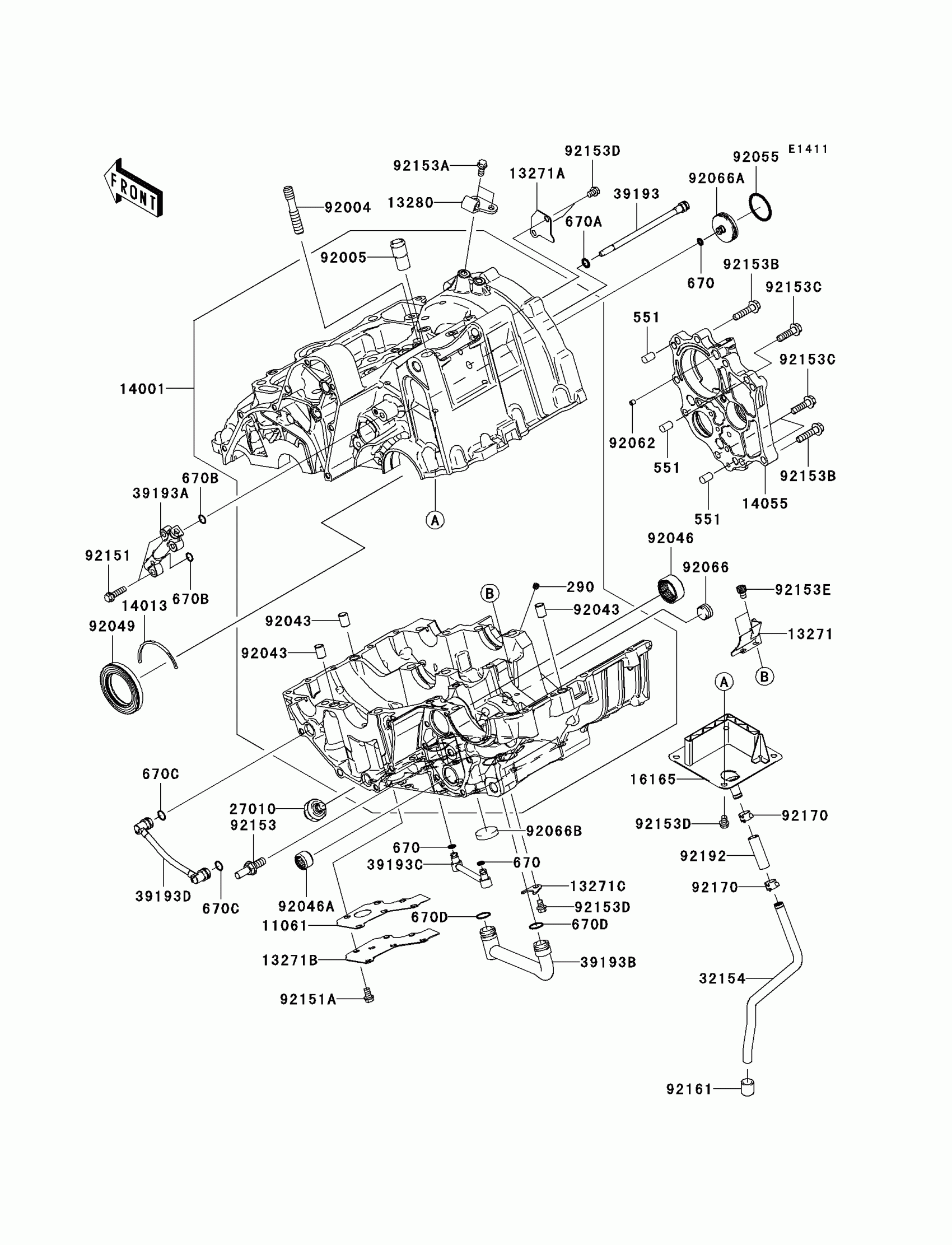

Kawasaki ER-6n (European) Crankcase(-ER650AE057323) Diagram

#

Description
Price

290

SCREW-SET-SOCKET,6X6

290Q0606

$6.34

11061

GASKET

11061-0182

$7.14

13271

PLATE,OIL SHIELDING

13271-0575

$20.37

13271A

PLATE

13271-0577

$2.61

13271B

PLATE

13271-0584

$4.65

13271C

PLATE,OIL PIPE

13271-1187

$2.67

13280

HOLDER,CLUTCH CABLE

13280-0171

$9.62

14001

SET-CRANKCASE

14001-0080

Unavailable

14013

RING-POSITION,T=1.98

14013-1004

$4.96

14055

CASE-GEAR

14055-0018

$120.55

16165

SEPARATOR,BREATHER

16165-0001

$61.36

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

32154

PIPE,BREATHER

32154-0661

$14.42

39193

PIPE-OIL

39193-0029

$30.76

39193A

PIPE-OIL

39193-0030

$74.86

39193B

PIPE-OIL

39193-0031

$49.63

39193C

PIPE-OIL

39193-0032

$27.54

39193D

PIPE-OIL

39193-0033

$49.63

92004

STUD,10X34.5

92004-0024

$8.60

92005

FITTING,BREATHER

92005-1238

$11.29

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92046

BEARING-NEEDLE,24BTM3013

92046-0017

$14.01

92046A

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92049

SEAL-OIL,HTC40628

92049-1501

$10.16

92055

RING-O,29.7X2.4

92055-0006

$6.18

92062

NOZZLE,5X6,SILVER

92062-1086

$4.13

92066

PLUG,PT3/8X10

92066-0003

$3.31

92066A

PLUG,INPUT SHAFT

92066-0056

Unavailable

92066B

PLUG,25X5

92066-0061

$5.60

92151

BOLT,FLANGED-SMALL,6X22

92151-1197

$5.59

92151A

BOLT,FLANGED-SMALL,6X10

92151-1389

$2.34

92153

BOLT,8X20

92153-0530

$6.18

92153A

BOLT,6X14

92153-0542

$3.74

92153B

BOLT,FLANGED,6X30

92153-0962

$3.39

92153C

BOLT,FLANGED,7X26

92153-0963

$3.39

92153D

BOLT,FLANGED-SMALL,6X8

92153-0964

$2.24

92153E

BOLT,SOCKET,6X8

92153-1414

$1.78

92161

DAMPER

92161-0267

$3.90

92170

CLAMP

92170-1167

$6.21

92192

TUBE,9X12X38

92192-0225

$3.87

551

PIN-DOWEL,8X14

551A0814

$1.19

670

O RING

670D1505

$4.31

670A

O RING,8MM

670D1508

$4.31

670B

O RING,9MM

670D1509

$4.69

670C

O RING,10MM

670D1510

$4.69

670D

O RING,14MM

670D2014

$5.52
