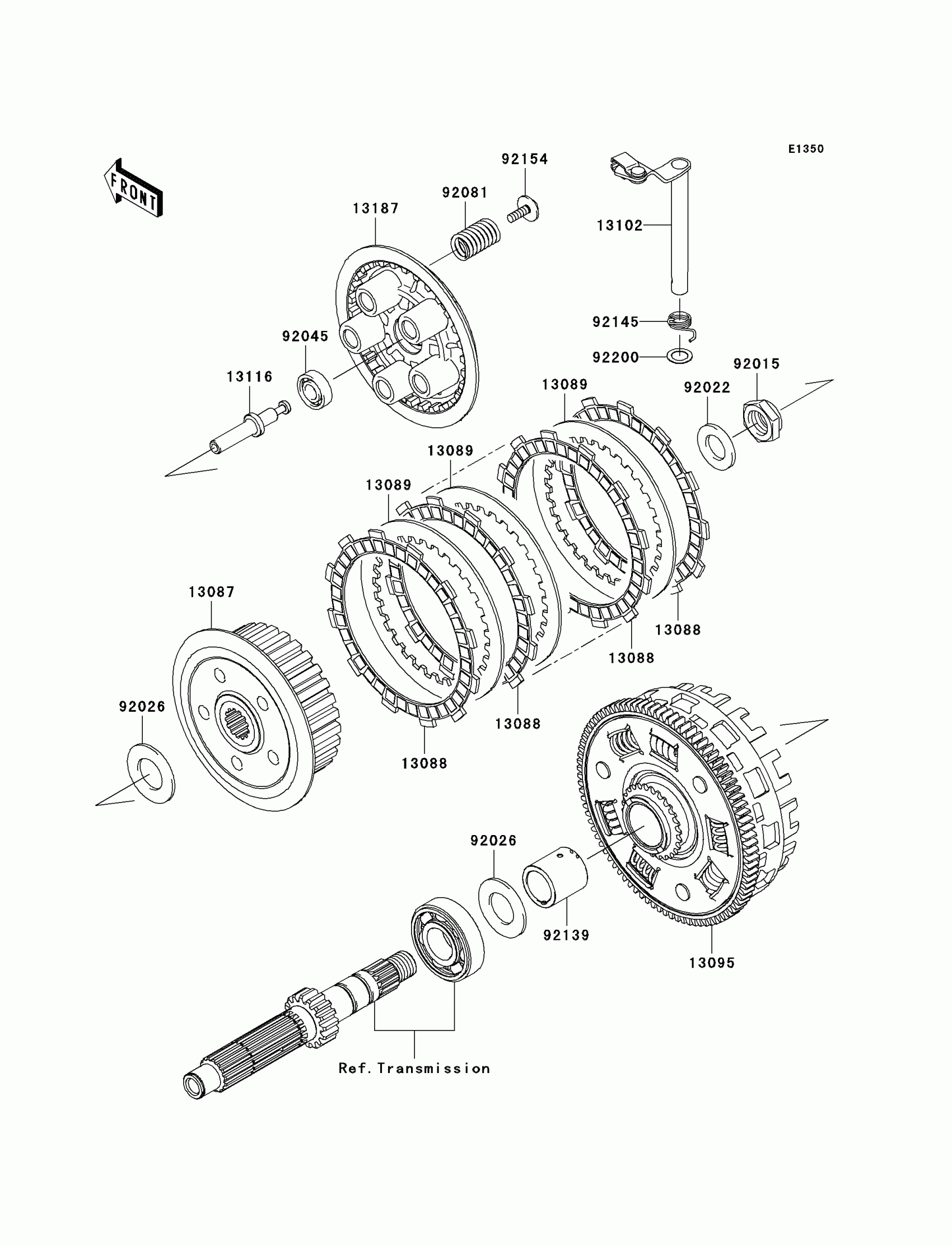

Kawasaki ER-6n (European) Clutch Diagram

Description

Price

13087

HUB-CLUTCH

13087-0046

$146.22

13088

PLATE-FRICTION

13088-1105

$15.50

13089

PLATE-CLUTCH,T=2.3

13089-0016

$12.75

13095

HOUSING-COMP-CLUTCH

13095-0115

$434.97

13102

RELEASE-COMP-CLUTCH

13102-0037

$45.06

13116

ROD-PUSH

13116-0035

$22.01

13187

PLATE-CLUTCH OPERATING

13187-0017

$80.58

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X3.7

92022-1868

$9.51

92026

SPACER,25.5X47X2.5

92026-022

$9.91

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92081

SPRING,CLUTCH

92081-1033

$7.38

92139

BUSHING

92139-0106

$36.74

92145

SPRING,CLUTCH RELEASE

92145-0066

$7.56

92154

BOLT,UPSET-WP,6X20

92154-0079

$5.54

92200

WASHER,12X18.5X0.5

92200-1487

$2.75
