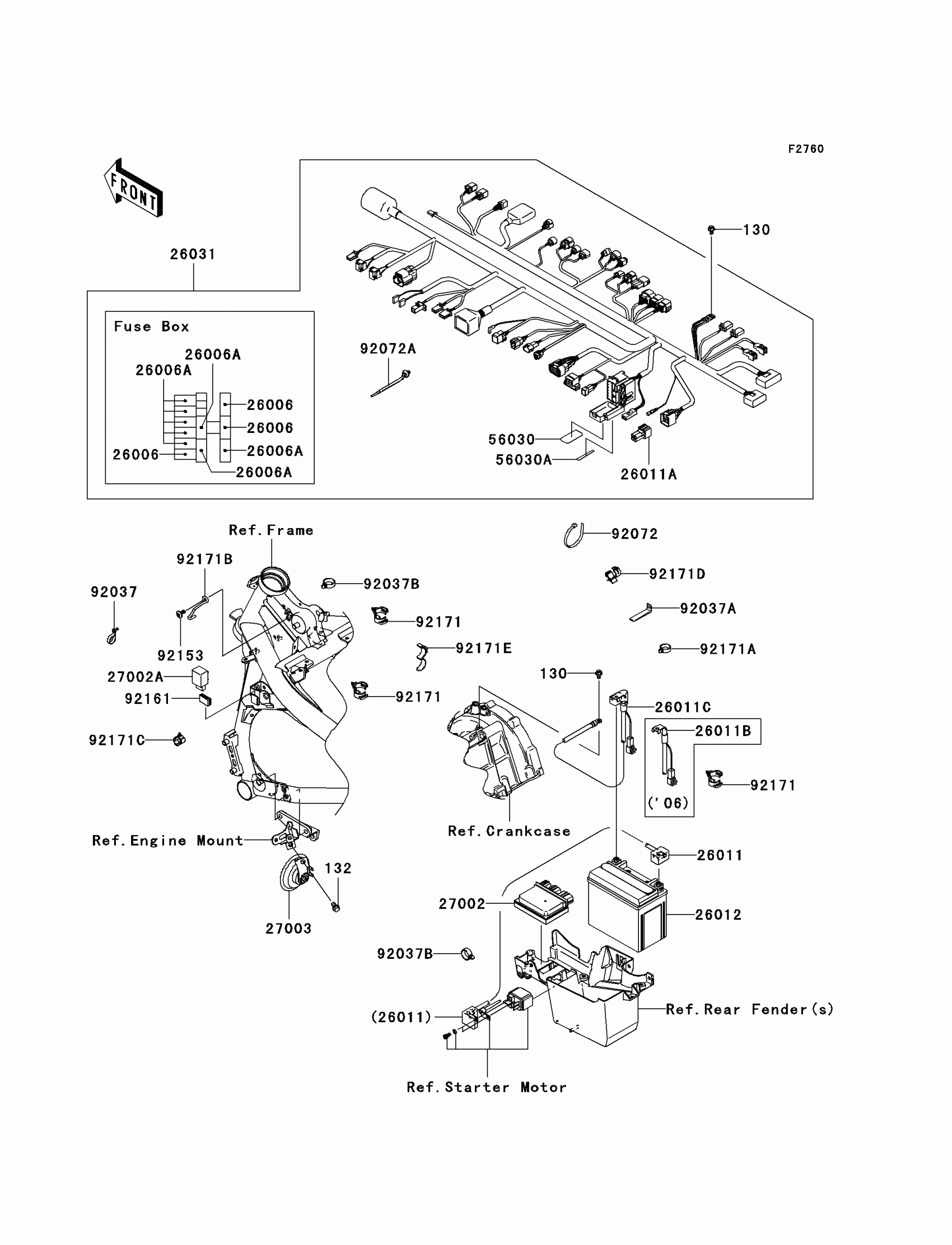

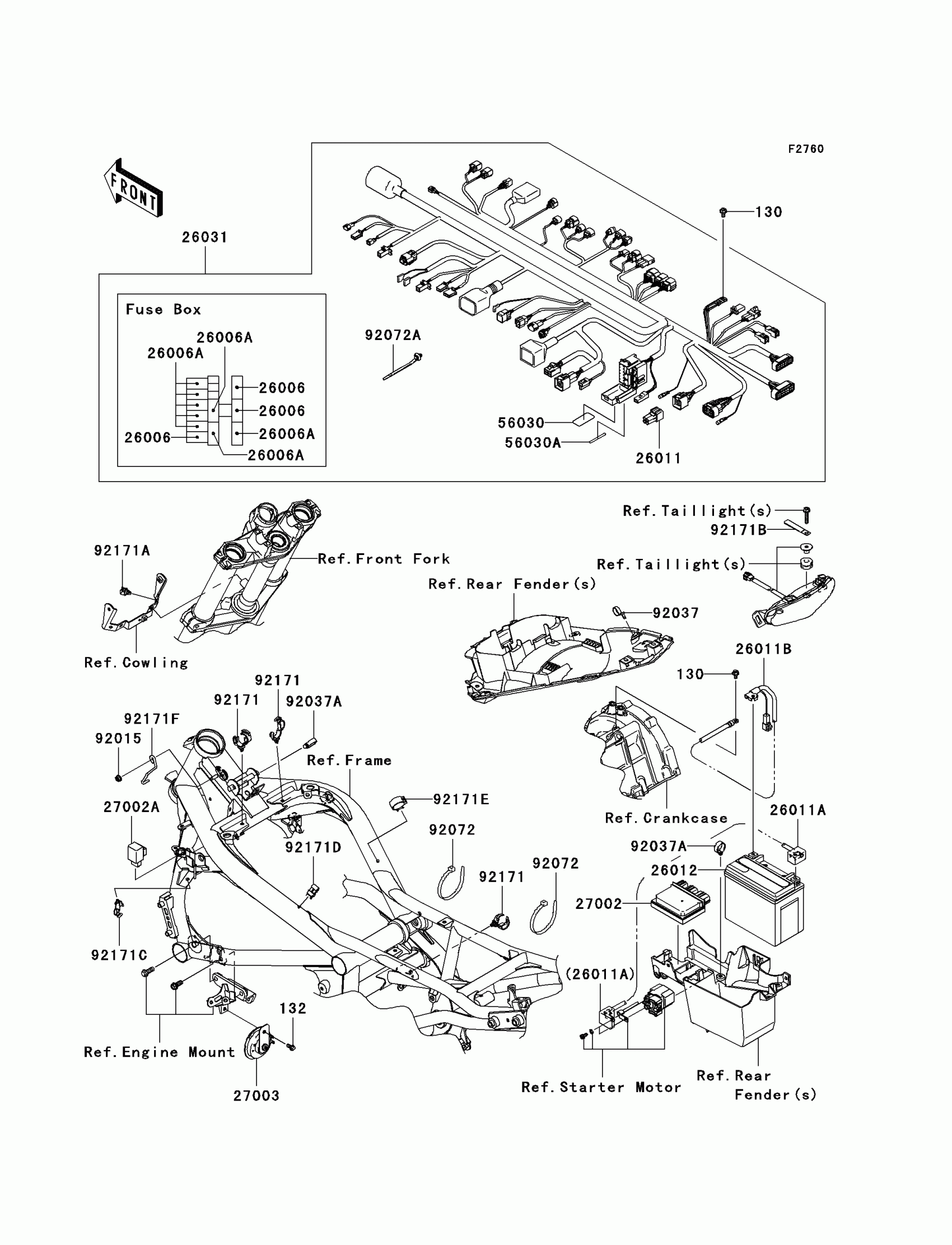

Kawasaki ER-6n (European) Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X10

130BA0610

$1.20

132

BOLT-FLANGED-SMALL,8X12

132BB0812

$1.81

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,BATTERY(+)

26011-0073

$38.90

26011A

WIRE-LEAD

26011-0082

$25.00

26011B

WIRE-LEAD,BATTERY(-)

26011-0096

Unavailable

26012

BATTERY,YTX12-BS,12V 10AH

26012-0094

Unavailable

26031

HARNESS,MAIN

26031-0400

$707.49

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY,TURN SIGNAL

27002-0010

$74.45

27003

HORN

27003-0051

Unavailable

56030

LABEL,FUSE BOX

56030-0046

$5.87

56030A

LABEL,FUSE BOX

56030-0098

$4.05

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,HARNESS

92037-1316

$2.61

92037B

CLAMP,HOSE

92037-1827

$7.45

92072

BAND,L=365

92072-1197

$7.84

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92153

BOLT,SOCKET,6X14

92153-1446

$2.15

92161

DAMPER,SIGNAL RELAY

92161-0283

$2.97

92171

CLAMP,20MM DIA.

92171-0069

$2.80

92171A

CLAMP

92171-0640

$3.90

92171B

CLAMP,HARNESS

92171-0657

$8.12

92171C

CLAMP,13MM DIA.

92171-1415

$2.03

92171D

CLAMP,DIA=15

92171-1424

$4.18

92171E

CLAMP,25MM DIA.

92171-1559

$6.18
