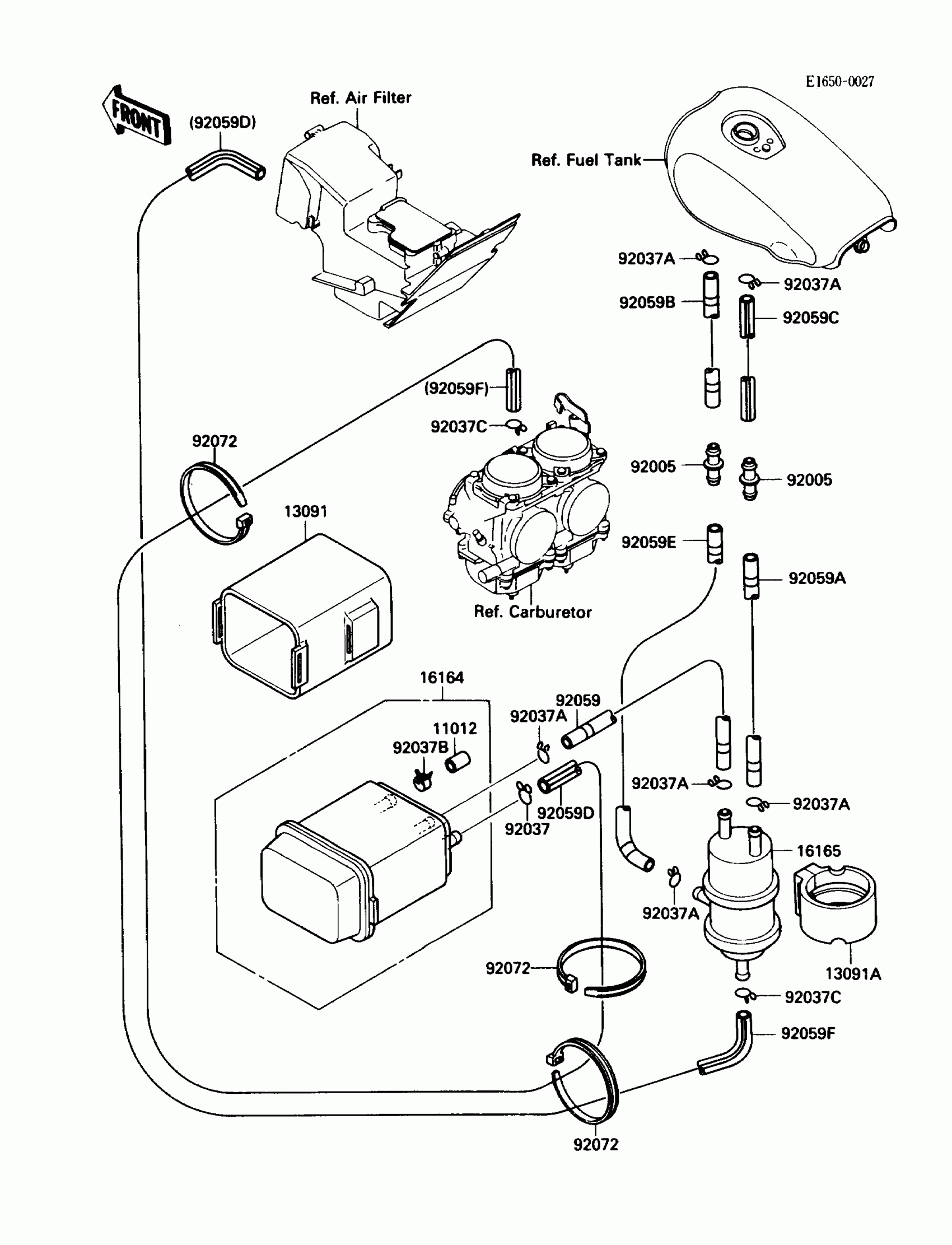

Kawasaki Eliminator Fuel Evaporative System Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.51

13091

HOLDER,CANISTER

13091-1176

$71.75

13091A

HOLDER

13091-1509

Unavailable

16164

CANISTER

16164-1054

$130.07

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING

92005-1167

Unavailable

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-147

$7.34

92037B

CLAMP,CANISTER

92037-1512

$6.57

92037C

CLAMP

92037-1712

$5.00

92059

TUBE,5X10X170,BLUE

92059-1496

$23.01

92059A

TUBE,5X10X230,BLUE

92059-1498

$23.01

92059B

TUBE,5X10X430,RED

92059-1501

$23.01

92059C

TUBE,5X10X430,BLUE

92059-1711

$23.01

92059D

TUBE,7X12X830,GREEN

92059-1806

$24.91

92059E

TUBE,5X10X320,RED

92059-1857

Unavailable

92059F

TUBE,4X9X920,WHITE

92059-1925

$10.81

92072

BAND,L=202

92072-1195

$1.56
