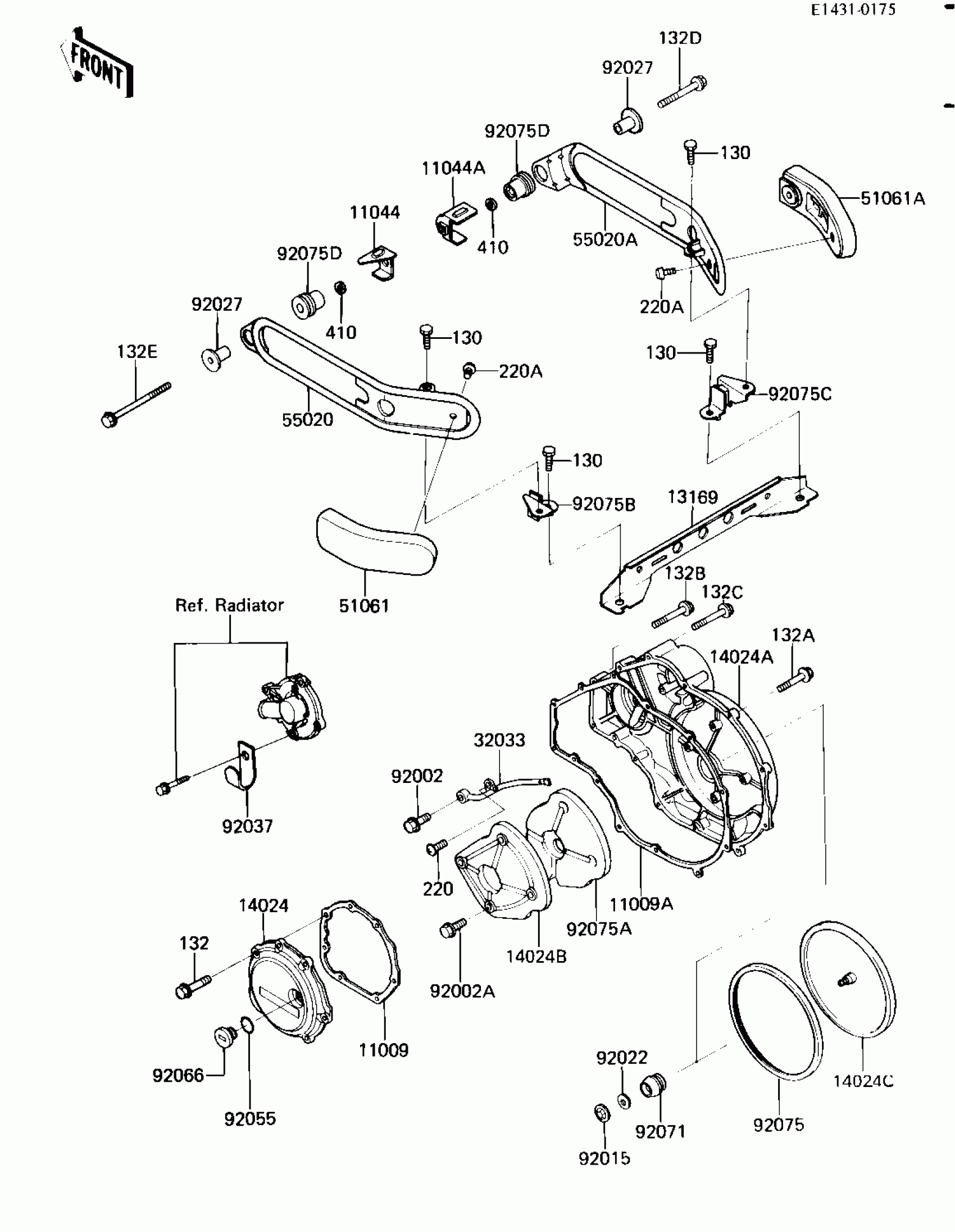

Kawasaki Eliminator ENGINE COVERS/GUARDS Diagram

#

Description
Price

11009

GASKET,COVER,LH

11009-1863

Unavailable

11009A

GASKET,CLUTCH COVER

11009-1860

Unavailable

11044

BRACKET,LH

11044-1291

Unavailable

11044A

BRACKET,RH

11044-1292

Unavailable

13169

PLATE,GUARD

13169-1956

Unavailable

14024

COVER,LH

14024-1066

$134.15

14024A

COVER,CLUTCH

14024-1067

$344.46

14024B

COVER,SOUND ARRESTER

14025-1740

Unavailable

14024C

COVER,CLUTCH COVER

14025-1814

Unavailable

32033

PIPE,CLUTCH COVER

32033-1204

$30.63

51061

PAD-KNEE,LH

51061-1051

Unavailable

51061A

PAD-KNEE,RH

51061-1052

Unavailable

55020

GUARD,LH

55020-1201

$79.82

55020A

GUARD,RH

55020-1202

Unavailable

92002

BOLT,BANJO,8X20

92001-1855

Unavailable

92002A

BOLT,6X10

92002-1449

$4.11

92015

NUT,SPEED,5MM

92018-004

$4.39

92022

WASHER,5.5X20X1.2

92022-104

$4.31

92027

COLLAR

92027-1956

$9.13

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92055

RING-O,20X2

92055-1146

$8.58

92066

PLUG,COVER,LH

92066-1218

$14.76

92071

GROMMET,CLUTCH COVER

92071-1108

$6.10

92075

DAMPER,CLUTCH COVER

92075-1594

$28.64

92075A

DAMPER,SOUND ARRESTER

92075-1708

$135.93

92075B

DAMPER

92075-1756

Unavailable

92075C

DAMPER

92075-1757

Unavailable

92075D

DAMPER

92075-1779

Unavailable

130

BOLT-FLANGED

130J0610

$2.33

132

BOLT-FLANGED-SMALL,6X20

132J0620

$3.64

132A

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

132B

BOLT-FLANGED-SMALL,6X40

132J0640

$4.44

132C

BOLT-FLANGED-SMALL,6X55

132J0655

$4.44

132D

BOLT-FLANGED-SMALL,8X60

132J0860

$4.44

132E

BOLT-FLANGED-SMALL

132J0890

$7.20

220

UNAVAILABLE IN PRICE BOOK

220B0910

Unavailable

220A

SCREW-PAN-CROS,6X8

220C0608

$1.81

410

WASHER PLAIN 8MM

410B0800

$0.93
