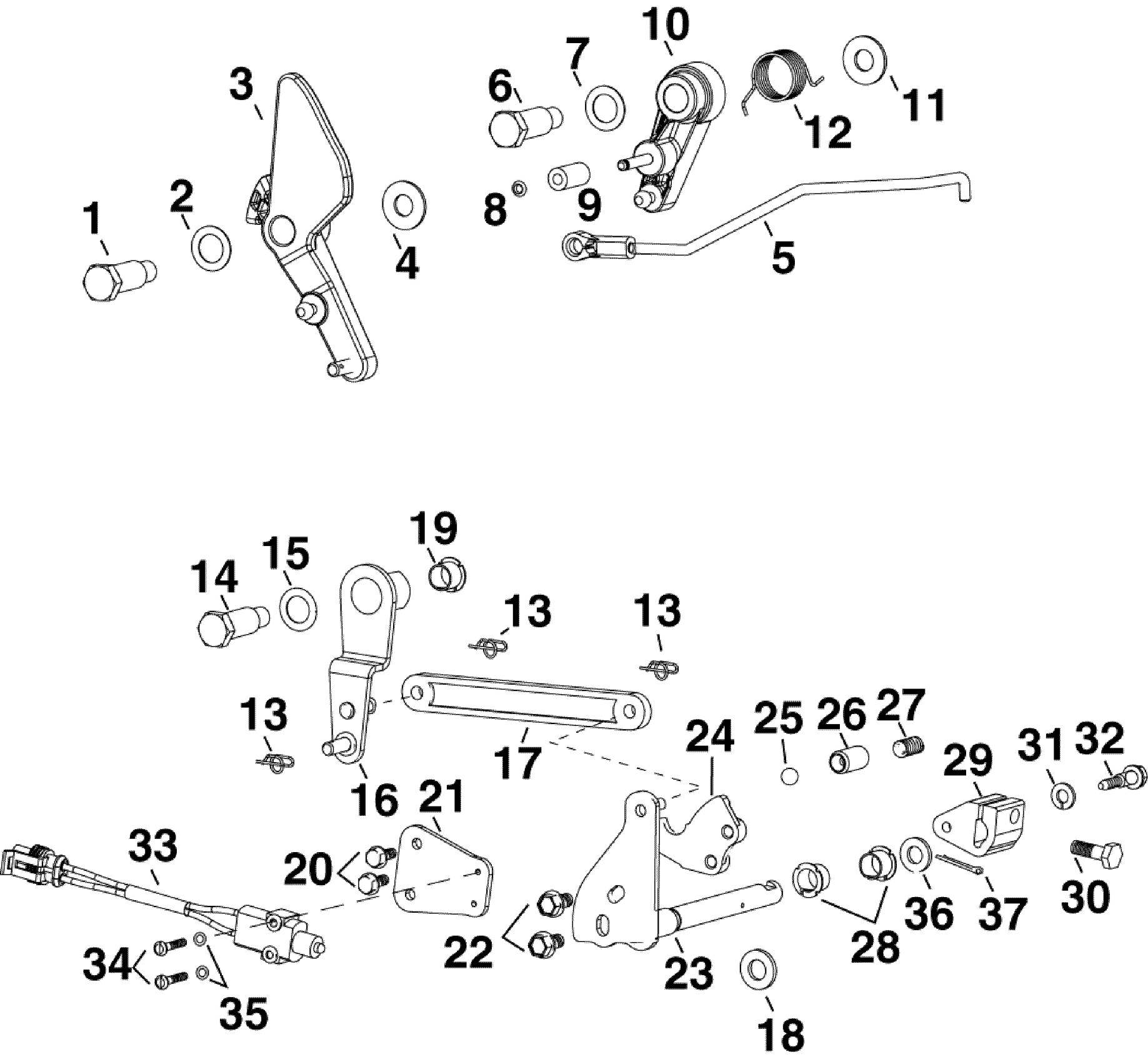

Evinrude E55MRLINB THROTTLE & SHIFT LINKAGE Diagram

#

Description
Price

1

SCREW, Cam to C/C

0347338

$18.35

2

**BOW WASHER

0553766

$7.95

3

THROTTLE CAM | DP, DR, DS, DT Models

5005239

$24.98

4

WASHER

0908398

$7.67

5

LINK, Cam to shaft-TPS

5005625

$26.00

6

SCREW, Cam to C/C

0347338

$18.35

7

**RONDELLE

0127386

$4.26

8

***O-RING, Valve core, lower

0324678

$5.67

9

GALET, contre-came

0432639

$11.49

10

THROTTLE LEVER

5005187

$23.96

11

WASHER

0908398

$7.67

12

SPRING, Throttle lever return

0353036

$7.37

13

**ATTACHE, commande vers tringlerie de sens de marche

0333774

$9.65

14

SCREW, Shift arm to C/C

0350895

$14.27

15

**BOW WASHER

0553766

$7.95

16

LEVER, Shift

5006419

$78.02

17

LINK, Shift lever to shift arm

0331224

$11.72

18

*WASHER

0330265

$6.23

19

*BUSHING, Shoulder screw

0315081

$11.72

20

*SCREW, Air temperature sensor

0332226

$9.65

21

BRACKET, Neutral switch

0350611

$18.35

22

***SCREW

0328724

$14.27

23

LEVER & SHAFT Assembly, Shift

5005238

$66.80

24

DETENT SHIFT LEVER

0340955

$43.85

25

. . BALL, Valve shift

0315164

$16.31

26

GUIDE

0334241

$9.65

27

SCREW, Lever to shift rod

0334338

$9.65

28

BUSHING

0312708

$7.95

29

LEVER, Shift shaft to rod

0350614

$41.30

30

CLAMP, Engine cable

0328695

$9.65

31

**WASHER

0302290

$1.40

32

PIN, Shift lever

0327590

$14.27

33

*INTERRUPTEUR, point mort | All models

0586780

$46.99

34

*SCREW, Neutral start

0334192

$8.00

35

*WASHER

0303851

$7.95

36

*WASHER, Rod

0202026

$9.65

37

COTTER PIN

0330145

$0.66
