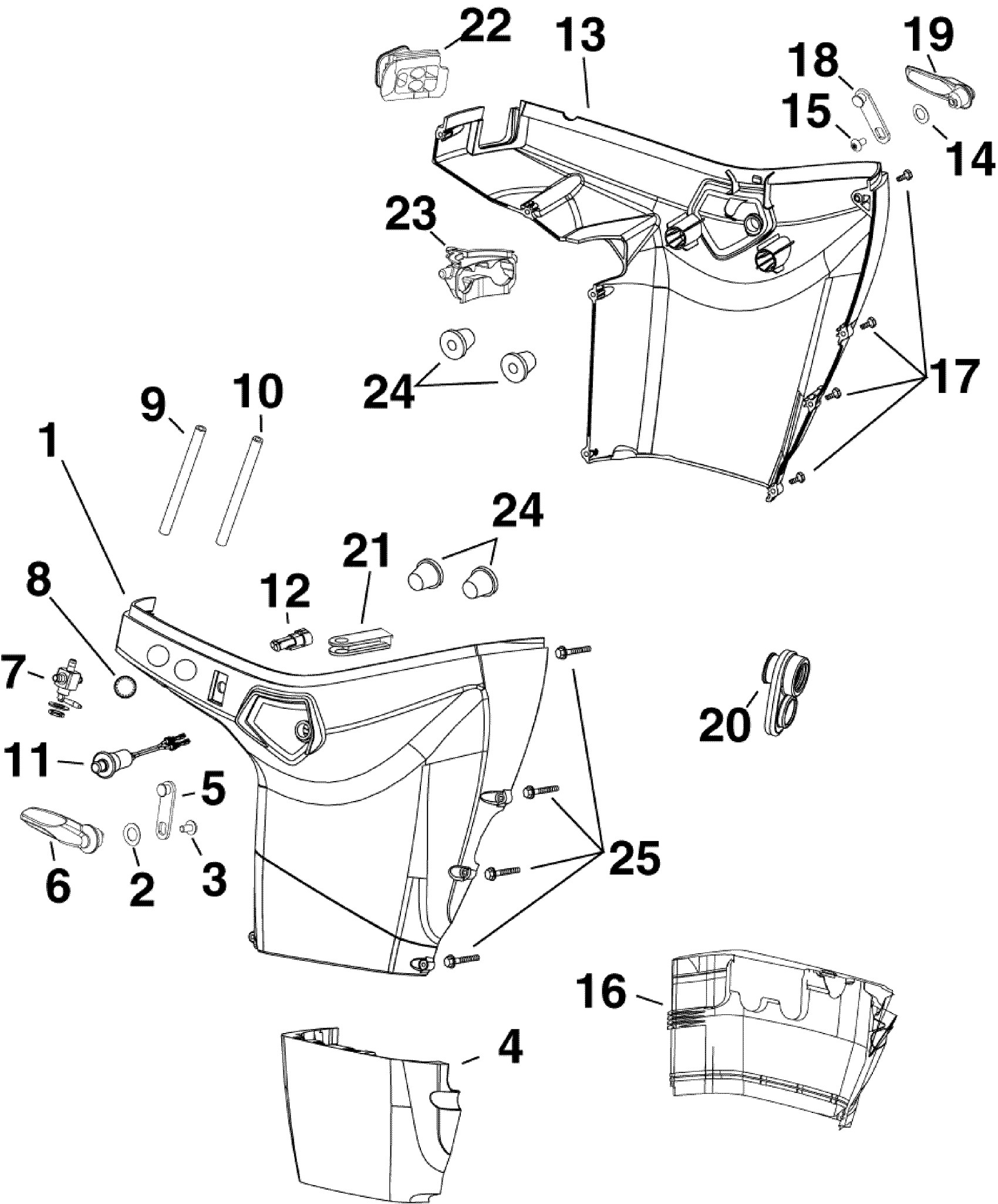

Evinrude E55MRLINB LOWER ENGINE COVER Diagram

#

Description
Price

1

LOWER COVER ASSEMBLY, Port

5008115

$1,218.38

2

*BOW WASHER

0330234

$9.65

3

*SCREW, Cam

0342191

$9.65

4

*INSULATION, Sound-Port

0351837

$84.65

5

*LATCH

5005290

$30.08

6

*LATCH HANDLE

5007009

$83.63

7

*VALVE, De-watering

5009240

$64.25

8

*RETAINING RING, Water valve

0349889

$14.27

9

*HOSE, De-Watering - Front

0362094

$6.24

10

*HOSE, De-Watering - Front

0362094

$6.24

NS

** TIE STRAP

0320107

$0.32

11

*SWITCH ASSEMBLY, Multi-fuel

5006330

$186.14

12

**CONNECTEUR, fiche 2 positions

3011153

$7.95

13

LOWER COVER ASSEMBLY, Starboard

5006333

$1,322.93

14

*BOW WASHER

0330234

$9.65

15

*SCREW, Cam

0342191

$9.65

16

*INSULATION, Sound - Starboard

0351838

$78.53

17

*INSERT, Nut

0353002

$13.25

18

*LATCH

5005290

$30.08

19

*LATCH HANDLE

5007009

$83.63

20

GROMMET

0354162

$48.44

21

Grommet, Plug - Trim lead hole | DR Models

0331896

$21.41

22

*GROMMET, Cable | Tiller Models

0351376

$31.61

23

GROMMET, Steering arm

0350501

$36.20

24

MOUNT, Lower cover

0352815

$11.72

25

SCREW, Port cover to starboard cover

0351152

$1.15
