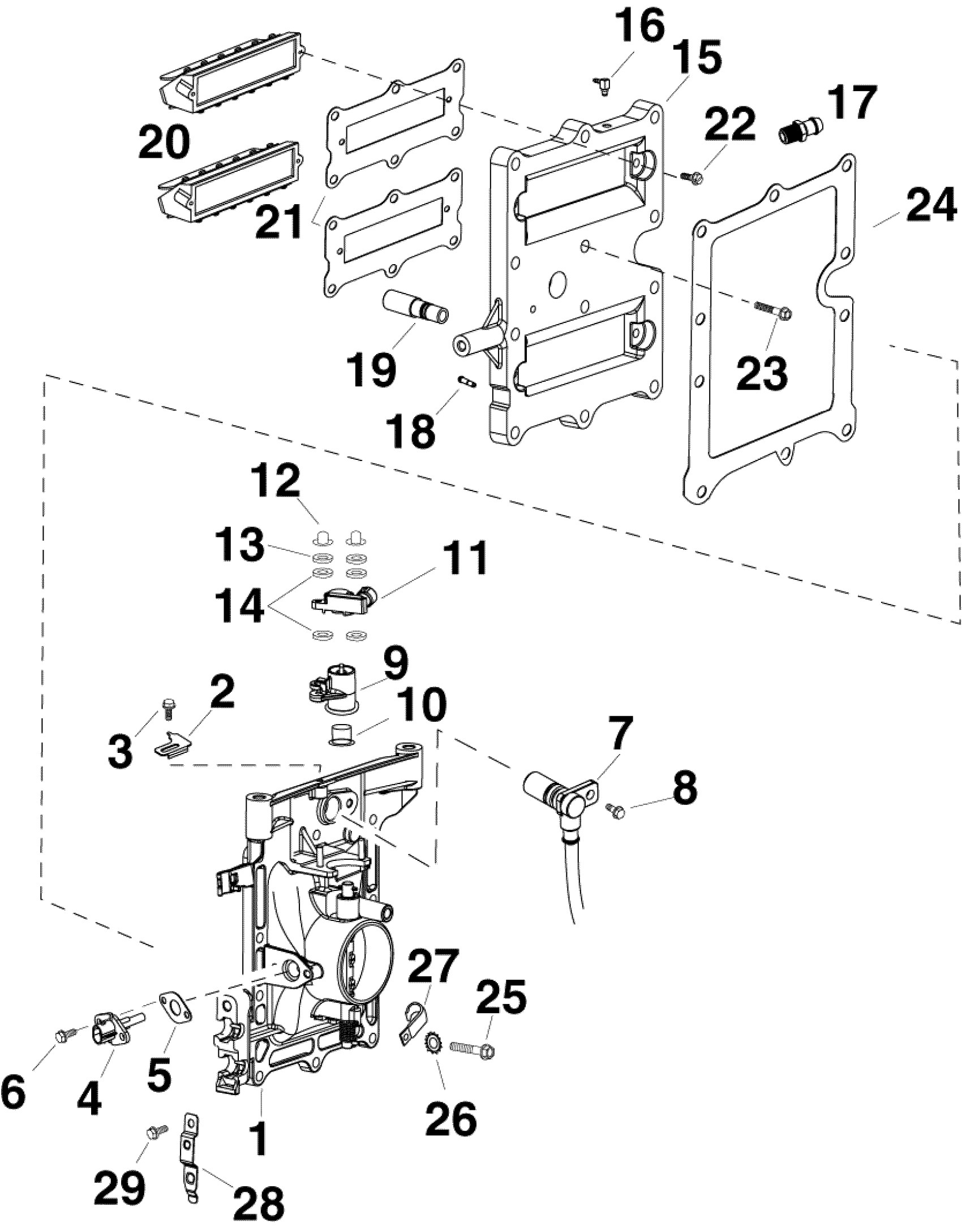

Evinrude E55MRLINB INTAKE MANIFOLD ASSEMBLY Diagram

#

Description
Price

1

THROTTLE BODY Assembly

5008407

$560.48

2

*POINTER, Timing

0350649

$7.37

3

*SCREW, Air temperature sensor

0332226

$9.65

4

*SENSOR, Air temperature

3010673

$42.83

5

*GASKET, Air temperature sensor

0350805

$14.27

6

*SCREW, Air temperature sensor

0332226

$9.65

7

SENSOR, Crankshaft position (CPS) | See "SENSORS"

0587402

$43.99

8

*SCREW, Air temperature sensor

0332226

$9.65

9

*LEVER, Throttle shaft - cam to shaft

5005188

$11.72

10

*BUSHING, Throrrle lever

0350970

$6.54

11

*SENSOR, Throttle position (TPS) | See "SENSORS"

5006484

$113.21

12

**NUT, TPS Push

0352129

$6.54

13

**WASHER, TPS

0336197

$7.95

14

**WASHER, TPS Isolation

0352122

$7.37

15

REED PLATE ASSEMBLY

0352739

$99.95

16

* FITTING, Oil recirculation elbow | See "Oil Recirculation Hoses"

0348471

$15.29

17

*FITTING

0330272

$16.31

18

*FITTING, Reed plate vent to Vap. Sep.

0349181

$22.94

19

*FITTING, Reed plate-idle air inlet

0351216

$6.54

20

LEAF PLATE ASSY.

0397336

$195.83

21

*GASKET, Reed valve to C/C

0352743

$16.31

NS

** TIE STRAP

0317893

$0.36

22

***SCREW

0333677

$2.55

23

*SCREW

0324334

$6.13

24

*GASKET, Throttle body to reed plate

0350552

$17.33

25

**SCREW, Actuator - 1/4-20 x 1.5

0353064

$9.65

26

**LOCKWASHER, DOuble-ended bolt

0328701

$1.32

27

*CLAMP, Small

0310441

$4.26

28

RETAINER, Grunion

0350657

$14.27

29

***SCREW

0328724

$14.27

NS

** TIE STRAP

0320107

$0.32
