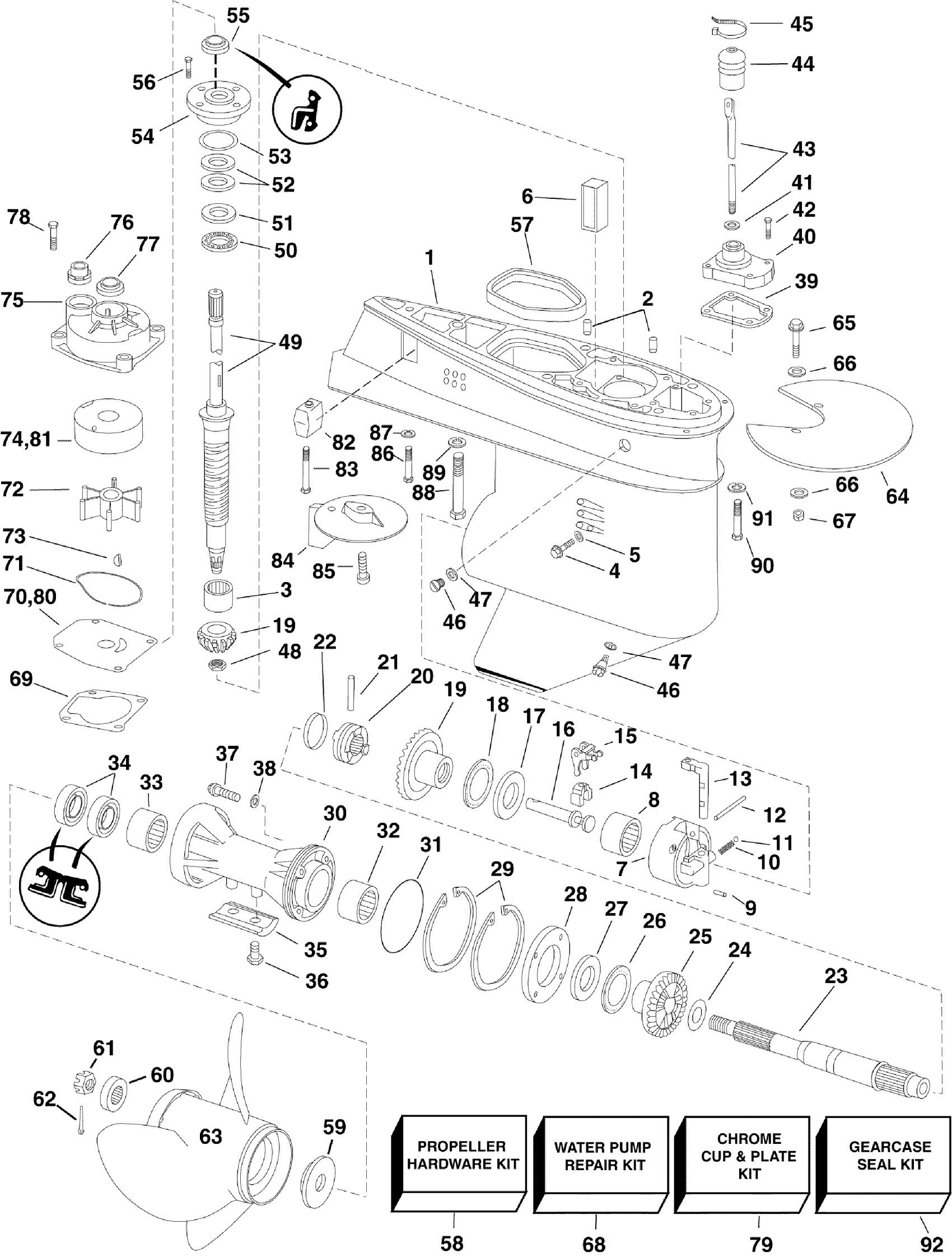

Evinrude E55MRLINB GEARCASE, F-Type (MRL) Diagram

#

Description
Price

-

GEARCASE ASSEMBLY - BLACK

5006331

$5,640.59

1

Grcse&Brg Prime

5009348

$2,239.91

2

* PIN

0350943

$14.27

3

***BEARING, Pinion

0382343

$27.49

4

***RETAINING SCREW & SEAL

0324852

$8.56

5

****WASHER, Seal ring

0332584

$3.44

6

***SCREEN, Water intake

0314175

$17.33

7

**BEARING HOUSING ASSEMBLY.

0391365

$181.55

8

***BEARING ASSY, Forward gear

0382407

$34.49

9

***PIN, Housing to gearcase

0331880

$4.74

10

***SPRING, Detent

0911961

$6.33

11

***BALL, Detent

0327345

$11.72

12

**PIN, Lever to housing

0320145

$10.49

13

**DETENT, Shifter

0330701

$119.84

14

**CRADLE, Shifter

0334163

$27.49

15

**LEVER, Shift

0324037

$22.43

16

**SHAFT, Shift dog

0326668

$181.55

17

**THRUST WASHER, Forward gear

0324766

$50.99

18

**THRUST BEARING ASSY.

0385043

$36.49

19

**GEAR SET, Forward & Pinion | 0.375 Ratio (12/32)

0398522

$441.14

20

**SHIFTER, Clutch dog

0318303

$126.99

21

**PIN, Clutch dog

0313448

$6.89

22

**SPRING, Clutch dog pin

0324369

$6.23

23

**PROPELLER SHAFT ASSEMBLY.

0439153

$796.10

24

**THRUST WASHER, Shifter

0316484

$23.96

25

**GEAR, Reverse

0318353

$352.40

26

**THRUST BEARING

0382408

$11.99

27

**THRUST WASHER

0313447

$17.49

28

**RETAINER PLATE, Bearing housing

0313453

$52.01

29

**RETAINING RING

0313445

$24.98

30

**BEARING HOUSING ASSEMBLY.

0434391

$375.86

31

"O" RIING, Brg. hsg | Contents of GEARCASE SEAL KIT.

0313446

$5.67

32

***BEARING ASSY, Forward gear

0382407

$34.49

33

***PROPSHAFT BEARING ASSEMBLY

0379504

$23.49

34

***SEAL | Contents of GEARCASE SEAL KIT.

0330137

$15.49

35

***ANODE, Bearing housing

0431708

$23.99

36

***SCREW, Anode

0908158

$5.11

37

**SCREW, Housing to gearcase | Contents of Gearcase Seal Kit

0320041

$14.49

38

****WASHER, Seal ring

0332584

$3.44

39

**GASKET, Cover to gearcase | Contents of Gearcase Seal Kit

0314082

$6.23

40

**COVER ASSEMBLY.

0387336

$82.10

41

"O" RING, Shift rod | Contents of Gearcase Seal Kit

0318372

$3.44

42

**SCREW, Cover to gearcase

0328725

$7.37

43

**SHIFT ROD

0350622

$119.84

44

**SEAL, Shift rod

0317922

$15.29

45

** TIE STRAP

0320107

$0.32

46

**SCREW, Fill & drain

0318544

$21.99

47

***SEAL | Contents of Gearcase Seal Kit

0311598

$1.58

48

**NUT, Pinion to driveshaft

0313339

$16.49

49

**DRIVESHAFT ASSEMBLY.

5005342

$683.39

50

**THRUST BEARING ASSEMBLY.

0385068

$31.49

51

**THRUST WASHER

0317230

$10.49

52

**SHIM, 0.003 in. (0,07mm)

0323889

$6.78

52

**SHIM, 0.004 in. (0,10mm)

0323890

$6.78

52

**SHIM, 0.005 in. (0,12mm)

0317232

$3.44

53

O RING | Contents of Gearcase Seal Kit

0313754

$5.00

54

**BEARING HOUSING ASSEMBLY.

0385087

$244.79

55

***SEAL | Contents of Gearcase Seal Kit

0342786

$12.99

56

**SCREW, Housing to gearcase

0909386

$6.23

57

**SEAL, Gearcase to inner exh. hsg. | Contents of Gearcase Seal Kit

0324937

$10.49

58

KIT MATÉRIEL DE MONTAGE D’HÉLICE

5005034

$53.99

59

**THRUST BUSHING

0127084

$48.49

60

**SPACER, Impeller nut

0315810

$6.78

61

**NUT, Impeller

0314503

$15.99

62

**Cotter Pin

0314502

$2.33

63

PROPELLER | MRL Models

0765181

$210.51

64

SPLASH GUARD

0352345

$280.49

65

SCREW, Adapter to housing, outer

0341011

$6.54

66

**WASHER, Screw hook

0328703

$6.78

67

**LOCKNUT, Double-ended bolt

0313022

$10.70

68

WATER PUMP REPAIR KIT

5006511

$75.99

69

*GASKET

0336530

$3.44

70

*PLATE, Impeller housing | W models use chrome plate & cup, see item 72

0341038

$10.49

71

*SEAL, Impeller housing

0324981

$13.49

72

*IMPELLER & KEY Assembly

0396725

$65.99

73

**CAM, Impeller to driveshaft

0334897

$3.77

74

*CUP, Impeller housing | W models use chrome plate & cup, see item 72

0340619

$16.49

75

*IMPELLER HOUSING

5006259

$24.98

76

*GROMMET, Water tube | WDRY Models

0333758

$7.11

77

*GROMMET, Housing

0341732

$6.66

78

**SCREW, Cover to gearcase

0328725

$7.37

79

CHROME CUP & PLATE KIT | Optional

0389145

$219.49

80

*PLATE | Optional

0341187

$182.06

81

*CUP, Chrome impeller housing | Optional

0341186

$86.99

82

**ANODE

0436745

$23.49

83

*SCREW

0328096

$8.56

84

TRIM TAB

0127466

$40.79

85

SCREW, Cap, hex hd, 7/16-14 x 1

0313715

$12.99

86

*SCREW, Adjustment rod

0306503

$9.08

87

*LOCK WASHER

0306470

$6.54

88

SCREW, Gearcase to housing

0331998

$30.08

89

*WASHER

0330265

$6.23

90

**SCREW, Plate - 3/8-16 x 1.5

0552968

$11.72

91

**WASHER, Trail lock lever

0330266

$9.65

92

GEARCASE SEAL KIT

5000309

$67.49
