Description

Price

1

Kit Ay-Vapor Sep

5010818

$588.02

2

***CAP

0126341

$11.72

3

**GROMMET, ESM Mounting

0329518

$9.65

4

***CONTACT, Tab

3011148

$6.54

5

***SEAL, Wire

3011149

$11.72

6

***CONNECTOR, 2 Position plug

3011154

$18.35

7

*FILTER, Fuel return

0362268

$1.43

8

**GOUJON, montage ESM

0344848

$24.98

9

RETAINING RING

0510487

$7.95

10

HOSE, Separator vent to check valve

0352765

$13.25

11

**HOSE

0772571

$4.06

12

**CHECK VALVE ASSEMBLY

5009201

$16.31

13

** TIE STRAP

0317893

$0.36

13

** TIE STRAP

0320107

$0.32

14

** TIE STRAP

0317893

$0.36

15

FUEL RAIL ASSEMBLY, Supply

5008389

$138.71

16

**O-RING, Fuel rail

0350779

$13.25

17

FUEL RAIL ASSEMBLY, Return

5008388

$137.69

18

**O-RING, Fuel rail

0350779

$13.25

19

* CLAMP, 17 mm

0348839

$3.43

20

**SCREW, Impeller housing

0302325

$6.23

21

**WASHER

0328700

$7.95

22

**GROMMET, ESM Mounting

0329518

$9.65

23

SCREW, Connector

0335328

$9.65

24

** TIE STRAP

0320107

$0.32

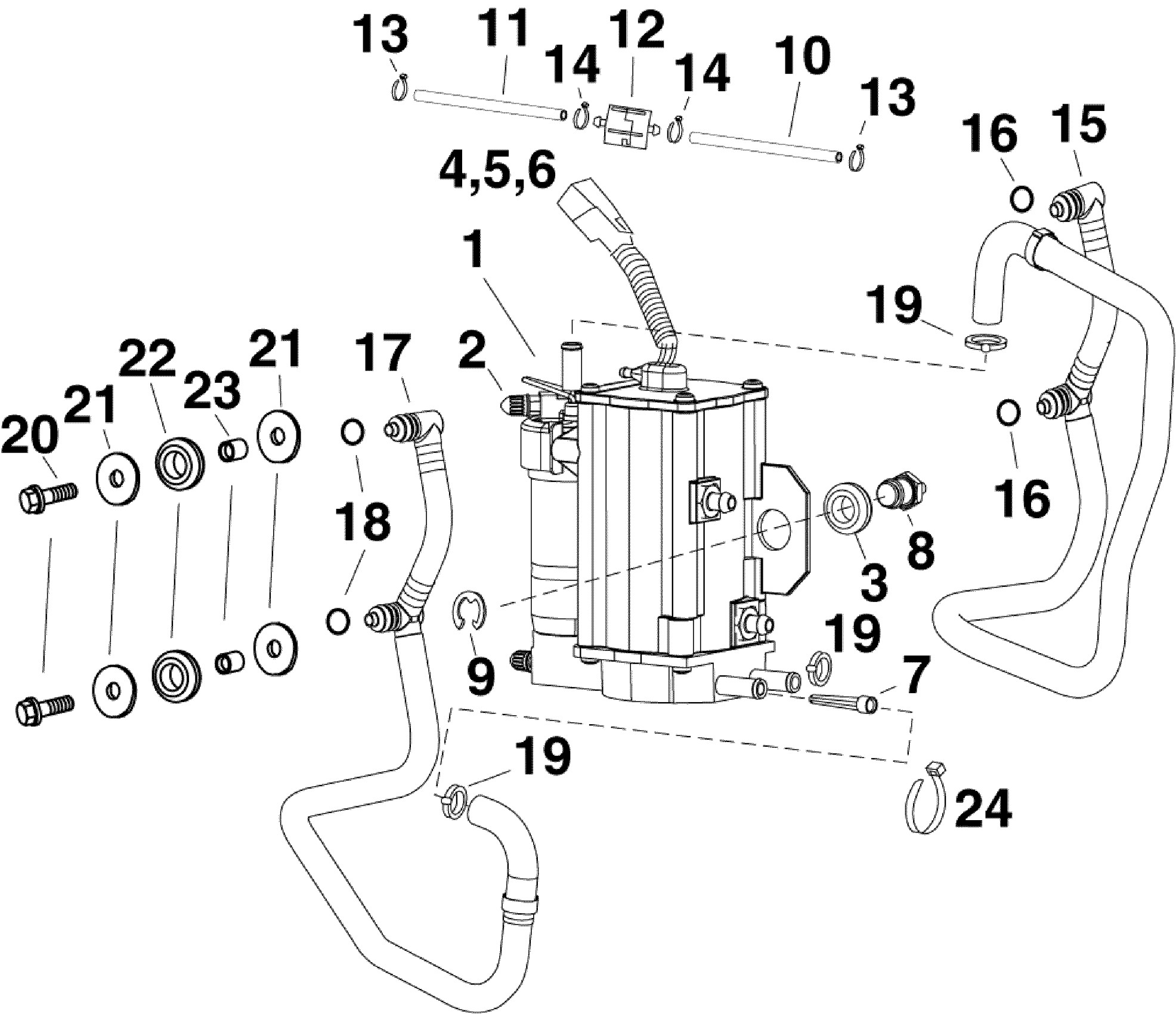

Evinrude E55MRLINB FUEL PUMP & VAPOR SEPARATOR Diagram

Kit Ay-Vapor Sep

***CAP

**GROMMET, ESM Mounting

***CONTACT, Tab

***SEAL, Wire

***CONNECTOR, 2 Position plug

*FILTER, Fuel return

**GOUJON, montage ESM

RETAINING RING

HOSE, Separator vent to check valve

**HOSE

**CHECK VALVE ASSEMBLY

** TIE STRAP

** TIE STRAP

** TIE STRAP

FUEL RAIL ASSEMBLY, Supply

**O-RING, Fuel rail

FUEL RAIL ASSEMBLY, Return

**O-RING, Fuel rail

* CLAMP, 17 mm

**SCREW, Impeller housing

**WASHER

**GROMMET, ESM Mounting

SCREW, Connector

** TIE STRAP
