Description

Price

1

FILTER AY, Fuel

5007335

$12.99

2

* CLAMP, 17 mm

0348839

$3.43

3

**ATTACHE-CÂBLE, câbles vers commande de sens de marche

0907833

$0.43

4

CLAMP, Fuel filter to C/C

0351009

$9.19

5

**SCREW, Plate - 3/8-16 x .75

0319590

$11.72

6

*CLAMP, 18.5mm

0346150

$3.43

7

* CLAMP, 17 mm

0348839

$3.43

8

HOSE, Fuel pump to fuel filter

0350792

$46.91

9

**CLAMP, 14.5 mm

0346785

$3.43

10

HOSE, Fuel filter to vapor separator

0355122

$32.34

11

*HOSE, Exhaust pressure inlet

0772572

$5.50

12

** TIE STRAP

0320107

$0.32

13

HOSE, Connector to fuel pump

0353515

$54.56

14

CONNECTOR, Fuel inlet

5006348

$120.35

NS

** TIE STRAP

0320107

$0.32

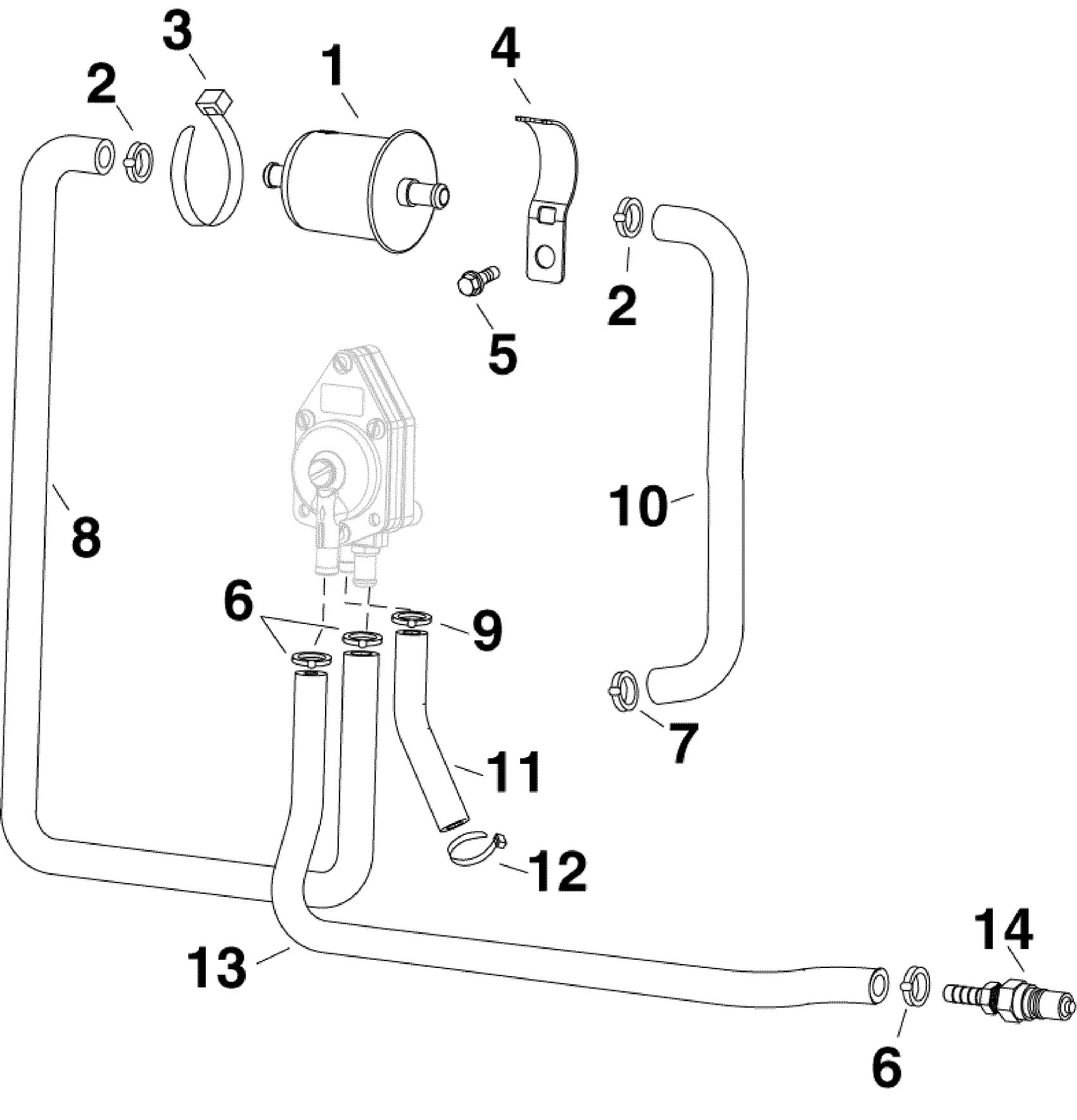

Evinrude E55MRLINB FUEL FILTER Diagram

FILTER AY, Fuel

* CLAMP, 17 mm

**ATTACHE-CÂBLE, câbles vers commande de sens de marche

CLAMP, Fuel filter to C/C

**SCREW, Plate - 3/8-16 x .75

*CLAMP, 18.5mm

* CLAMP, 17 mm

HOSE, Fuel pump to fuel filter

**CLAMP, 14.5 mm

HOSE, Fuel filter to vapor separator

*HOSE, Exhaust pressure inlet

** TIE STRAP

HOSE, Connector to fuel pump

CONNECTOR, Fuel inlet

** TIE STRAP
