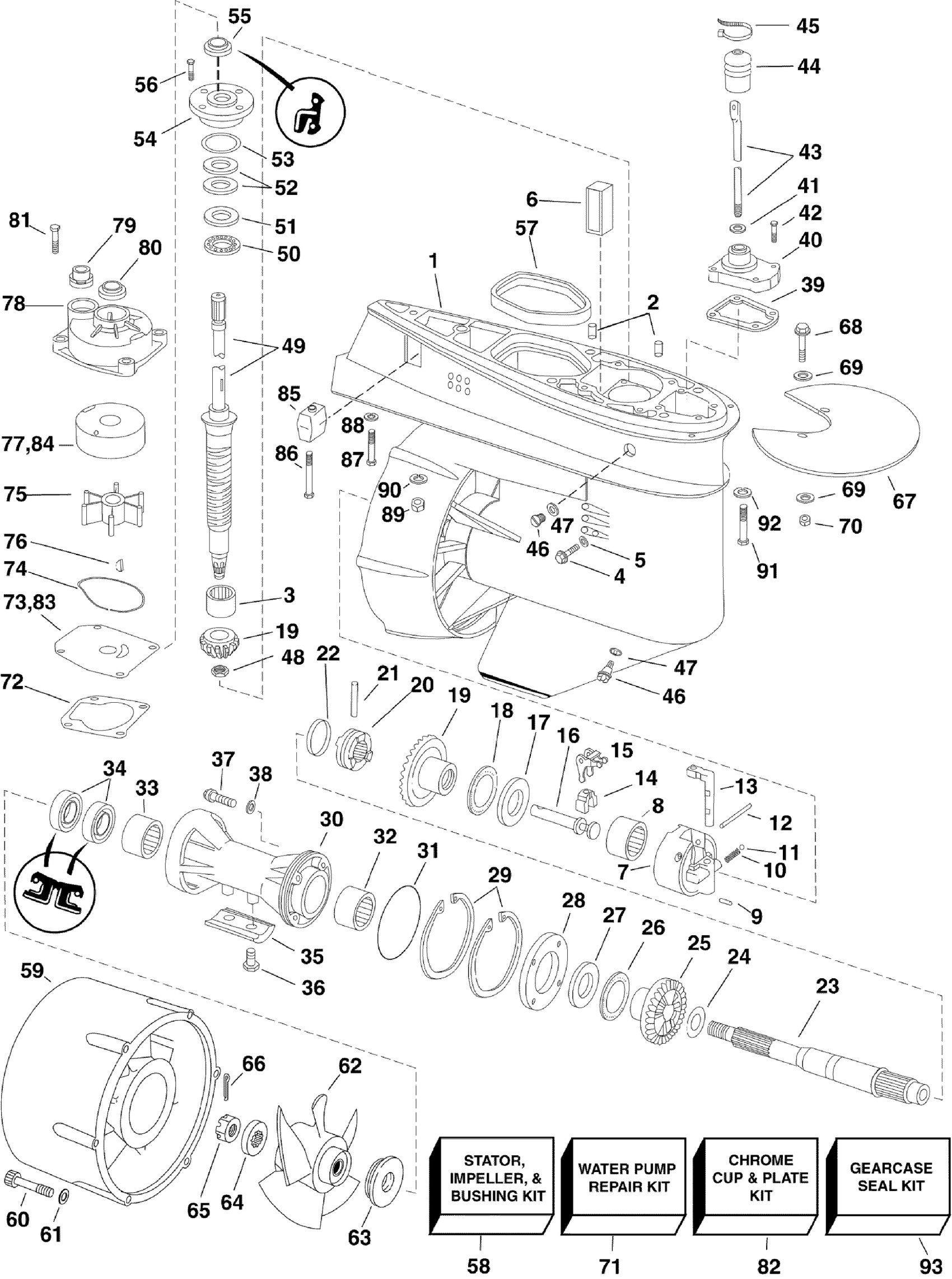

Evinrude E55MJRLINB GEARCASE, F-Type (MJRL) Diagram

#

Description
Price

-

GEARCASE, ROTOR & PUMP ASSEMBLY

5008131

$8,290.55

1

*GEARCASE ASSEMBLY

5007686

$5,396.30

1

**GEARCASE & BEARING ASSEMBLY

5007685

$2,954.66

2

* PIN

0350943

$14.27

3

***BEARING, Pinion

0382343

$27.49

4

***RETAINING SCREW & SEAL

0324852

$8.56

5

****WASHER, Seal ring

0332584

$3.44

6

***SCREEN, Water intake

0314175

$17.33

7

**BEARING HOUSING ASSEMBLY.

0391365

$181.55

8

***BEARING ASSY, Forward gear

0382407

$34.49

9

***PIN, Housing to gearcase

0331880

$4.74

10

***SPRING, Detent

0911961

$6.33

11

***BALL, Detent

0327345

$11.72

12

**PIN, Lever to housing

0320145

$10.49

13

**DETENT, Shifter

0330701

$119.84

14

**CRADLE, Shifter

0334163

$27.49

15

**LEVER, Shift

0324037

$22.43

16

**SHAFT, Shift dog

0326668

$181.55

17

**THRUST WASHER, Forward gear

0324766

$50.99

18

**THRUST BEARING ASSY.

0385043

$36.49

19

**GEAR SET, Forward & Pinion | 0.375 Ratio (12/32)

0398522

$441.14

20

**SHIFTER, Clutch dog

0318303

$126.99

21

**PIN, Clutch dog

0313448

$6.89

22

**SPRING, Clutch dog pin

0324369

$6.23

23

**PROPELLER SHAFT ASSEMBLY.

0439153

$796.10

24

**THRUST WASHER, Shifter

0316484

$23.96

25

**GEAR, Reverse

0318353

$352.40

26

**THRUST BEARING

0382408

$11.99

27

**THRUST WASHER

0313447

$17.49

28

**RETAINER PLATE, Bearing housing

0313453

$52.01

29

**RETAINING RING

0313445

$24.98

30

**BEARING HOUSING ASSEMBLY.

0434391

$375.86

31

"O" RIING, Brg. hsg | Contents of GEARCASE SEAL KIT.

0313446

$5.67

32

***BEARING ASSY, Forward gear

0382407

$34.49

33

***PROPSHAFT BEARING ASSEMBLY

0379504

$23.49

34

***SEAL | Contents of GEARCASE SEAL KIT.

0330137

$15.49

35

***ANODE, Bearing housing

0431708

$23.99

36

***SCREW, Anode

0908158

$5.11

37

**SCREW, Housing to gearcase | Contents of Gearcase Seal Kit

0320041

$14.49

38

****WASHER, Seal ring

0332584

$3.44

39

**GASKET, Cover to gearcase | Contents of Gearcase Seal Kit

0314082

$6.23

40

**COVER ASSEMBLY.

0387336

$82.10

41

"O" RING, Shift rod | Contents of Gearcase Seal Kit

0318372

$3.44

42

**SCREW, Cover to gearcase

0328725

$7.37

43

**SHIFT ROD

0350622

$119.84

44

**SEAL, Shift rod

0317922

$15.29

45

** TIE STRAP

0320107

$0.32

46

**SCREW, Fill & drain

0318544

$21.99

47

***SEAL | Contents of Gearcase Seal Kit

0311598

$1.58

48

**NUT, Pinion to driveshaft

0313339

$16.49

49

**DRIVESHAFT ASSEMBLY.

5005342

$683.39

50

**THRUST BEARING ASSEMBLY.

0385068

$31.49

51

**THRUST WASHER

0317230

$10.49

52

**SHIM, 0.003 in. (0,07mm)

0323889

$6.78

52

**SHIM, 0.004 in. (0,10mm)

0323890

$6.78

52

**SHIM, 0.005 in. (0,12mm)

0317232

$3.44

53

O RING | Contents of Gearcase Seal Kit

0313754

$5.00

54

**BEARING HOUSING ASSEMBLY.

0385087

$244.79

55

***SEAL | Contents of Gearcase Seal Kit

0342786

$12.99

56

**SCREW, Housing to gearcase

0909386

$6.23

57

**SEAL, Gearcase to inner exh. hsg. | Contents of Gearcase Seal Kit

0324937

$10.49

58

*STATOR, IMPELLER, & BUSHING KIT

5008177

$3,093.57

59

Hsg&Nozzle Ay

5009980

$2,728.49

60

**SCREW, Stator housing

0344722

$16.31

61

**WASHER, Stator housing screw

0344775

$7.37

62

**IMPELLER & BUSHING ASSEMBLY

0349238

$1,733.99

63

**THRUST BUSHING

0127084

$48.49

64

**SPACER, Impeller nut

0315810

$6.78

65

**NUT, Impeller

0314503

$15.99

66

**Cotter Pin

0314502

$2.33

67

SPLASH GUARD

0352345

$280.49

68

SCREW, Adapter to housing, outer

0341011

$6.54

69

**WASHER, Screw hook

0328703

$6.78

70

**LOCKNUT, Double-ended bolt

0313022

$10.70

71

WATER PUMP REPAIR KIT

5006511

$75.99

72

*GASKET

0336530

$3.44

73

*PLATE, Impeller housing | W models use chrome plate & cup, see item 72

0341038

$10.49

74

*SEAL, Impeller housing

0324981

$13.49

75

*IMPELLER & KEY Assembly

0396725

$65.99

76

**CAM, Impeller to driveshaft

0334897

$3.77

77

*CUP, Impeller housing | W models use chrome plate & cup, see item 72

0340619

$16.49

78

*IMPELLER HOUSING

5006259

$24.98

79

*GROMMET, Water tube | WDRY Models

0333758

$7.11

80

*GROMMET, Housing

0341732

$6.66

81

**SCREW, Cover to gearcase

0328725

$7.37

82

CHROME CUP & PLATE KIT | Optional

0389145

$219.49

83

*PLATE | Optional

0341187

$182.06

84

*CUP, Chrome impeller housing | Optional

0341186

$86.99

85

**ANODE

0436745

$23.49

86

*SCREW

0328096

$8.56

87

*SCREW, Adjustment rod

0306503

$9.08

88

*LOCK WASHER

0306470

$6.54

89

NUT, Exhaust housing stud

0353926

$42.32

90

*WASHER, Rod

0202026

$9.65

91

**SCREW, Plate - 3/8-16 x 1.5

0552968

$11.72

92

**WASHER, Trail lock lever

0330266

$9.65

93

GEARCASE SEAL KIT

5000309

$67.49
