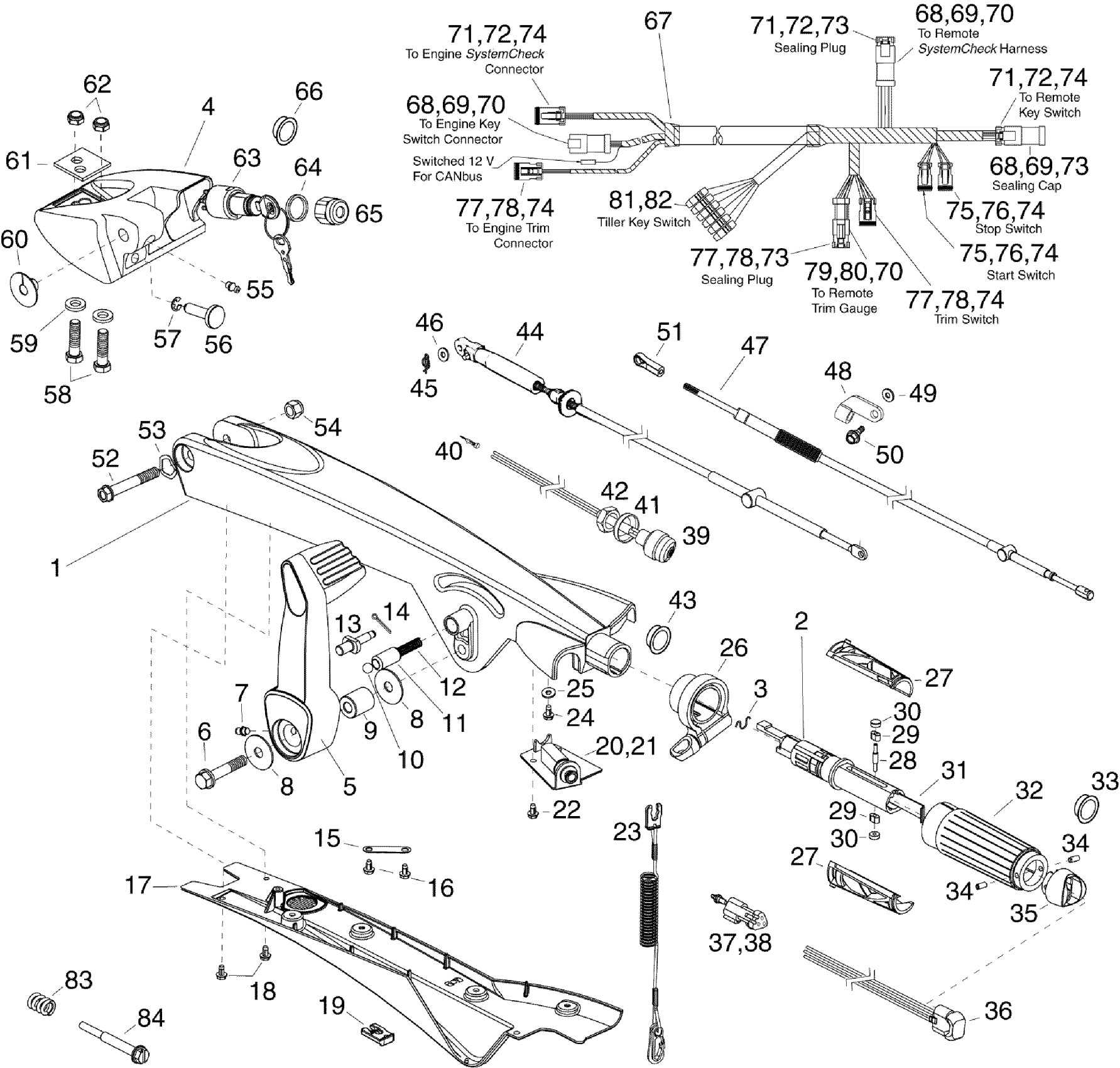

Evinrude E40DTLINM TILLER ARM (DT, WDR) Diagram

#

Description
Price

-

TILLER KIT | Complete assembly for DT models

5009249

$827.49

1

Not Available As Spare Part - Friction Washer

Unavailable

2

**HANDLE, Inner

0397001

$63.23

3

***RETAINING RING

0332089

$9.65

4

Not Available As Spare Part - Friction Washer

Unavailable

5

*HANDLE, Shift | Not painted

0352673

$240.71

6

*SCREW, Shift handle mount

0329885

$36.20

7

***LUBE FITTING

0313607

$9.65

8

*RONDELLE, poignée de commande de sens de marche

0327400

$11.72

9

*BAGUE de la poignée de commande de sens de marche

0334815

$26.00

10

**BALL

0318626

$11.72

11

*GUIDE

0327178

$47.42

12

*RESSORT

0309247

$11.72

13

*AXE, poignée de commande de sens de marche vers câble

0351932

$59.99

14

*COTTER PIN

0303049

$1.40

15

*DISPOSITIF DE RETENUE, câble de commande de sens de marche

0351995

$49.46

16

**SCREW, Stop switch mount

0336481

$9.65

17

*CAPOT, barre

0352293

$140.75

18

**SCREW, Stop switch mount

0336481

$9.65

19

***CLIP, Restart

0333499

$7.37

20

*EMGY. STOP SWITCH Assy | W Models

0586830

$70.99

20

*INTERRUPTEUR D'ARRÊT | DT Models

0586936

$55.99

21

***BORNE, broche

0514679

$0.77

NS

***CONNECTOR, 6-PIN

0514688

$21.41

NS

***CONNECTOR, 2 Pin receptacle

0514696

$15.29

NS

***LOCK WEDGE, 6-pin

0514684

$3.13

NS

***LOCK WEDGE, 2-Pin

0514697

$3.13

NS

***BOUCHON, mâle

0514690

$11.72

22

**SCREW, Stop switch mount

0336481

$9.65

23

**LANYARD ASSY.

0398602

$15.49

24

**SCREW, Stop switch mount

0336481

$9.65

25

**WASHER

0121497

$9.65

26

*COMMANDE DE FRICTION D'ACCÉLÉRATION

5008076

$31.61

27

*HÉLICOÏDALE, poignée tournante

0339722

$18.35

28

*GOUPILLE

0329880

$22.94

29

*GUIDE

0329879

$13.25

30

*GALET, hélice vers câble

0329881

$17.84

31

*GUIDE, fil | DT Models

0352104

$72.92

32

*TWIST GRIP

0436216

$74.96

32

*POIGNÉE TOURNANTE | DT Models

0352813

$77.49

33

*PLUG, Idle adjustment

0342933

$27.49

34

*SCREW | DT Models

0324967

$9.65

35

*CARTER, interrupteur de correction d'assiette | DT Models

0352103

$64.99

36

*INTERRUPTEUR, correction d’assiette & relevage | DT Models

0352270

$40.79

37

***CONNECTEUR, 3 broches

0514686

$15.29

38

***LOCK WEDGE, 3 pin

0514682

$4.26

39

*INTERRUPTEUR DE DÉMARRAGE | DT Models

0586935

$50.99

40

***BORNE, broche

0514679

$0.77

41

*BAGUE, de retenue | DT Models

0324041

$13.25

42

**ÉCROU

0327805

$15.29

43

*PLUG | W Models

0336347

$9.65

44

*CÂBLE, commande de sens de marche

5007905

$222.35

45

**ATTACHE, commande vers tringlerie de sens de marche

0333774

$9.65

46

* WASHER

0328702

$4.44

47

*CÂBLE d'accélérateur

5006159

$216.74

48

**ANCHOR, Control cable

0334083

$13.25

49

*RONDELLE entre ancrage et support

0328739

$9.08

50

*SCREW, Anchor to bracket

0329160

$22.94

51

*CONNECTEUR, câble d'accélérateur

0334153

$16.82

52

*SCREW

0350989

$20.39

53

*RONDELLE, ressort

0328733

$6.54

54

**LOCKNUT | WDRY Models

0307160

$16.31

55

***LUBE FITTING

0313607

$9.65

56

*THUMBSCREW, Height adjustment

0352295

$68.84

57

**RETAINING RING, Pawl

0203470

$14.27

58

*SCREW

0325729

$15.29

59

**WASHER in tiller kit (.390 I.D. x .750 O.D. x 0.120 in)

0320397

$9.65

60

*BAGUE entre barre et support

0325452

$14.27

61

*PLAQUE, réglage de l'angle

0352625

$122.90

62

**LOCKNUT, (3/8-24 SS)

0315077

$9.65

63

*IGNITION SWITCH & KEY | DT Models

5005800

$75.98

64

*ENTRETOISE | DT Models

0127251

$8.52

NS

*BAGUE, de retenue | DT Models

0324041

$13.25

65

*ÉCROU, interrupteur à clé | DT Models

0127237

$14.27

66

GROMMET, Key switch hole | W Models

0338287

$18.35

67

*FAISCEAU, barre | DT Models

0586934

$516.21

68

***CONNECTOR, 6-PIN

0514688

$21.41

69

***LOCK WEDGE, 6-pin

0514684

$3.13

70

***BORNE, broche

0514679

$0.77

71

***CONNECTEUR, fiche 6 broches

0514687

$22.94

72

***CALE VERROUILLAGE, fiche 6 broches

0514683

$4.26

73

***BOUCHON, mâle

0514690

$11.72

74

***SOCKET

0514680

$2.99

75

**CONNECTEUR, 2 broches

0176295

$11.72

76

**CALE VERROUILLAGE

0127287

$6.54

77

***CONNECTOR, 3 socket

0514685

$15.29

78

***LOCK WEDGE, 3 socket

0514681

$4.26

79

***CONNECTEUR, 3 broches

0514686

$15.29

80

***LOCK WEDGE, 3 pin

0514682

$4.26

81

***TERMINAL, Socket | DT Models

0910446

$11.72

82

***SLEEVE, Socket | DT Models

0126908

$10.70

83

*RESSORT de friction de direction

0551113

$30.08

84

*SCREW, Steering friction

0332945

$16.38

NS

*AUTOCOLLANT, avertissement démarrage en prise | See "Decals"

0355620

$13.25

NS

*AUTOCOLLANT, sens de marche

0333979

$1.15

NS

** TIE STRAP

0320107

$0.32

NS

** TIE STRAP

0317893

$0.36
