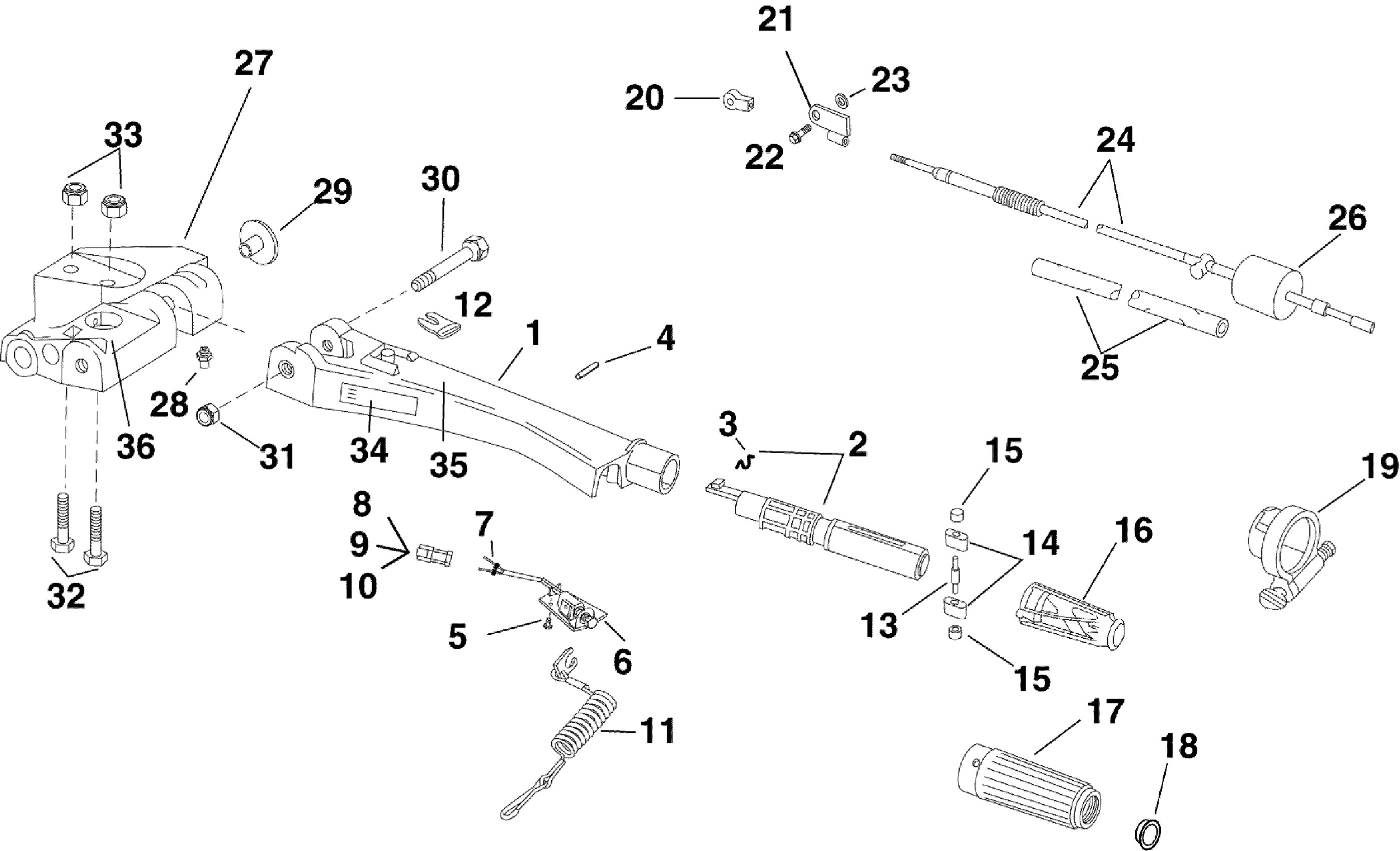

Evinrude E40DRLINC TILLER ARM (DR) Diagram

#

Description
Price

1

HANDLE ASSEMBLY, Tiller steering

0437144

$652.28

2

**HANDLE, Inner

0397001

$63.23

3

***RETAINING RING

0332089

$9.65

4

**PIN, Inner steering handle

0334960

$11.72

5

**SCREW, Stop switch mount

0336481

$9.65

6

*STOP SWITCH Assy

0586792

$59.35

7

***BORNE, broche

0514679

$0.77

8

***CONNECTOR, 6-PIN

0514688

$21.41

9

***LOCK WEDGE, 6-pin

0514684

$3.13

10

***BOUCHON, mâle

0514690

$11.72

11

**LANYARD ASSY.

0398602

$15.49

12

***CLIP, Restart

0333499

$7.37

13

*GOUPILLE

0329880

$22.94

14

*GUIDE

0329879

$13.25

15

*GALET, hélice vers câble

0329881

$17.84

16

*HÉLICOÏDALE, poignée tournante

0339722

$18.35

17

*TWIST GRIP

0436216

$74.96

18

*PLUG, Idle adjustment

0342933

$27.49

19

*COMMANDE DE FRICTION D'ACCÉLÉRATION

5008076

$31.61

20

*CONNECTEUR, câble d'accélérateur

0334153

$16.82

21

**ANCHOR, Control cable

0334083

$13.25

22

*SCREW, Anchor to bracket

0329160

$22.94

23

*RONDELLE entre ancrage et support

0328739

$9.08

24

THROTTLE CABLE

5007771

$112.19

25

*TUBING

0323912

$16.31

26

*SEAL

0329063

$11.72

27

STEERING ARM BRACKET, Tiller

0355221

$186.14

28

***LUBE FITTING

0313607

$9.65

29

*BAGUE entre barre et support

0325452

$14.27

30

*SCREW

0350989

$20.39

31

**LOCKNUT | WDRY Models

0307160

$16.31

32

*SCREW

0325729

$15.29

33

**LOCKNUT, (3/8-24 SS)

0315077

$9.65

34

*AUTOCOLLANT, avertissement démarrage en prise | See "Decals"

0355620

$13.25

35

*AUTOCOLLANT, attache d'arrêt d'urgence

0335299

$0.99

36

*AUTOCOLLANT, sens de marche

0333979

$1.15
