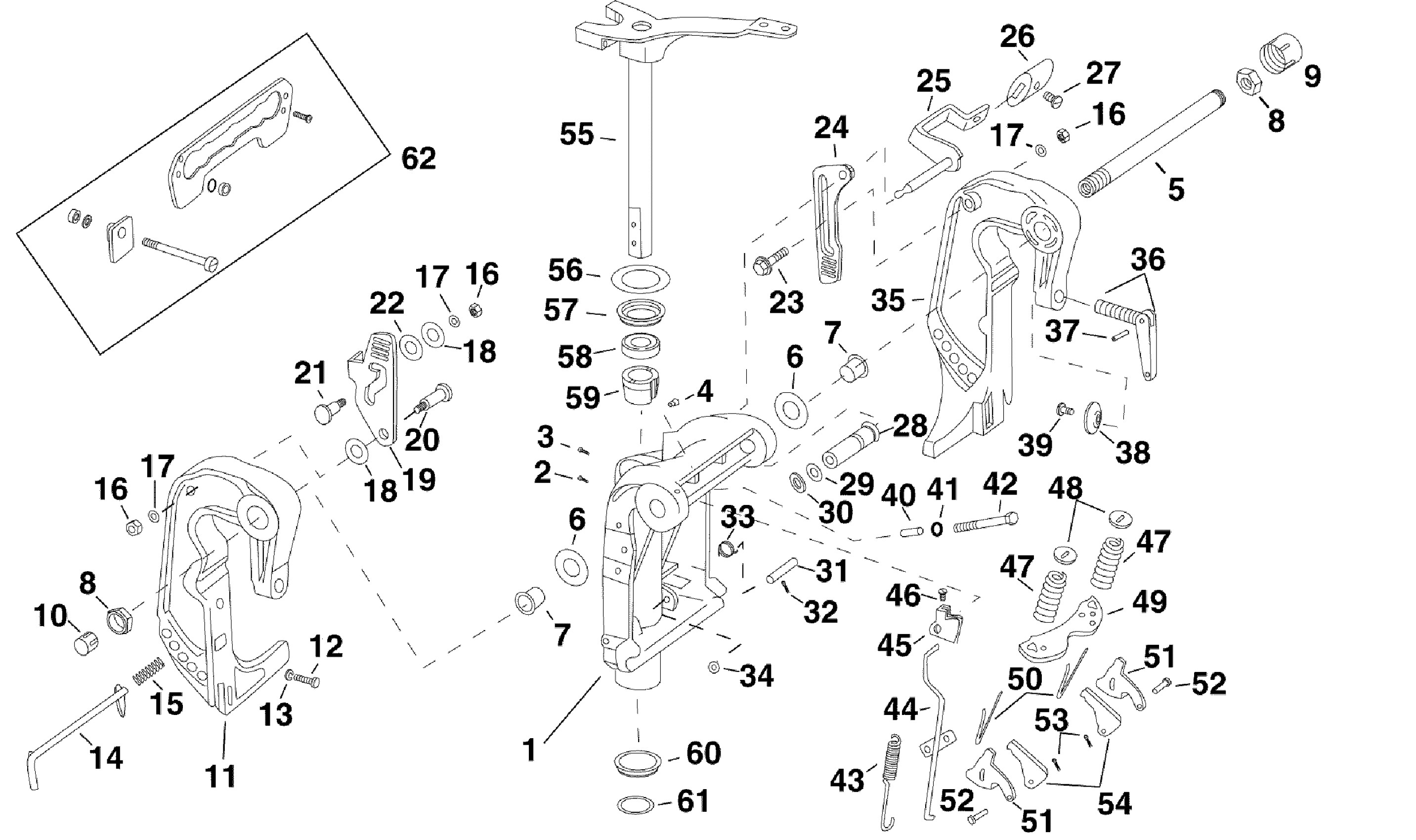

Evinrude E40DRLINC SWIVEL BRACKET (DR, WDR) Diagram

#

Description
Price

1

SWIVEL BRACKET

0351319

$2,418.96

2

SCREW

0317419

$9.65

3

***LUBE FITTING

0313607

$9.65

4

SCREW, Thrust ring

0317416

$14.27

5

TILT TUBE

0351896

$113.72

6

THRUST WASHER

0317782

$11.72

7

BUSHING

0319787

$15.29

8

*LOCKNUT, Tilt tube

0335554

$11.99

9

*ÉCROU RACLEUR

0337586

$15.29

10

*CAP, Tilt tube

0317894

$9.93

11

STERN BRACKET, Starboard

0352294

$305.48

12

*SCREW, Mounting

0552940

$9.08

13

*LOCK WASHER

0306470

$6.54

14

THRUST ROD ASSEMBLY

0436212

$55.95

15

SPRING & Thrust rod

0307068

$9.65

16

*ÉCROU, support vers embarcation

0313990

$10.70

17

WASHER

0330179

$9.65

18

**BOW WASHER

0553766

$7.95

19

STOP LINK, Starboard

0351218

$43.85

20

SCREW, Stop link to stern bracket

0351271

$30.08

21

SCREW, Stop link to stern bracket

0351270

$37.22

22

WASHER, Outer

0303864

$6.38

23

SCREW, Stop link

0351269

$27.02

24

STOP LINK & ASSEMBLY, Port

0351217

$70.37

25

LEVER, SHAFT & PIN ASSEMBLY

5008673

$64.99

26

KNOB Tilt & reverse lock handle

0329012

$16.31

27

SCREW

0318238

$9.65

28

BUSHING

0351264

$97.40

29

SPRING WASHER, Lever & shaft

0351320

$30.08

30

WASHER, Lever & shaft assembly

0351321

$17.00

31

PIN, Link to bracett

0315961

$13.25

32

**ATTACHE, commande vers tringlerie de sens de marche

0333774

$9.65

33

SPIRNG, Link

0315967

$35.00

34

*WASHER, Hook, front

0125545

$9.65

35

STERN BRACKET, Port

0350624

$307.52

36

*CLAMP SCREW, HANDLE AY, AL

0388052

$114.74

36

*CLAMP SCREW, HANDLE AY, SS

0391434

$49.99

37

**SPRING PIN, Handle

0302023

$6.54

38

**SWIVEL PLATE

0337018

$16.31

39

**SCREW, Plate

0334003

$23.96

40

PIN, Steer. friction

0317418

$21.49

41

**O-RING

0326956

$5.29

42

SCREW, Steering friction

0350988

$61.19

NS

*RESSORT de friction de direction

0551113

$30.08

43

SPRING, Reverse lock

0321426

$23.96

44

ROD & BRACKET

0387531

$35.18

45

BELLCRANK

0351248

$42.32

46

**SCREW, Anode

0304013

$9.65

47

. SPRING, Reverse lock

0313817

$27.02

48

. CUP, Reverse lock spring

0314007

$13.25

49

. PLATE, Reverse lock

0321234

$26.00

50

. RETAINER, Spring

0315965

$130.55

51

. LINK, Reverse lock

0315964

$23.96

52

. PIN, Link to lever

0315962

$23.96

53

**COTTER PIN

0305650

$1.32

54

LEVER, Locking

0333871

$20.49

55

Arm Ay

5009613

$639.53

56

THRUST WASHER, Upper

0318295

$18.35

57

SEAL

0317776

$22.94

58

THRUST RING, Friction

0317415

$41.81

59

BUSHING, Upper

0317412

$37.22

60

SEAL, Lower

0318298

$16.31

61

THRUST WASHER, Lower

0318296

$16.31

62

KIT DE MONTAGE DE TABLEAU ARRIÈRE | Manual tilt models

0394219

$130.04
