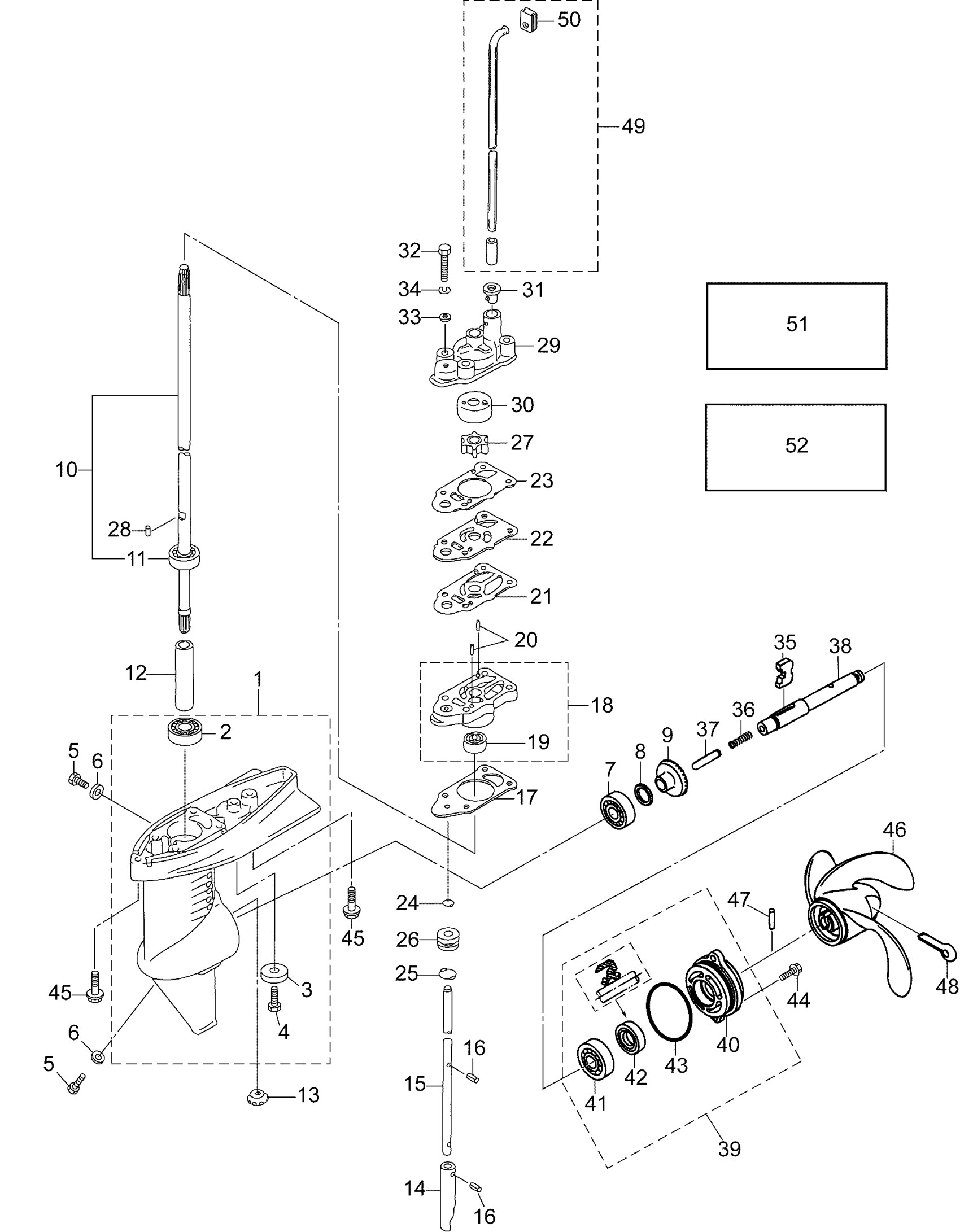

Evinrude E3R4INS 17-1_GEARCASE Diagram

#

Description
Price

1

GEAR CASE ASSEMBLY

5040752

$118.80

2

* BALL BEARING 6000

5040406

$26.51

3

* ANODE

5040052

$15.29

4

* BOLT

5041524

$4.26

5

PLUG

5040029

$11.72

6

Gasket 8.1-15-1

5040030

$5.40

7

* BALL BEARING 6004

5041703

$23.45

8

Shim 21-28-0.1

5040156

$11.24

9

BEVEL GEAR ASS'Y (A)

5040155

$175.43

10

DRIVE SHAFT ASSEMBLY | R Models (15 in. shaft)

5040417

$70.13

11

* BALL BEARING 6000

5040406

$26.51

12

Spacer 10.1-15-72

5040814

$13.76

13

BEVEL GEAR B

5040158

$82.61

14

CLUTCH CAM

5040821

$21.75

15

CAM ROD | R Models (15 in. shaft)

5040822

$26.00

16

SPRING PIN 3-8

5041690

$3.13

17

PUMP CASE GASKET (LOWER)

5040818

$6.54

18

PUMP CASE ASS'Y (LOWER)

5040942

$69.35

19

* OIL SEAL 10-22-8

5040807

$15.80

20

KEY PUMP IMPELLER

5040526

$5.97

21

GUIDE PLATE GASKET

5040819

$5.40

22

WATER PUMP GUIDE PLATE

5040418

$13.76

23

PUMP CASE GASKET

5040817

$5.40

24

O-RING A 2.5-4.9

5040195

$4.26

25

O-Ring 2.4-9.5

5040009

$2.99

26

CAM ROD BUSHING

5040823

$7.37

27

WATER PUMP IMPELLER

5040180

$56.60

28

Key Pump Impeller

5040181

$5.97

29

PUMP CASE (UPPER)

5040816

$86.69

30

PUMP CASE LINER

5040815

$19.88

31

Grommet Water Tube Lower

5040820

$5.40

32

BOLT

5041584

$7.37

33

* WASHER

5041661

$3.13

34

* SPRING WASHER

5041675

$3.69

35

CLUTCH

5040811

$112.19

36

Spring Clutch

5040812

$1.50

37

Push Rod Clutch

5040813

$6.99

38

PROPELLER SHAFT

5040810

$176.96

39

PROPELLER SHAFT HOUSING ASSEMBLY

5040827

$42.52

40

* PROPELLER SHAFT HOUSING

5040826

$16.00

41

* BALL BEARING 6001

5041701

$8.38

42

* Oil Seal 12-24-8

5040015

$15.29

43

* O-RING 3.2-47

5040061

$11.72

44

* BOLT | R, TE

5041560

$5.40

45

BOLT | Use with extention kit

5040404

$4.83

46

PROPELLER | 3-Blade, Plastic, 7.5" X 7"

5040809

$74.96

46

PROPELLER (6") (Alminium) | Aluminum

5040825

Unavailable

46

PROPELLER (6") (Plastic) | Plastic

5040021

$78.02

46

PROPELLER (4.5") (Plastic) | Aluminum

5040026

$86.69

47

SHEAR PIN

5040022

$16.31

48

COTTER PIN

5041697

$9.65

49

WATER PIPE ASSEMBLY | R Models (15 in. shaft)

5040420

$39.77

50

* GROMMET, Water Pipe Upper

5040419

$2.99

51

LOWER UNIT GASKET SET

5040824

$34.99

52

WATER PUMP REPAIR KIT

5040434

$59.15

NS

ENGINE FLUSHING ADAPTER

5040048

$18.86
