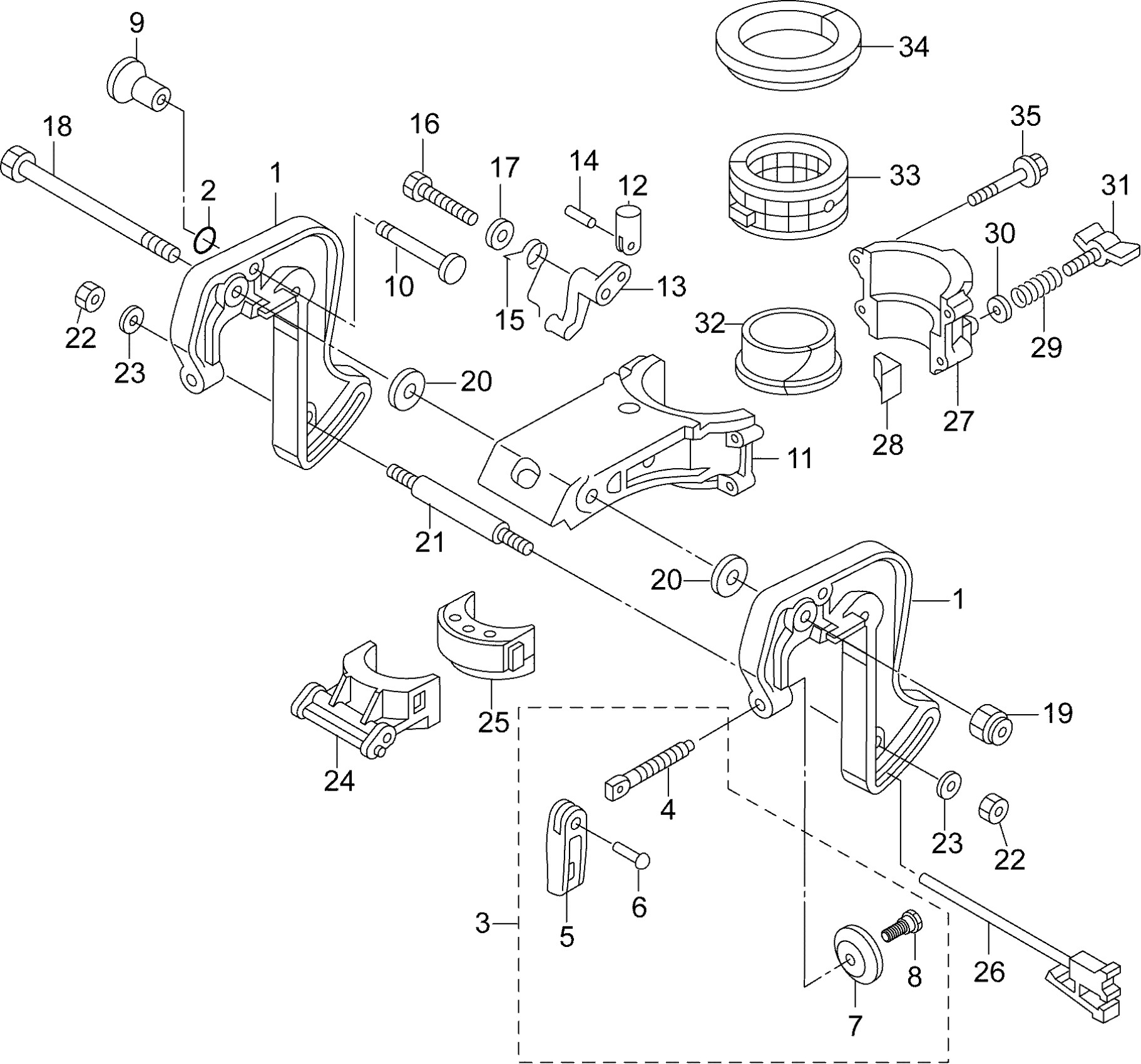

Evinrude E3R4INS 16-4_STERN & SWIVEL BRACKET Diagram

#

Description
Price

1

CLAMP BRACKET

5040443

$29.00

2

O-Ring 2.4-9.5

5040009

$2.99

3

CLAMP SCREW KIT

5040934

$192.26

4

* CLAMP SCREW

5040149

$46.91

5

* CLAMP SCREW HANDLE

5040442

$13.25

6

* RIVET 3-22

5040769

$7.95

7

* CLAMP SCREW PAD

5040033

$8.52

8

* SHOULDER BOLT

5040770

$11.13

9

Knob Tilt Stopper

5040020

$9.65

10

TILT STOPPER

5040411

$18.35

11

SWIVEL BRACKET A

5040444

$110.66

12

STOPPER

5040424

$5.40

13

LEVER

5040412

$9.65

14

SPRING PIN 2-12

5041684

$4.26

15

SPRING

5040425

$13.76

16

BOLT

5041585

$7.10

17

* WASHER

5041668

$1.38

18

BOLT 8-122

5040016

$10.80

19

NYLON NUT

5041655

$2.00

20

Washer 8.5-28-1

5040011

$4.39

21

SPACER

5040017

$22.94

22

* NUT | Use with extention kit

5041649

$2.56

23

* WASHER

5041668

$1.38

24

THRUST SUPPORTER

5040409

$14.27

25

DAMPER (LOWER)

5040408

$45.89

26

THRUST ROD ASSEMBLY

5040808

$20.62

27

SWIVEL BRACKET B

5040445

$19.00

28

FRICTION PIECE

5040018

$13.76

29

SPRING, Friction Plate

5040019

$11.72

30

* WASHER

5041668

$1.38

31

Screw Friction Plate

5040024

$7.99

32

BUSHING PIVOT

5040410

$11.72

33

Bushing Upper Steering

5040234

$27.02

34

THRUST BUSHING

5041018

$22.43

35

BOLT

5041320

$2.00
