Description

Price

1

OILPAN ASSEMBLY

5040437

$312.62

2

* OIL SIGHT GAUGE

5040398

$20.39

3

* DOWEL PIN 6-12

5040056

$1.50

4

Drain Bolt

5041013

$11.72

5

Washer

5040995

$5.40

6

OILPAN GASKET

5040397

$40.28

7

* BOLT

5041576

$1.25

8

BRACKET STOPPER

5040918

$31.61

9

COLLAR 6.2-9-7.4 | PL

5040248

$3.69

10

* BOLT | R, TE

5041560

$5.40

11

Hose

5041730

$13.25

12

CLIP Fuel Hose 10

5040051

$3.69

13

DRIVE SHAFT HOUSING GASKET

5040407

$22.94

14

CRANKCASE HEAD

5040372

$49.46

15

Oil Seal 10.1-20-7

5040373

$8.00

16

O-Ring 2.4-35.2

5041275

$4.26

17

* BOLT | R, TE

5041560

$5.40

18

Oil Seal 20-35-7

5040368

$12.63

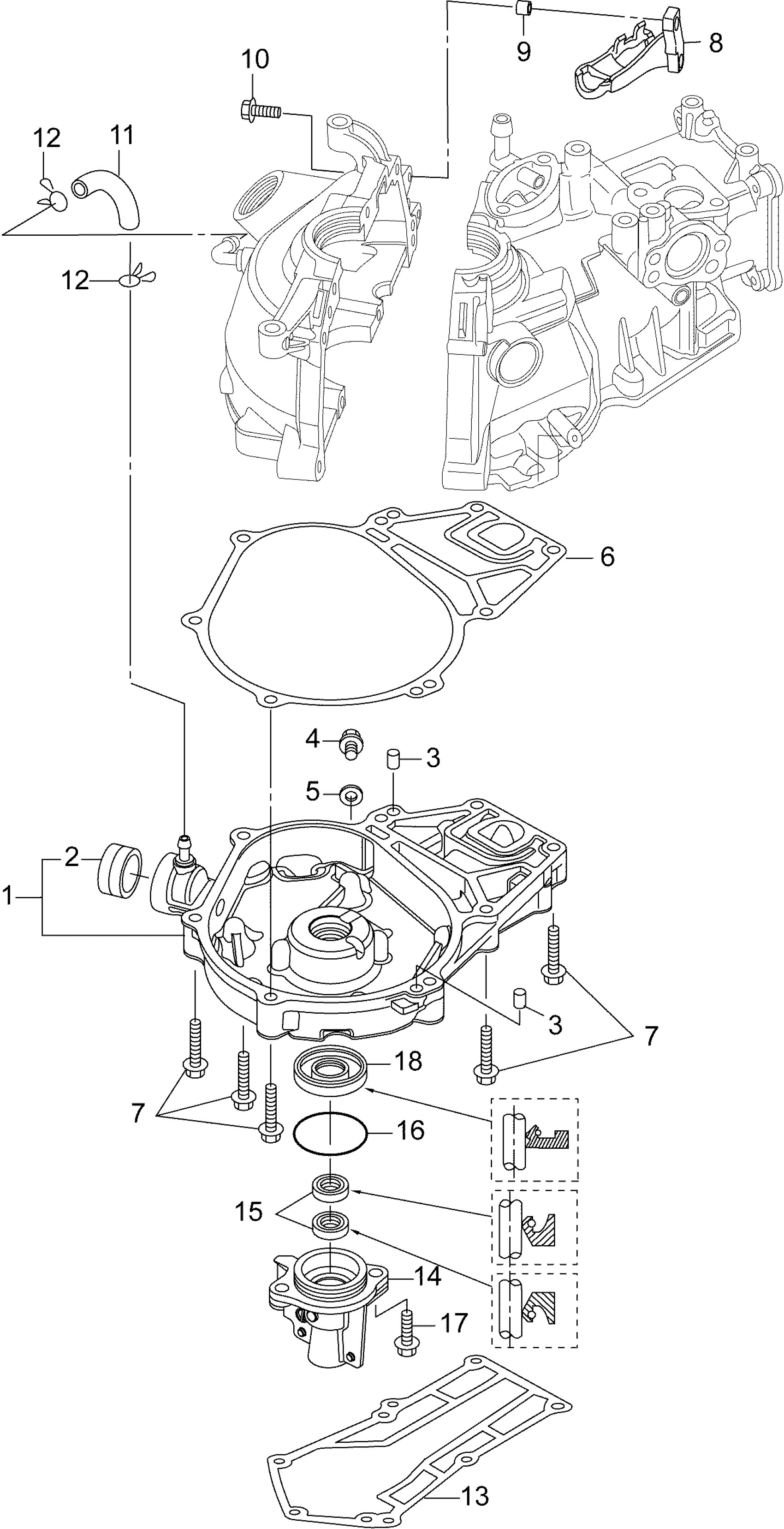

Evinrude E3R4INS 15-5_OIL PAN Diagram

OILPAN ASSEMBLY

* OIL SIGHT GAUGE

* DOWEL PIN 6-12

Drain Bolt

Washer

OILPAN GASKET

* BOLT

BRACKET STOPPER

COLLAR 6.2-9-7.4 | PL

* BOLT | R, TE

Hose

CLIP Fuel Hose 10

DRIVE SHAFT HOUSING GASKET

CRANKCASE HEAD

Oil Seal 10.1-20-7

O-Ring 2.4-35.2

* BOLT | R, TE

Oil Seal 20-35-7
