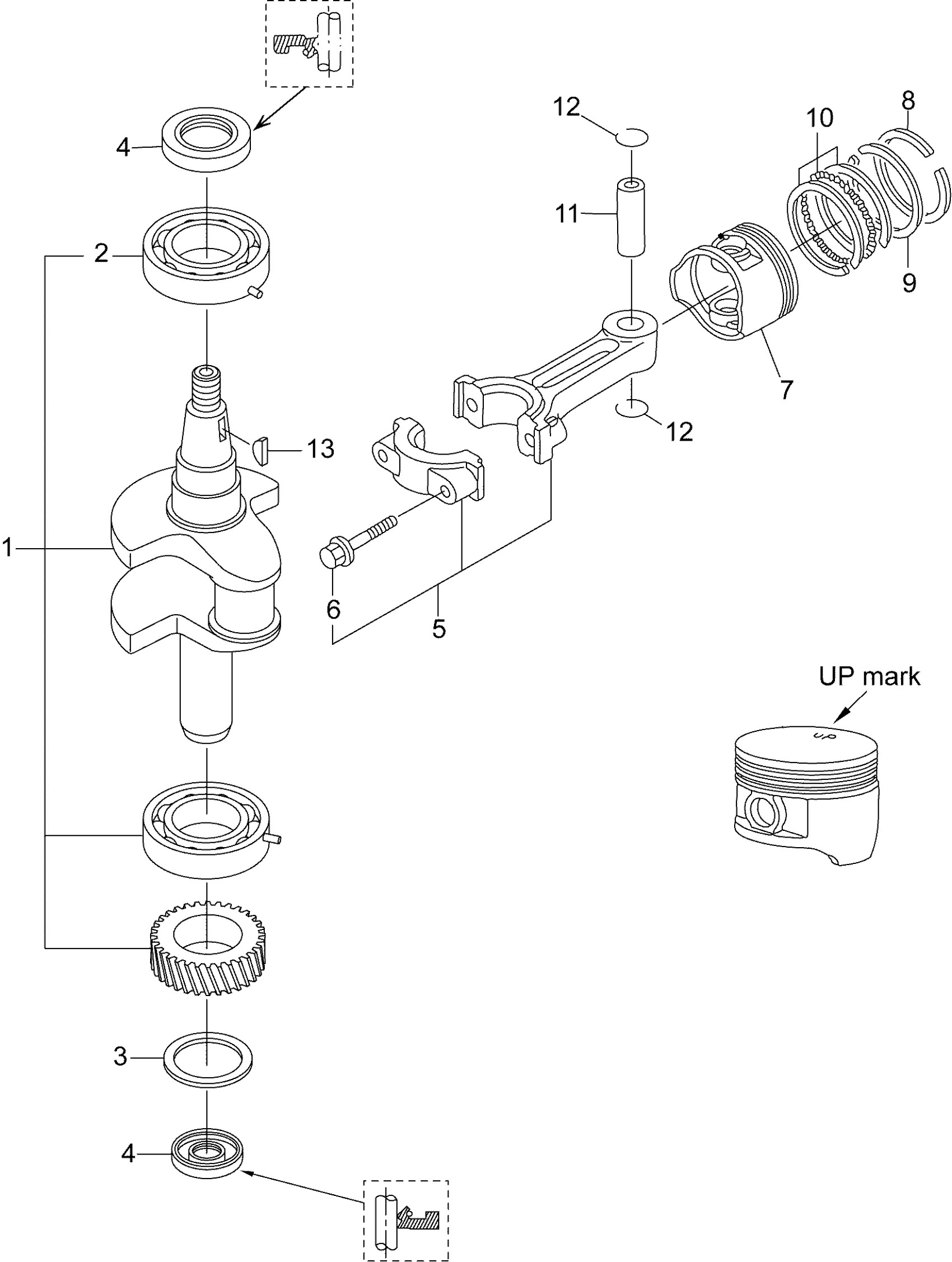

Evinrude E3R4INS 15-2_CRANKSHAFT & PISTON Diagram

#

Description

Price

1

CRANKSHAFT AND GEAR ASSEMBLY

5040366

$165.00

2

* BALL BEARING 6204

5041708

$16.25

3

Thrust Plate 20.2-32-1

5040367

$8.52

4

Oil Seal 20-35-7

5040368

$12.63

5

CONNECTING ROD ASSEMBLY

5040364

$65.01

6

* CONNECTING ROD BOLT

5040365

$8.52

7

PISTON | Standard size

5040363

$24.00

8

PISTON RING (Standard Size) 1st | Standard size

5041261

$36.20

9

PISTON RING (Standard Size) 2nd | Standard size

5041262

$36.20

10

PISTON RING-OIL | Standard size

5041263

$40.79

11

PISTON PIN

5040028

$5.00

12

PISTON PIN CLIP

5040088

$1.50

13

KEY (MAGNETO

5040012

$5.42
