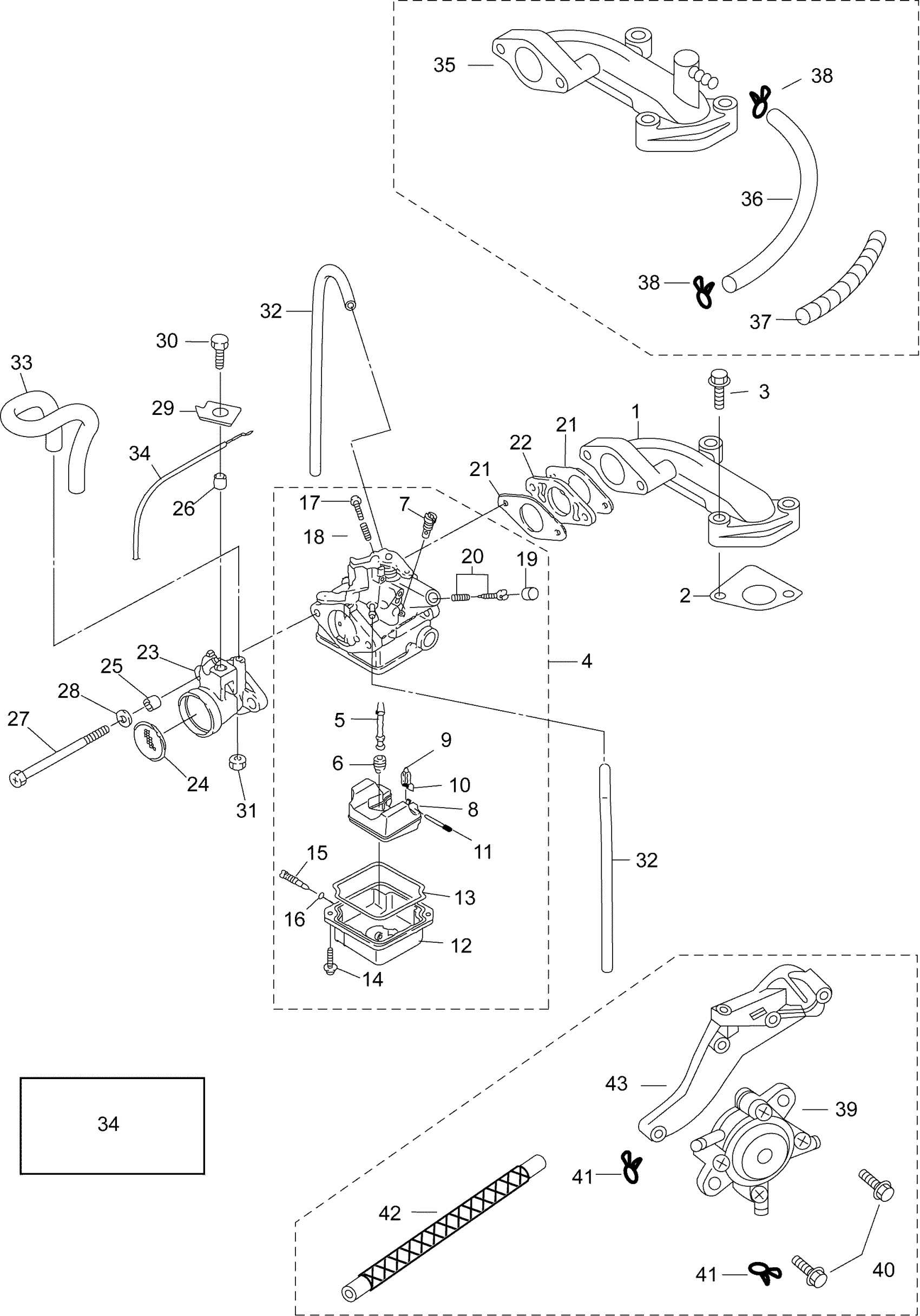

Evinrude E3R4INS 15-1_INTAKE MANIFOLD & CARBURETOR Diagram

#

Description
Price

1

INTAKE MANIFOLD

5040755

$123.41

2

INTAKE MANIFOLD GASKET

5040374

$3.00

3

BOLT

5041575

$2.56

4

CARBURETOR ASSEMBLY

5040940

$399.32

5

* MAIN NOZZLE

5041245

$27.02

6

* MAIN JET (#68)

5040503

$22.43

7

* SLOW AIR JET (#115)

5040916

$24.47

8

* FLOAT

5040912

$43.85

9

* FLOAT VALVE

5040970

$22.94

10

* CLIP

5040971

$5.40

11

* FLOAT ARM PIN

5040969

$5.40

12

* FLOAT CHAMBER

5040911

$62.21

13

* FLOAT CHAMBER O-RING

5040967

$13.25

14

* SCREW

5041643

$1.50

15

* DRAIN SCREW

5040974

$8.52

16

* O-Ring Drain Screw

5040975

$4.83

17

* STOP SCREW

5040376

$4.00

18

* Spring Stop Screw

5040973

$1.50

19

* RUBBER CAP

5040914

$13.76

20

* PILOT SCREW

5040377

$24.98

21

CARBURETOR GASKET

5040959

$6.54

22

INSULATOR

5040976

$5.40

23

INTAKE SILENCER

5040964

$12.74

24

FLAME TRAP

5040965

$7.95

25

COLLAR 6.2-9-7.4 | PL

5040248

$3.69

26

Collar 6.2-9-7

5041043

$4.83

27

BOLT

5041589

$3.69

28

* WASHER

5041661

$3.13

29

CABLE HOLDER

5041025

$5.97

30

* BOLT

5041524

$4.26

31

* NUT

5041647

$1.25

32

Hose

5041729

$19.88

33

BREATHER HOSE

5040401

$17.84

34

CARBURETOR REPAIR KIT

5040929

$77.00

35

INTAKE MANIFOLD | Late Models

5040932

$39.00

36

Hose

5041731

$8.00

37

HOSE PROTECTOR | Late Models

5041392

$11.72

38

CLIP 12

5040757

$1.50

39

FUEL PUMP ASSEMBLY | Late Models

5040915

$126.98

40

* BOLT | R, TE

5041560

$5.40

41

CLIP Fuel Hose 10

5040051

$3.69

42

FUEL HOSE PROTECTOR | US EPA Approved Fuel Hose

5040907

$8.00

43

THERMOSTAT CAP | Late Models

5040930

$8.00

NS

ALTITUDE ADJUSTMENT KIT

5040941

$56.09
