Description

Price

1

RECOIL STARTER ASSEMBLY

5040385

$139.22

2

* STARTER SEAL

5040339

$20.90

3

* STARTER SPRING

5040379

$12.00

4

* REEL

5040386

$10.00

5

* Starter Rope 3.5-1200

5040383

$16.31

6

* RATCHET

5040378

$4.00

7

* RETURN SPRING

5040382

$6.54

8

* FRICTION PLATE

5040380

$2.00

9

* BOLT

5040389

$2.00

10

* FRICTION SPRING

5040381

$2.00

11

* STARTER HANDLE

5040384

$5.00

12

* ROPE ANCHOR

5040387

$5.00

13

* ROPE ANCHOR PLATE

5040388

$2.00

14

PRE COATED BOLT

5040922

$4.26

15

* Washer 6-16-1.5

5040773

$5.97

16

Clamp 6.5-67P

5040242

$5.97

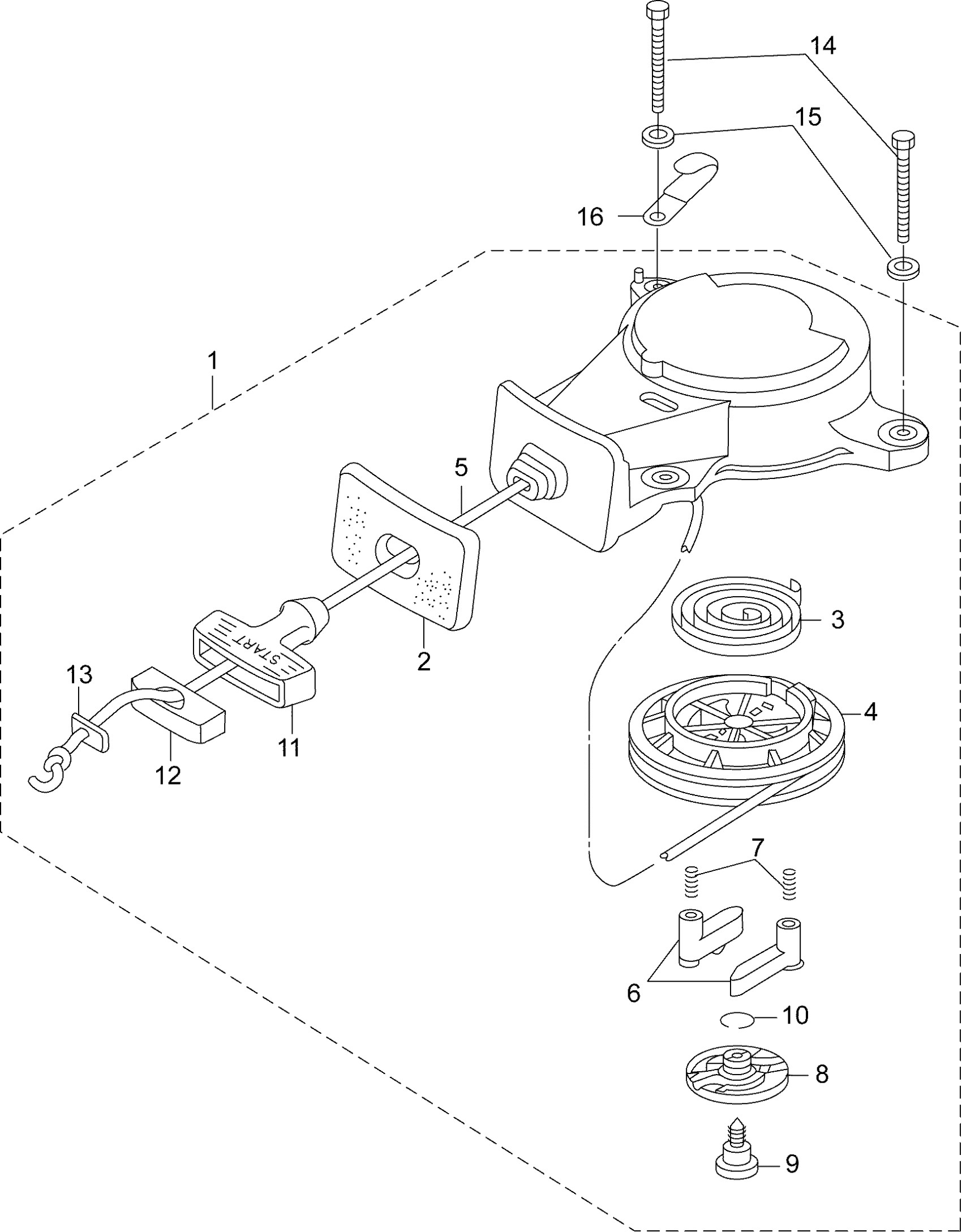

Evinrude E3R4INS 15-0_RECOIL STARTER Diagram

RECOIL STARTER ASSEMBLY

* STARTER SEAL

* STARTER SPRING

* REEL

* Starter Rope 3.5-1200

* RATCHET

* RETURN SPRING

* FRICTION PLATE

* BOLT

* FRICTION SPRING

* STARTER HANDLE

* ROPE ANCHOR

* ROPE ANCHOR PLATE

PRE COATED BOLT

* Washer 6-16-1.5

Clamp 6.5-67P
