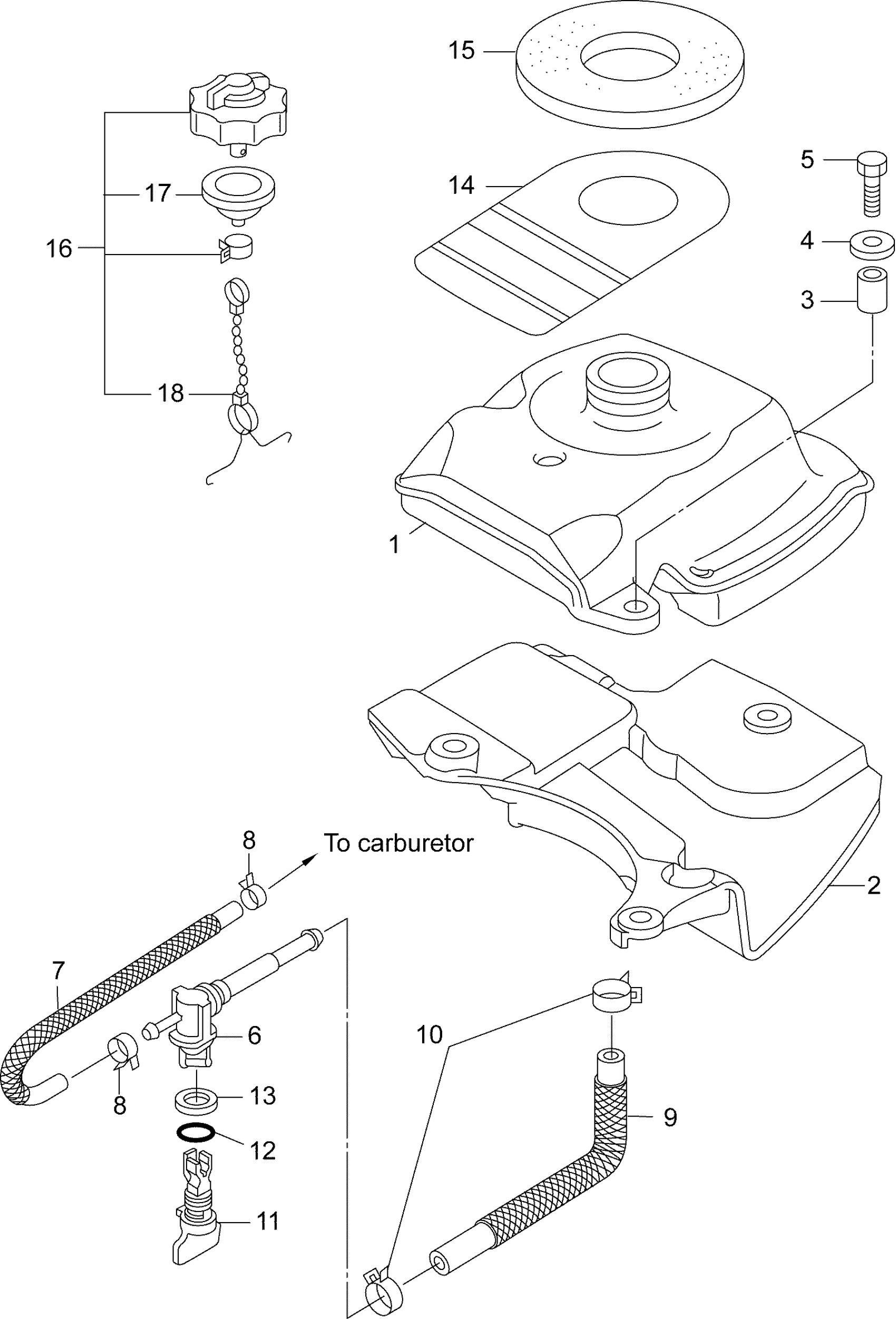

Evinrude E3R4INS 13-1_FUEL TANK ASSEMBLY Diagram

#

Description
Price

1

FUEL TANK ASSEMBLY

5040430

$138.71

2

Cover Fuel Tank

5040392

$50.99

3

COLLAR 6.2-9-10.7

5041255

$4.83

4

* Washer 6-16-1.5

5040773

$5.97

5

* BOLT

5041549

$3.69

6

FUEL VALVE ASSEMBLY

5040210

$49.46

7

FUEL HOSE | Not available in North America

5040927

$13.25

7

FUEL HOSE PROTECTOR | US EPA Approved Fuel Hose

5040907

$8.00

8

*Clip

5040403

$7.37

9

FUEL HOSE | Not available in North America

5040926

$20.39

9

FUEL HOSE W/PROTECTOR | US EPA Approved Fuel Hose

5040909

$54.56

10

CLIP 15

5040375

$6.54

11

FUEL VALVE KNOB

5040924

$14.27

12

O-Ring 2.0-10.0

5040838

$4.26

13

Seal Ring Fuel Valve Rod Knob

5040208

$7.37

14

CAUTION TAG (B)

5040432

$12.74

15

FUEL TANK SEAL

5040429

$4.00

16

FUEL TANK CAP ASSEMBLY

5041249

$34.16

17

* TANK FILLER CAP GASKET

5040023

$4.00

18

* Hook Tank Cap

5040776

$18.35
