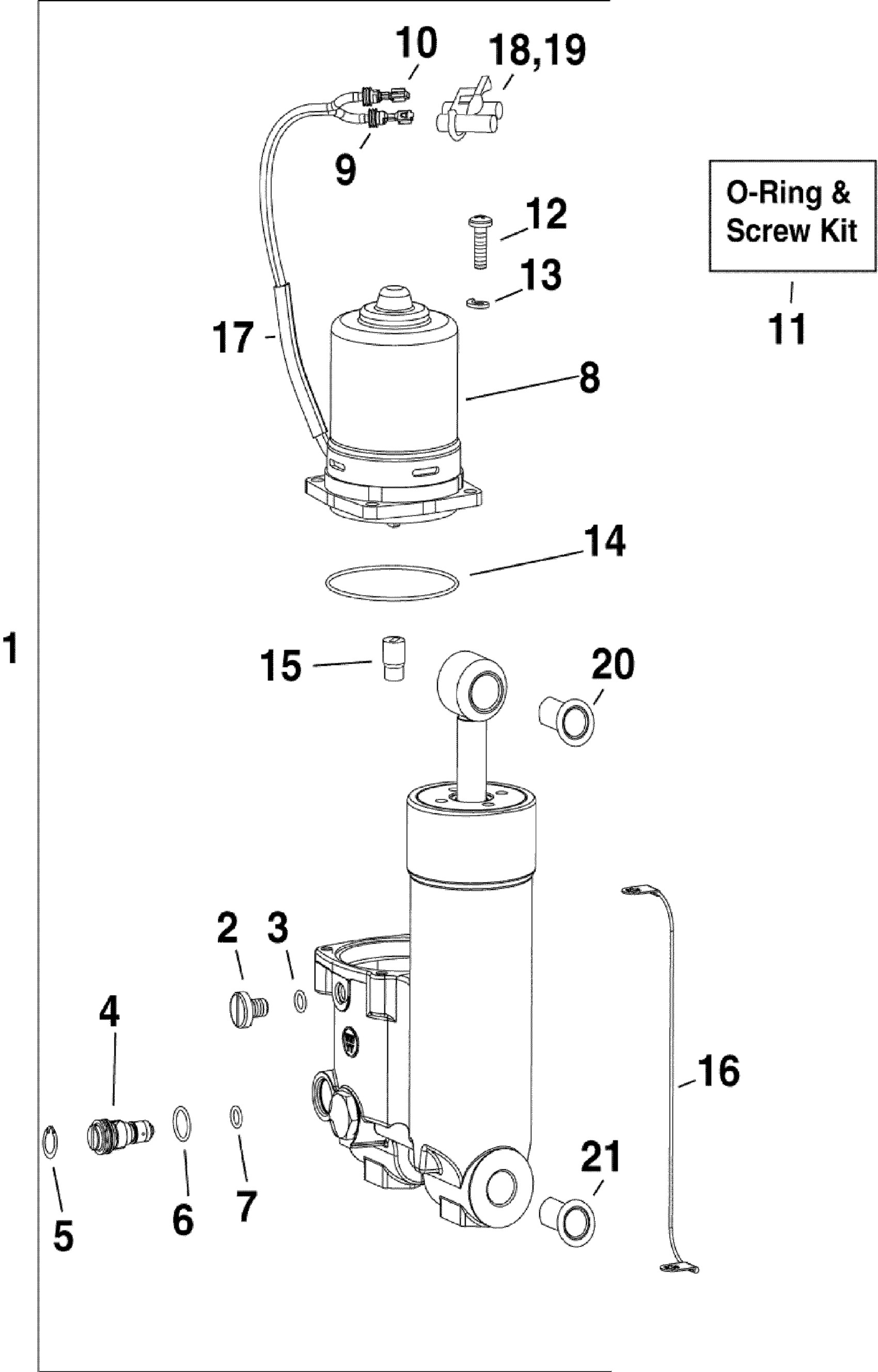

Evinrude E30DPLINA TRIM & TILT HYDRAULIC ASSEMBLY Diagram

#

Description
Price

1

HYDRAULIC Assembly

5009034

$1,492.25

1

HYDRAULIC Assembly

5009035

$2,310.29

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

*VALVE Assembly, Manual release

5007781

$62.21

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

*MOTOR & MOTOR O-RING KIT

5008227

Unavailable

8

**MOTOR Assy

5005831

$209.99

9

****SEAL, Wire

3010023

$7.95

10

****TERMINAL

0514823

$5.55

11

**MOTOR O-RING & SCREW KIT

5006479

$78.02

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

**LEAD, Bonding

0582499

$18.35

17

***SLEEVE, Motor cable/sending unit

0512259

$22.94

18

**CONNECTOR, 2 Position, Motor lead

3010049

$16.31

19

**SECONDARY LOCK

3010050

$7.95

20

*BUSHING, Cylinder to bracket

0332436

$11.72

NS

** TIE STRAP

0320107

$0.32

21

*BUSHING, CYLINDER TO BRACKET

0332434

$11.72
