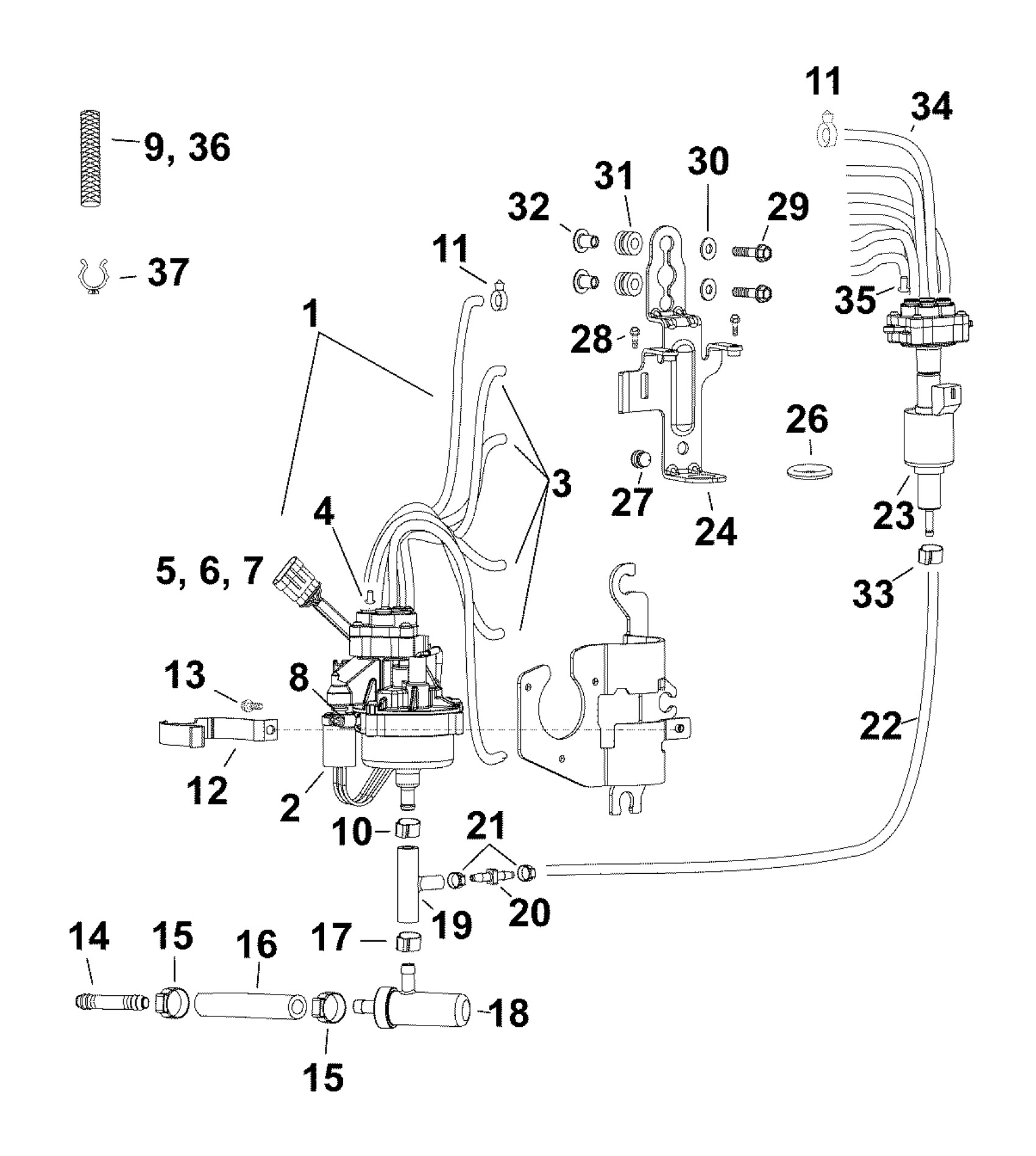

Evinrude E300DPZINM OIL PUMP (3.4 L) Diagram

#

Description
Price

1

OIL PUMP

5008418

$731.84

2

*SENSOR

0586860

$114.87

3

**HOSE | 12 in. (305mm)

0778708

$5.79

4

*HOSE, Support

0349898

$4.11

5

***CONTACT, Tab

3011148

$6.54

6

***SEAL, Wire

3011149

$11.72

7

***CAP, 5 Position

3011267

$22.94

8

** CLAMP

0982115

$6.54

9

*SLEEVE | 10 in. (254mm)

0512937

$9.65

10

** CLAMP

0346786

$3.40

11

** TIE STRAP

0317893

$0.36

12

CLAMP, Capacitor

0514891

$9.65

13

*SCREW, Air temperature sensor

0332226

$9.65

14

FITTING, Fuel hose

0358042

$3.69

15

**CLAMP, 14.5 mm

0346785

$3.43

16

**FLEXIBLE, alimentation en huile | Cut to length from bulk roll

0778707

$8.45

17

** CLAMP

0346786

$3.40

18

Kit

5011891

$13.25

19

TEE, Oil filter to pump

0355746

$7.95

20

FITTING, Tee to rear pump

0355832

$2.56

21

***CLAMP, 10.5 mm

0348838

$3.60

22

**HOSE

0772571

$4.06

23

OIL PUMP Assembly, Rear

5008520

$305.99

24

BRACKET KIT, Rear oil pump

5008575

$30.59

25

Not Available As Spare Part - Friction Washer

Unavailable

26

**GROMMET, ESM Mounting

0329518

$9.65

27

BUMBER, Exhaust manifold

0314021

$7.95

28

SCREW

0315287

$9.65

29

SCREW, Pump bracket

0352102

$6.54

30

**WASHER, Screw hook

0328703

$6.78

31

*ISOLATOR

0333040

$9.65

32

*ENTRETOISE, à collerette

0338558

$14.27

33

***CLAMP, 10.5 mm

0348838

$3.60

34

**HOSE | 12 in. (305mm)

0778708

$5.79

35

*HOSE, Support

0349898

$4.11

36

*SLEEVE, Braided | 28 in. (711mm)

0508363

$41.49

37

*CLIP

3011450

$6.54

NS

** TIE STRAP

0320107

$0.32
