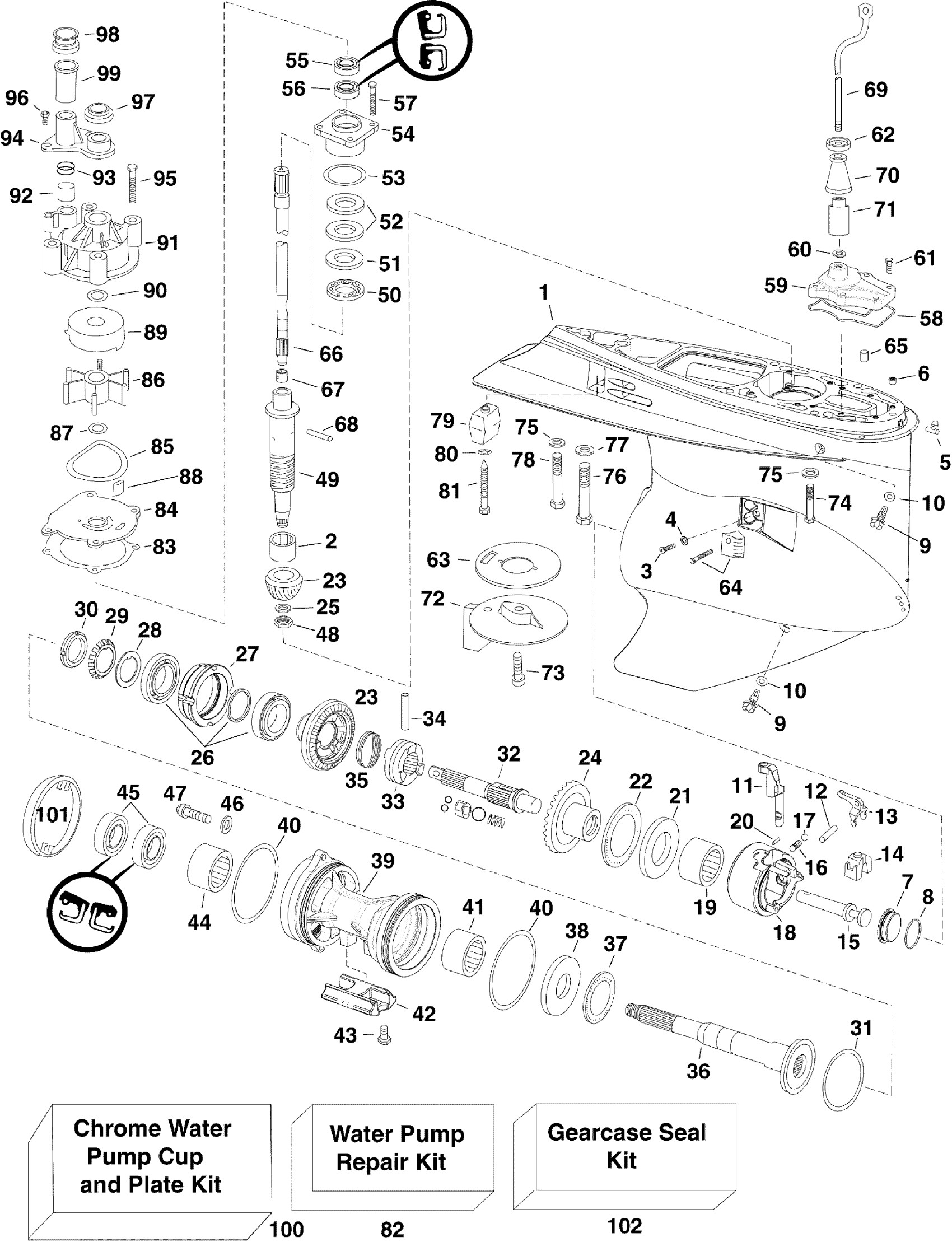

Evinrude E300DCZINM GEARCASE, M2-Type, Counter Rotation Diagram

GEARCASE Assembly, Complete | Less Upper Driveshaft and Shift Shaft

5009368

$5,875.70

*GEARCASE & BEARING Assembly

5009085

$1,559.06

**BEARING, Pinion

0387817

$69.49

***RETAINING SCREW & SEAL

0324852

$8.56

****WASHER, Seal ring

0332584

$3.44

**FITTING, Pitot tube

0336535

$7.22

* PLUG

0321164

$17.33

**PLUG, Gearcase | Contents of GEARCASE SEAL KIT.

5007386

$38.24

***O-Ring | Contents of Gearcase Seal Kit

0354731

$5.67

**SCREW, Fill & drain

0318544

$21.99

***SEAL | Contents of Gearcase Seal Kit

0311598

$1.58

*DETENT, Shift

0353375

$110.15

*PIN, Shift lever

0353973

$14.27

*LEVER, Shift

0334160

$95.87

**CRADLE, Shifter

0334163

$27.49

*SHAFT, Shift

0348484

$85.16

*SPRING

0911962

$4.11

**BALL

0160084

$6.23

*BEARING HOUSING Assembly, Reverse Gear

5007370

$286.61

** BEARING, Forward Gear

0389039

$89.49

**PIN, Housing

0353338

$6.54

*THRUST WASHER, Forward gear

0353039

$26.49

*THRUST BEARING, Forward gear

0391473

$176.45

**GEAR SET, Fwd, Rev, Pinion

5007388

$1,238.27

**GEAR, Reverse

5008224

$310.07

***WASHER, Pinion nut

0350038

$3.13

**BEARING & SPACER, Forward Gear

5007359

$196.85

**HOUSING, Forward gear bearing

0352713

$422.78

**THRUST WASHER

0353551

$55.58

**WASHER, Lock

0353336

$20.39

**NUT, Spanner

0353096

$77.51

**SHIM, 0.003 in. (0,07mm)

0353097

$13.25

**SHIM, 0.004 in. (0,10mm)

0353098

$9.65

**SHIM, 0.005 in. (0,12mm)

0353099

$13.25

**SHIM, 0.01 in. (0,25mm)

0353334

$13.25

*CLUTCH SHAFT Assembly

5007404

$337.10

*SHIFTER, Clutch dog

0337774

$150.99

**PIN, Clutch dog

0313448

$6.89

**SPRING, Clutch dog pin

0324369

$6.23

*PROPELLER SHAFT

5007360

$460.01

**THRUST BEARING

0382408

$11.99

**THRUST WASHER

0313447

$17.49

*BEARING HOUSING Assembly, Propshaft

5007372

$476.33

** O-RING, Propshaft housing | Contents of GEARCASE SEAL KIT.

0911700

$10.49

**NEEDLE BEARING Assembly, Front

0431926

$42.32

***ANODE, Bearing housing

0431708

$23.99

***SCREW, Anode

0908158

$5.11

**BEARING, Propshaft

0436752

$20.99

**SEAL | Contents of Gearcase Seal Kit

0334950

$23.49

**RONDELLE

0328743

$5.97

*SCREW, Propshaft housing

0353355

$21.41

**NUT, Pinion to driveshaft

0314730

$18.49

*DRIVESHAFT, Lower

0356900

$235.49

*BUTÉE, arbre d'entraînement

0387656

$47.49

*RONDELLE DE BUTÉE, arbre d'entraînement

0327656

$17.49

*CALE, 0,003" (0,07 mm)

0323362

$6.23

*CALE, 0,004" (0,10 mm)

0323361

$6.67

*CALE, 0,005" (0,12 mm)

0314745

$6.78

***O-Ring | Contents of Gearcase Seal Kit

0354731

$5.67

*BEARING HOUSING & SEAL

0439476

$140.99

**JOINT, supérieur | Contents of Gearcase Seal Kit

0329922

$12.49

**JOINT, inférieur | Contents of Gearcase Seal Kit

0329923

$13.49

*SCREW, Driveshaft hsg

0317624

$4.00

*SEAL, Shift rod cover | Contents of GEARCASE SEAL KIT.

0353162

$7.95

*COVER, Shift rod

5007367

$89.24

"O" RING, Shift rod | Contents of Gearcase Seal Kit

0318372

$3.44

**SCREW, Cover to gearcase

0328725

$7.37

*GROMMET, Exh hsg to shift rod

0321008

$6.33

*SEAL, Trim tab

0331409

$17.33

**WATER SCREEN KIT, Ultra High Flow | Optional accessory

5006337

$30.08

***SCREEN, Wtr intake-port

0350946

$9.65

***SCREEN, Wtr intake-stbd

0350945

$9.65

***SCREW, Water intake screens

0337061

$6.23

**WATER SCREEN KIT, High Flow

5005063

$30.08

***SCREEN, Wtr intake-port

0350264

$13.25

***SCREEN, Wtr intake-stbd

0350265

$13.25

**WATER SCREEN KIT, High Perf. | Optional accessory

5005124

$30.08

***SCREEN, Wtr intake-port

0348479

$9.65

***SCREEN, Wtr intake-stbd

0348480

$9.65

WATER SCREEN KIT, Ultra-high flow (+0.410 in) | Optional accessory

5011694

$31.61

WATER SCREEN KIT, Ultra-high flow (+0.410 in) | Optional accessory

5011694

$31.61

* PIN

0350943

$14.27

DRIVESHAFT Assembly, Upper

5007672

$483.98

DRIVESHAFT ASSEMBLY, Upper

5007673

$1,267.63

**RETAINER, Driveshaft

0338504

$6.23

**ROLL PIN, Driveshaft

0311538

$6.23

SHIFT ROD

0347301

$106.58

SHIFT ROD

0347391

$105.05

*SPACER, Shift rod

0321122

$14.27

*EXTENSION, Shift rod spacer

0339346

$70.37

TRIM TAB

0338743

$64.25

SCREW, Cap, hex hd, 7/16-14 x 1

0313715

$12.99

SCREW, Gearcase housing

0331999

$10.99

**WASHER, Trail lock lever

0330266

$9.65

SCREW, Gearcase to housing

0331998

$30.08

*WASHER

0330265

$6.23

*SCREW, Upper mount retention

0330263

$18.19

**ANODE

0436745

$23.49

**LOCK WASHER, Anode

0307161

$2.55

**SCREW, Anode

0341219

$13.99

Water Pump Repair Kit

5001595

$107.79

WATER PUMP REPAIR KIT | 3.4 L models

5007972

$163.19

*GASKET, Imp. hsg. Plate | Contents of Gearcase Seal Kit

0338484

$4.56

*PLATE, Impeller

0338485

$15.49

Seal, Impeller Housing Plate.

0331353

$12.49

*IMPELLER Assembly

5001593

$48.81

"O" RING, Spacer to imp. hsg.

0302035

$4.00

**CLAVETTE, turbine

0331107

$1.32

*COUPELLE, turbine (inox)

0338486

$18.49

O-Ring | Included in Cyl/Crankcase Gasket & Seal Kit

0331188

$5.67

*HOUSING, Impeller

0360347

$21.99

*BAGUE, tube à eau vers capot

0314008

$3.77

*O-RING, Water tube | 3.4 L models

0346865

$1.77

*COVER, Impeller housing | 3.4 L models

0354578

$7.44

*CAPOT, carter de turbine

0338893

$11.49

**SCREW, Impeller housing

0302325

$6.23

*SCREW

0306643

$4.00

*BAGUE, pompe vers carter d'échap.

0320943

$11.15

*GROMMET, Sleeve to exh hsg

0338601

$6.78

* SLEEVE, Extension

0354580

$15.29

*SLEEVE, Extension

0354579

$16.31

CHROME CUP & PLATE KIT | Optional accessory

0435526

$205.01

*COUPELLE, turbine (chrome)

0338551

$101.48

*PLATE, Impeller

0338552

$109.64

Renegade Bass Weed Ring

0126669

$15.49

GEARCASE SEAL KIT

5007700

$155.03
