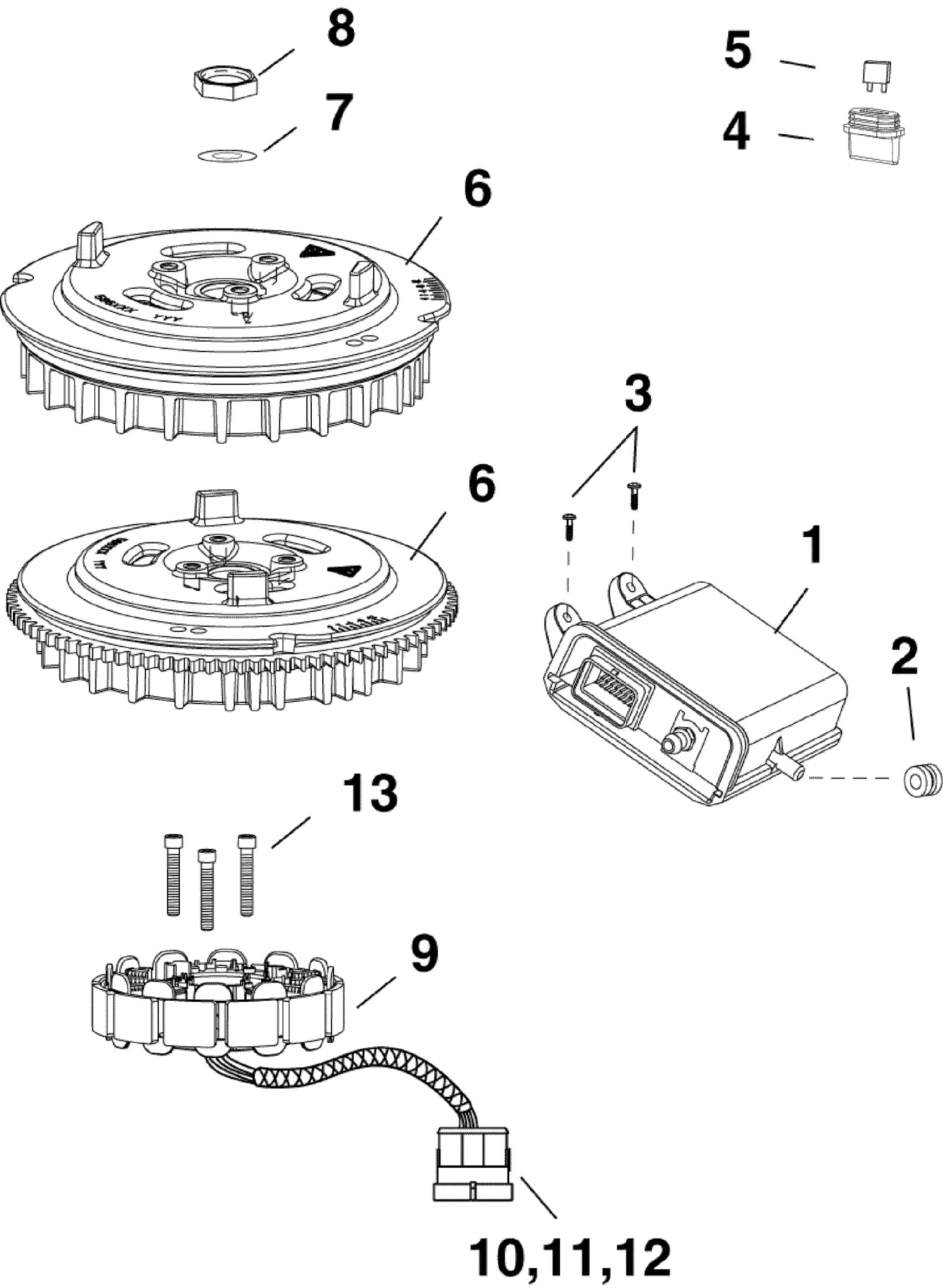

Evinrude E25DPSLINC EMM, STATOR, FLYWHEEL Diagram

#

Description

Price

1

EMM

0587126

$386.00

2

*ISOLATOR

0333040

$9.65

3

**SCREW

0315656

$9.65

4

**PLUG, Fuse

0514022

$11.72

5

**FUSE, 10 AMP

0967545

$3.33

6

FLYWHEEL

0587103

$764.48

6

*FLYWHEEL Assy

0587104

$772.13

7

WASHER, Flywheel nut

0352951

$9.65

8

NUT, Flywheel

0353602

$33.14

9

STATOR Assembly

0586918

$354.99

10

***CONTACT, Tab

3011148

$6.54

11

***SEAL, Wire

3011149

$11.72

12

**CONNECTEUR, EMM

3011421

$17.33

13

SCREW, Stator to C/C

0350992

$6.54
