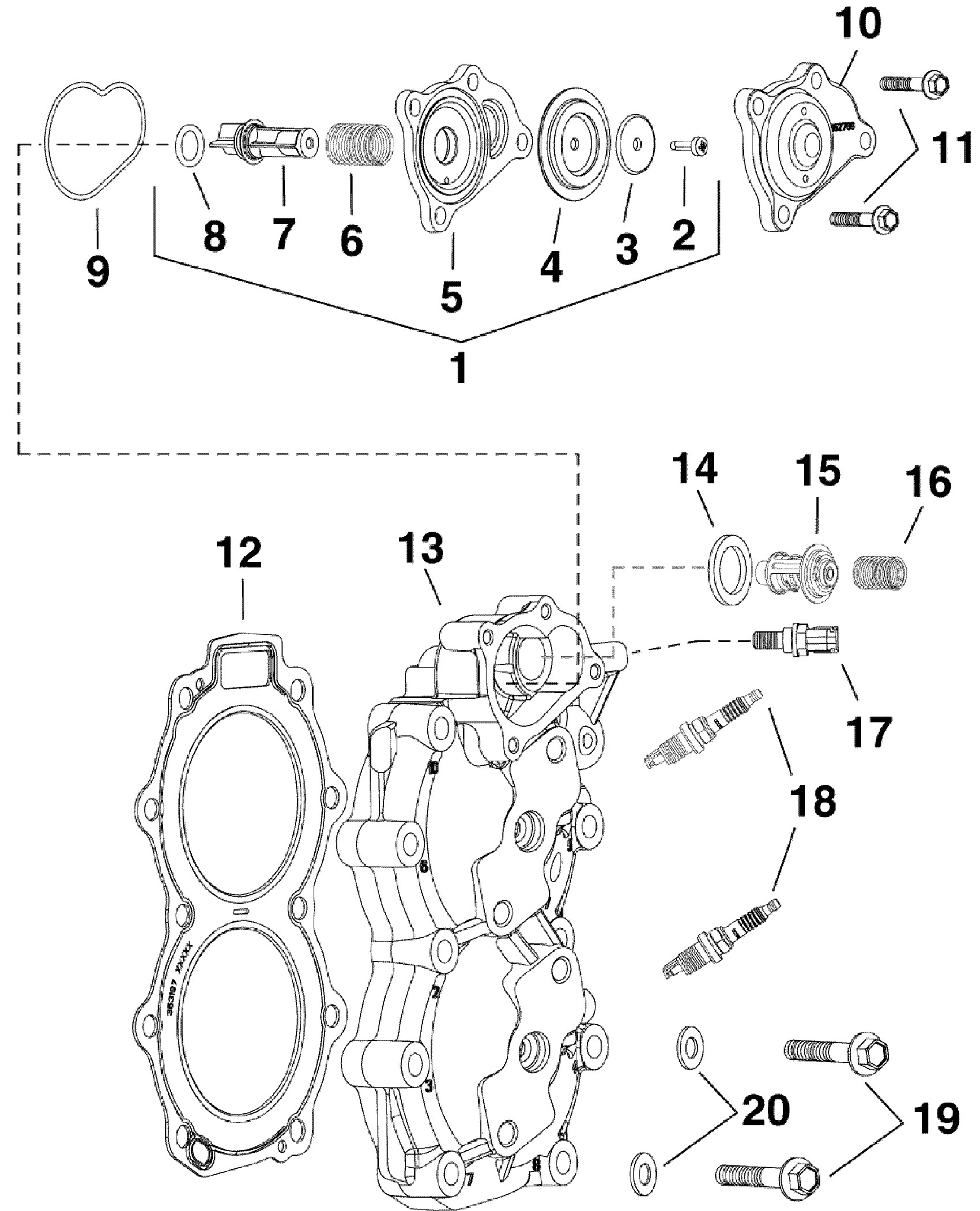

Evinrude E25DELINA CYLINDER HEAD & THERMOSTAT Diagram

#

Description
Price

1

VALVE Assembly, Cooling pressure relief

5008181

$22.43

2

**SCREW

0343245

$7.95

3

*SUPPORT, Diaphragm

0353597

$4.26

4

*DIAPHRAGM

0353596

$6.54

5

*PLATE, Housing

0353598

$14.27

6

*SPRING, Valve

0355169

$6.54

7

*PLUNGER, Valve

0353593

$7.95

8

**O-RING

0339543

$2.89

9

*SEAL, Thermostat cover

0352773

$4.18

10

COVER, Thermostat & pressure relief

0352768

$14.27

11

***SCREW

0353590

$6.54

12

*GASKET, Cylinder head

0353197

$25.49

13

CYLINDER HEAD

0355133

$617.09

NS

PIN, Fuel deflecting | C, G, R, or S suffix models

0354923

$15.99

NS

*PIN, Fuel deflector

0357518

$6.54

14

*GASKET | Included in Cyl/Crankcase Gasket & Seal Kit

0339044

$4.00

15

THERMOSTAT

5005440

$27.49

16

SPRING, T-Stat cover to T-Stat

0355209

$7.95

17

ENGINE TEMPERATURE SENSOR

3010674

$52.01

18

Spk Plug Qc10Wep | Refer to Emissions Control Information label

5011240

$21.49

19

SCREW, Cylinder head

0356278

$4.60

20

**WASHER, End cap screws

0353735

$4.26
