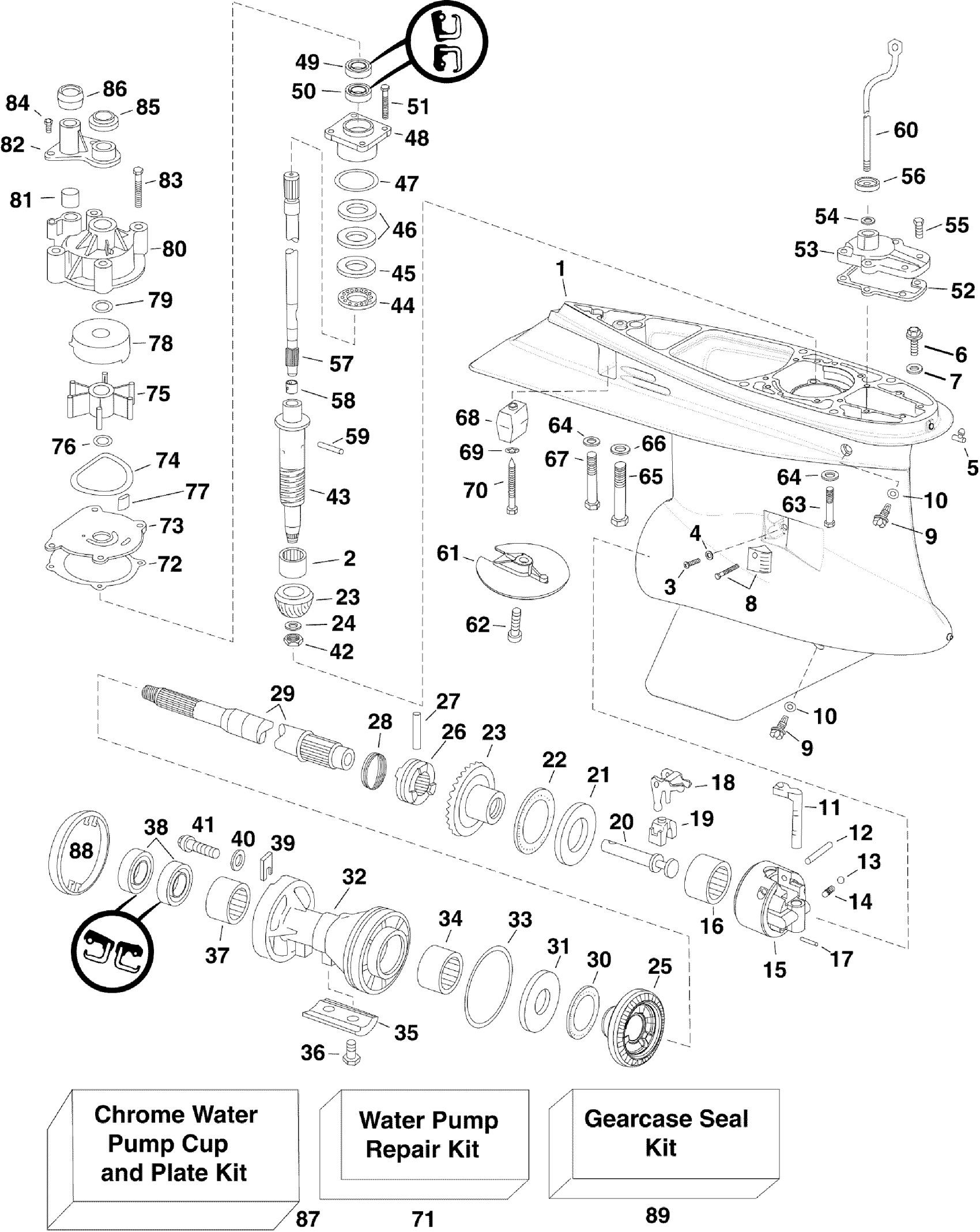

Evinrude E200HSLINE - (90° V6, 3.3 L) GEARCASE, L2-Type Diagram

GEARCASE Assembly, Complete | Less Upper Driveshaft and Shift Shaft

5009340

$7,149.68

GEARCASE Assembly, Complete | Less Upper Driveshaft and Shift Shaft

5009342

$6,545.33

*GEARCASE & BEARING Assembly

5007699

$2,139.49

**BEARING, Pinion

0387817

$69.49

***RETAINING SCREW & SEAL

0324852

$8.56

****WASHER, Seal ring

0332584

$3.44

**FITTING, Pitot tube

0336535

$7.22

**SCREW, Pitot seal

0341220

$6.54

**RONDELLE & JOINT, tube de Pitot

0437330

$9.65

**WATER SCREEN KIT, High Perf. | Optional accessory

5005124

$30.08

***SCREEN, Wtr intake-port

0348479

$9.65

***SCREEN, Wtr intake-stbd

0348480

$9.65

***SCREW, Water intake screens

0337061

$6.23

**WATER SCREEN KIT, High Flow

5005063

$30.08

**WATER SCREEN KIT, Ultra High Flow | Optional accessory

5006337

$30.08

WATER SCREEN KIT, Ultra-high flow (+0.410 in) | Optional accessory

5011694

$31.61

**SCREW, Fill & drain

0318544

$21.99

***SEAL | Contents of Gearcase Seal Kit

0311598

$1.58

*DETENT, Shifter

0353483

$84.65

*PIN, Shift lever

0328825

$9.01

**BALL

0160084

$6.23

*SPRING

0911962

$4.11

*BEARING HOUSING Assembly, Forward Gear

5007652

$176.96

** BEARING, Forward Gear

0389039

$89.49

***PIN, Housing to gearcase

0331880

$4.74

*LEVER, Shift

0322938

$55.99

**CRADLE, Shifter

0334163

$27.49

*SHAFT, Shift

0353484

$22.94

*THRUST WASHER, Forward gear

0327669

$47.99

*THRUST BEARING Assembly, Foward gear

0389042

$66.49

*GEAR SET, Forward, Pinion

5009114

$448.28

***WASHER, Pinion nut

0350038

$3.13

*GEAR, Reverse

0353544

$263.15

*SHIFTER, Clutch dog

0337774

$150.99

**PIN, Clutch dog

0313448

$6.89

**SPRING, Clutch dog pin

0324369

$6.23

*PROPELLER SHAFT

5007643

$447.60

**THRUST BEARING

0382408

$11.99

*RONDELLE DE BUTÉE, engrenage de marche arrière

0314731

$23.99

*BEARING HOUSING Assembly, Propshaft

5007637

$493.67

O RING | Contents of Gearcase Seal Kit

0305123

$5.67

***BEARING ASSY, Forward gear

0382407

$34.49

***ANODE, Bearing housing

0431708

$23.99

***SCREW, Anode

0908158

$5.11

**BEARING, Propshaft

0436752

$20.99

**SEAL | Contents of Gearcase Seal Kit

0334950

$23.49

*LANGUETTE, de retenue

0333957

$36.99

**RONDELLE

0328743

$5.97

*SCREW

0350271

$12.99

**NUT, Pinion to driveshaft

0314730

$18.49

*DRIVESHAFT, Lower

0345905

$277.49

*BUTÉE, arbre d'entraînement

0387656

$47.49

*RONDELLE DE BUTÉE, arbre d'entraînement

0327656

$17.49

*CALE, 0,003" (0,07 mm)

0323362

$6.23

*CALE, 0,004" (0,10 mm)

0323361

$6.67

*CALE, 0,005" (0,12 mm)

0314745

$6.78

***O-Ring | Contents of Gearcase Seal Kit

0354731

$5.67

*BEARING HOUSING & SEAL

0439476

$140.99

**JOINT, supérieur | Contents of Gearcase Seal Kit

0329922

$12.49

**JOINT, inférieur | Contents of Gearcase Seal Kit

0329923

$13.49

*SCREW, Driveshaft hsg

0317624

$4.00

*GASKET, Shift rod cover | Contents of Gearcase Seal Kit

0352165

$4.56

*COUVERCLE & JOINT, tige de commande de sens de marche

5006241

$60.17

"O" RING, Shift rod | Contents of Gearcase Seal Kit

0318372

$3.44

**SCREW, Cover to gearcase

0328725

$7.37

*GROMMET, Exh hsg to shift rod

0321008

$6.33

DRIVESHAFT Assembly, Upper

5007671

$352.40

**RETAINER, Driveshaft

0338504

$6.23

**ROLL PIN, Driveshaft

0311538

$6.23

SHIFT ROD

0329864

$122.39

COVER, Trim tab opening

0336284

$38.24

SCREW, Cap, hex hd, 7/16-14 x 1

0313715

$12.99

SCREW, Gearcase housing

0331999

$10.99

**WASHER, Trail lock lever

0330266

$9.65

SCREW, Gearcase to housing

0331998

$30.08

*WASHER

0330265

$6.23

*SCREW, Upper mount retention

0330263

$18.19

**ANODE

0436745

$23.49

**LOCK WASHER, Anode

0307161

$2.55

**SCREW, Anode

0341219

$13.99

Water Pump Repair Kit

5001595

$107.79

*GASKET, Imp. hsg. Plate | Contents of Gearcase Seal Kit

0338484

$4.56

*PLATE, Impeller

0338485

$15.49

Seal, Impeller Housing Plate.

0331353

$12.49

*IMPELLER Assembly

5001593

$48.81

"O" RING, Spacer to imp. hsg.

0302035

$4.00

**CLAVETTE, turbine

0331107

$1.32

*COUPELLE, turbine (inox)

0338486

$18.49

O-Ring | Included in Cyl/Crankcase Gasket & Seal Kit

0331188

$5.67

*HOUSING, Impeller

0360347

$21.99

*BAGUE, tube à eau vers capot

0314008

$3.77

*CAPOT, carter de turbine

0338893

$11.49

**SCREW, Impeller housing

0302325

$6.23

*SCREW

0306643

$4.00

*BAGUE, pompe vers carter d'échap.

0320943

$11.15

*GROMMET, Pump housing

0349354

$14.27

CHROME CUP & PLATE KIT | Optional accessory

0435526

$205.01

*COUPELLE, turbine (chrome)

0338551

$101.48

*PLATE, Impeller

0338552

$109.64

Renegade Bass Weed Ring

0126669

$15.49

GEARCASE SEAL KIT

5006373

$125.99
