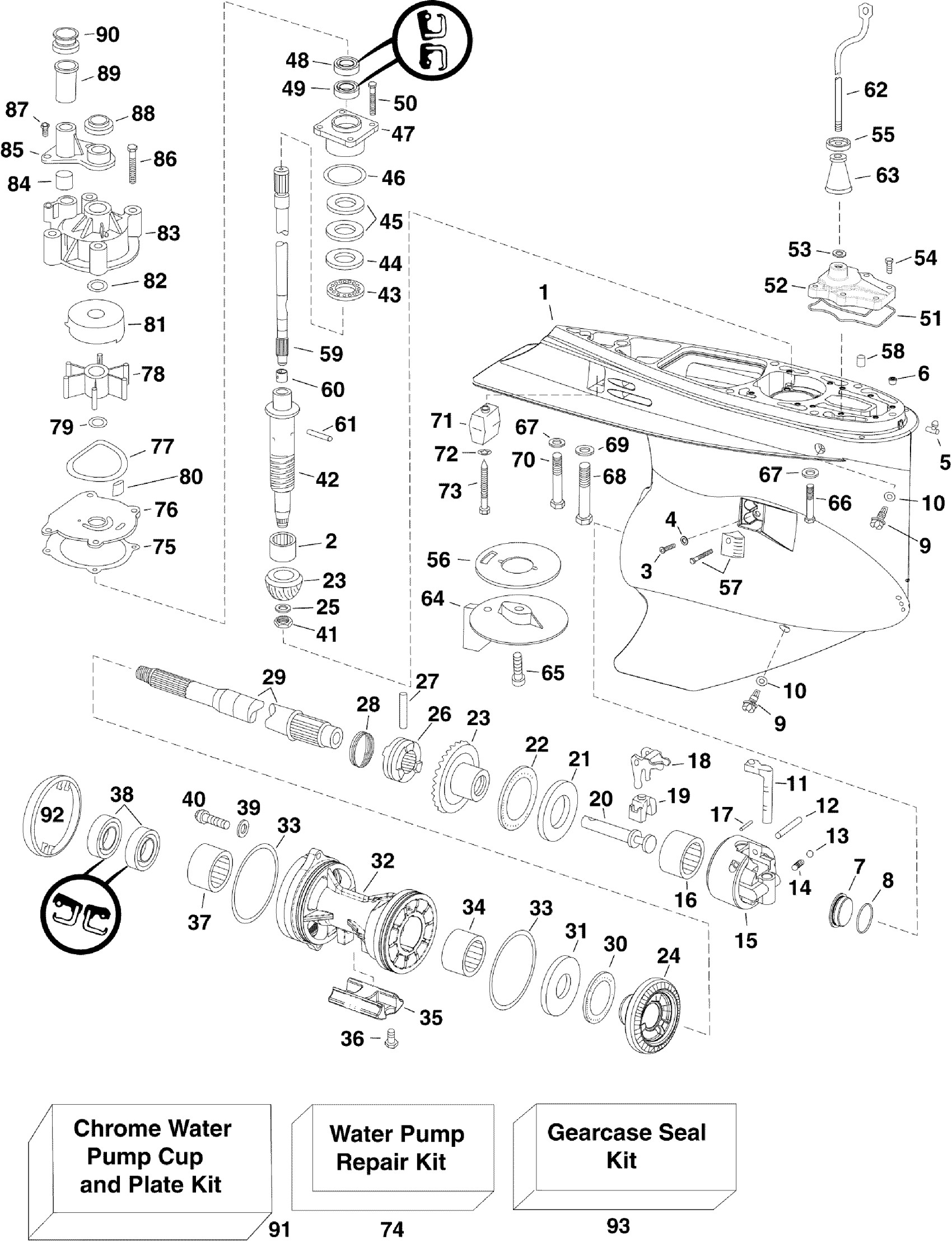

Evinrude E175DPXINE GEARCASE, M2-Type Diagram

#

Description
Price

-

GEARCASE ASSEMBLY, Complete | Less Upper Driveshaft and Shift Shaft

5009260

$5,875.70

-

GEARCASE ASSEMBLY, Complete | Less Upper Driveshaft and Shift Shaft

5009259

$5,875.70

1

*GEARCASE & BEARING Assembly

5009085

$1,559.06

2

**BEARING, Pinion

0387817

$69.49

3

***RETAINING SCREW & SEAL

0324852

$8.56

4

****WASHER, Seal ring

0332584

$3.44

5

**FITTING, Pitot tube

0336535

$7.22

6

* PLUG

0321164

$17.33

7

**PLUG, Gearcase | Contents of GEARCASE SEAL KIT.

5007386

$38.24

8

***O-Ring | Contents of Gearcase Seal Kit

0354731

$5.67

9

**SCREW, Fill & drain

0318544

$21.99

10

***SEAL | Contents of Gearcase Seal Kit

0311598

$1.58

11

*DETENT, Shifter

0356754

$101.48

12

*PIN, Shift lever

0328825

$9.01

13

**BALL

0160084

$6.23

14

*SPRING

0911962

$4.11

15

*BEARING HOUSING Assembly, Forward Gear

5007369

$187.16

16

** BEARING, Forward Gear

0389039

$89.49

17

**PIN, Housing

0353338

$6.54

18

*LEVER, Shift

0322938

$55.99

19

**CRADLE, Shifter

0334163

$27.49

20

*SHAFT, Shift

0348483

$58.13

21

*THRUST WASHER, Forward gear

0353039

$26.49

22

*THRUST BEARING, Forward gear

0391473

$176.45

23

*GEAR SET, Forward, Reverse, Pinion | Gearset 0.54 Ratio (13/24)

5007389

$1,763.57

24

**GEAR, Reverse

0347373

$228.98

25

***WASHER, Pinion nut

0350038

$3.13

26

*SHIFTER, Clutch dog

0337774

$150.99

27

**PIN, Clutch dog

0313448

$6.89

28

**SPRING, Clutch dog pin

0324369

$6.23

29

*PROPELLER SHAFT

5007643

$447.60

30

*THRUST BEARING Assembly, Foward gear

0389042

$66.49

31

*THRUST WASHER, Reverse gear

0349193

$34.16

32

*BEARING HOUSING Assembly, Propshaft

5007371

$480.92

33

** O-RING, Propshaft housing | Contents of GEARCASE SEAL KIT.

0911700

$10.49

34

***BEARING ASSY, Forward gear

0382407

$34.49

35

***ANODE, Bearing housing

0431708

$23.99

36

***SCREW, Anode

0908158

$5.11

37

**BEARING, Propshaft

0436752

$20.99

38

**SEAL | Contents of Gearcase Seal Kit

0334950

$23.49

39

**RONDELLE

0328743

$5.97

40

*SCREW, Propshaft housing

0353355

$21.41

41

**NUT, Pinion to driveshaft

0314730

$18.49

42

*DRIVESHAFT, Lower

0356900

$235.49

43

*BUTÉE, arbre d'entraînement

0387656

$47.49

44

*RONDELLE DE BUTÉE, arbre d'entraînement

0327656

$17.49

45

*CALE, 0,003" (0,07 mm)

0323362

$6.23

45

*CALE, 0,004" (0,10 mm)

0323361

$6.67

45

*CALE, 0,005" (0,12 mm)

0314745

$6.78

46

***O-Ring | Contents of Gearcase Seal Kit

0354731

$5.67

47

*BEARING HOUSING & SEAL

0439476

$140.99

48

**JOINT, supérieur | Contents of Gearcase Seal Kit

0329922

$12.49

49

**JOINT, inférieur | Contents of Gearcase Seal Kit

0329923

$13.49

50

*SCREW, Driveshaft hsg

0317624

$4.00

51

*SEAL, Shift rod cover | Contents of GEARCASE SEAL KIT.

0353162

$7.95

52

*COVER, Shift rod

5007367

$89.24

53

"O" RING, Shift rod | Contents of Gearcase Seal Kit

0318372

$3.44

54

**SCREW, Cover to gearcase

0328725

$7.37

55

*GROMMET, Exh hsg to shift rod

0321008

$6.33

56

*SEAL, Trim tab

0331409

$17.33

57

**WATER SCREEN KIT, High Flow

5005063

$30.08

-

***SCREEN, Wtr intake-port

0350264

$13.25

-

***SCREEN, Wtr intake-stbd

0350265

$13.25

-

***SCREW, Water intake screens

0337061

$6.23

57

**WATER SCREEN KIT, Ultra High Flow | Optional accessory

5006337

$30.08

-

***SCREEN, Wtr intake-port

0350946

$9.65

-

***SCREEN, Wtr intake-stbd

0350945

$9.65

57

WATER SCREEN KIT, Ultra-high flow (+0.410 in) | Optional accessory

5011694

$31.61

-

WATER SCREEN KIT, Ultra-high flow (+0.410 in) | Optional accessory

5011694

$31.61

57

**WATER SCREEN KIT, High Perf. | Optional accessory

5005124

$30.08

-

***SCREEN, Wtr intake-port

0348479

$9.65

-

***SCREEN, Wtr intake-stbd

0348480

$9.65

58

* PIN

0350943

$14.27

59

DRIVESHAFT Assembly, Upper

5007137

$352.40

60

**RETAINER, Driveshaft

0338504

$6.23

61

**ROLL PIN, Driveshaft

0311538

$6.23

62

SHIFT ROD

0352808

$59.15

63

*SPACER, Shift rod

0321122

$14.27

64

COMPENSATEUR DE DÉRIVE

0338742

$25.49

65

SCREW, Cap, hex hd, 7/16-14 x 1

0313715

$12.99

66

SCREW, Gearcase housing

0331999

$10.99

67

**WASHER, Trail lock lever

0330266

$9.65

68

SCREW, Gearcase to housing

0331998

$30.08

69

*WASHER

0330265

$6.23

70

*SCREW, Upper mount retention

0330263

$18.19

71

**ANODE

0436745

$23.49

72

**LOCK WASHER, Anode

0307161

$2.55

73

**SCREW, Anode

0341219

$13.99

74

Water Pump Repair Kit

5001595

$107.79

75

*GASKET, Imp. hsg. Plate | Contents of Gearcase Seal Kit

0338484

$4.56

76

*PLATE, Impeller

0338485

$15.49

77

Seal, Impeller Housing Plate.

0331353

$12.49

78

*IMPELLER Assembly

5001593

$48.81

79

"O" RING, Spacer to imp. hsg.

0302035

$4.00

80

**CLAVETTE, turbine

0331107

$1.32

81

*COUPELLE, turbine (inox)

0338486

$18.49

82

O-Ring | Included in Cyl/Crankcase Gasket & Seal Kit

0331188

$5.67

83

*HOUSING, Impeller

0360347

$21.99

84

*BAGUE, tube à eau vers capot

0314008

$3.77

85

*CAPOT, carter de turbine

0338893

$11.49

86

**SCREW, Impeller housing

0302325

$6.23

87

*SCREW

0306643

$4.00

88

*BAGUE, pompe vers carter d'échap.

0320943

$11.15

89

* SLEEVE, Extension

0354580

$15.29

90

*GROMMET, Sleeve to exh hsg

0338601

$6.78

91

CHROME CUP & PLATE KIT | Optional accessory

0435526

$205.01

-

*COUPELLE, turbine (chrome)

0338551

$101.48

-

*PLATE, Impeller

0338552

$109.64

92

Renegade Bass Weed Ring

0126669

$15.49

93

GEARCASE SEAL KIT

5007700

$155.03
