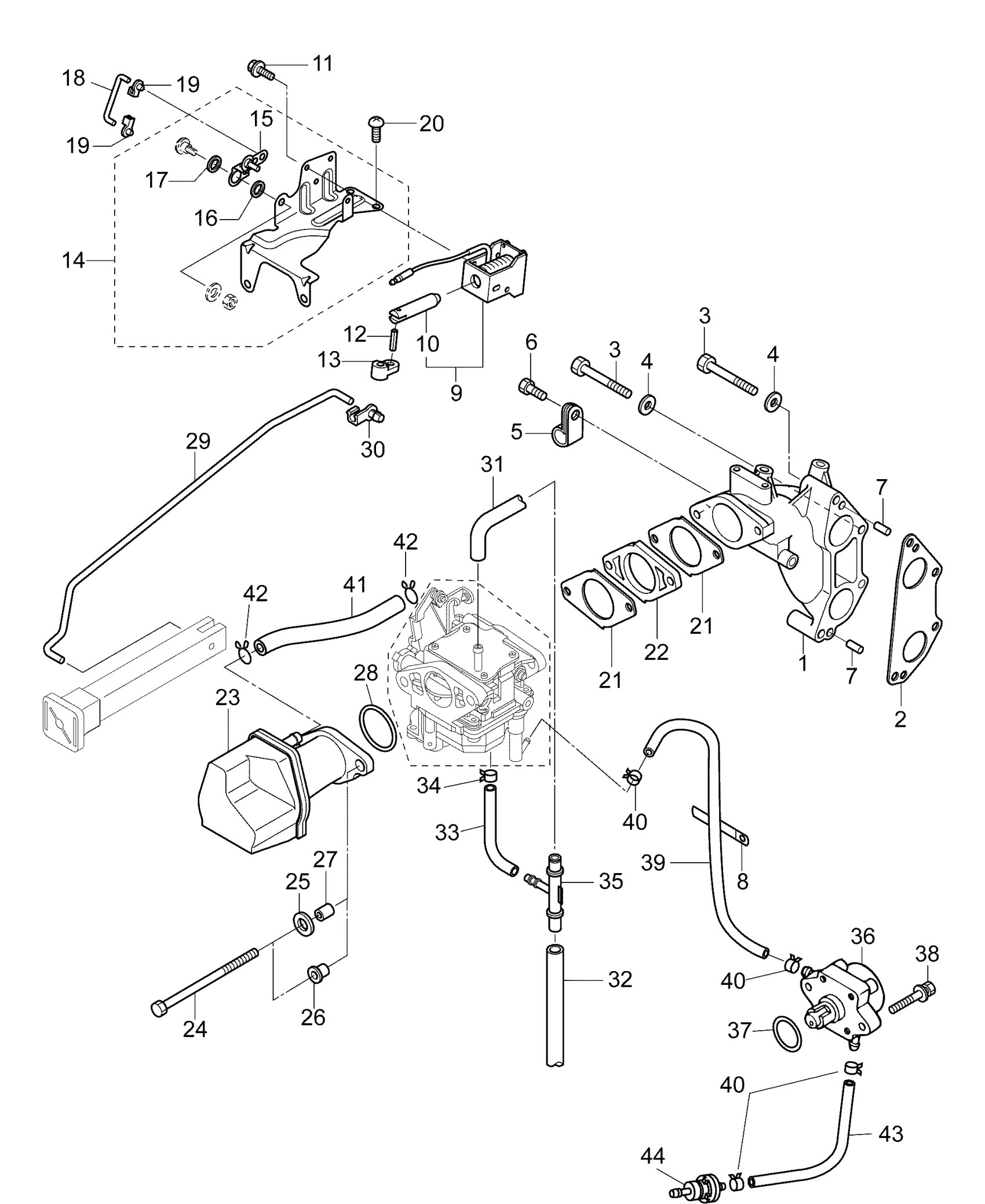

Evinrude E15TEL4INS 15-1_INTAKE MANIFOLD & FUEL PUMP Diagram

#

Description
Price

1

INTAKE MANIFOLD

5040621

$130.04

2

INTAKE MANIFOLD GASKET

5040622

$11.72

3

BOLT

5041591

$2.56

4

* WASHER

5041668

$1.38

5

*Clamp, 6.5-14

5040059

$8.62

6

*BOLT

5041557

$5.97

7

* DOWEL PIN 6-12

5040056

$1.50

8

* CLAMP 6.5-47.5P

5040014

$5.97

9

CHOKE SOLENOID | PL

5040707

$95.62

10

* PLUNGER CHOKE SOLENOID | PL

5040122

$15.80

11

SCREW | PL

5041616

$1.25

12

SPRING PIN | PL

5041686

$4.26

13

CHOKE SOLENOID HOOK | PL

5040708

$11.72

14

CHOKE SOLENOID BRACKET ASSEMBLY | PL

5040713

$29.00

15

* CHOKE LEVER (CHOKE SOLENOID BRACKET) | PL

5040693

$5.00

16

* BUSHING 8.1-15-2.9 | PL

5040680

$5.97

17

* WASHER 8.1-15-1.3 | PL

5040646

$3.69

18

LINK ROD | PL

5040712

$7.37

19

ROD SNAP | PL

5041378

$7.95

20

Screw | PL

5041626

$1.99

21

CARBURETOR GASKET

5040620

$7.95

22

INSULATOR

5040638

$4.00

23

INTAKE SILENCER ASSEMBLY

5040626

$53.03

24

BOLT

5041140

$14.78

25

* WASHER

5041668

$1.38

26

Collar 6.1-9-8.9 | R, TE

5040657

$9.65

27

COLLAR 6.2-9-7.4 | PL

5040248

$3.69

28

SEAL RING 2.4-35

5040627

$7.95

29

CABLE ASSEMBLY, Battery | TE, TEL, and PL Models

5040607

$4.00

30

ROD SNAP | R, TE

5040694

$2.99

31

BREATHER HOSE L=290 | Carburetor

5040662

$13.25

32

BREATHER HOSE L=50 | Carburetor

5040569

$4.83

33

HOSE

5041728

$5.42

34

CLIP 6.8

5040209

$4.83

35

NIPPLE

5040619

$9.65

36

FUEL PUMP ASSEMBLY

5041064

$145.85

37

O-Ring 3.5-25.7

5041082

$6.54

38

BOLT | R, TE

5041561

$6.54

39

Hose

5041730

$13.25

39

FUEL HOSE W/PROTECTOR | US EPA Approved Fuel Hose

5040623

$43.85

40

*Clip

5040403

$7.37

41

Hose

5041731

$8.00

42

CLIP 12

5040757

$1.50

43

Hose

5041730

$13.25

43

FUEL HOSE W/PROTECTOR | US EPA Approved Fuel Hose

5040596

$23.96

44

FUEL FILTER ASSEMBLY

5040140

$31.61
