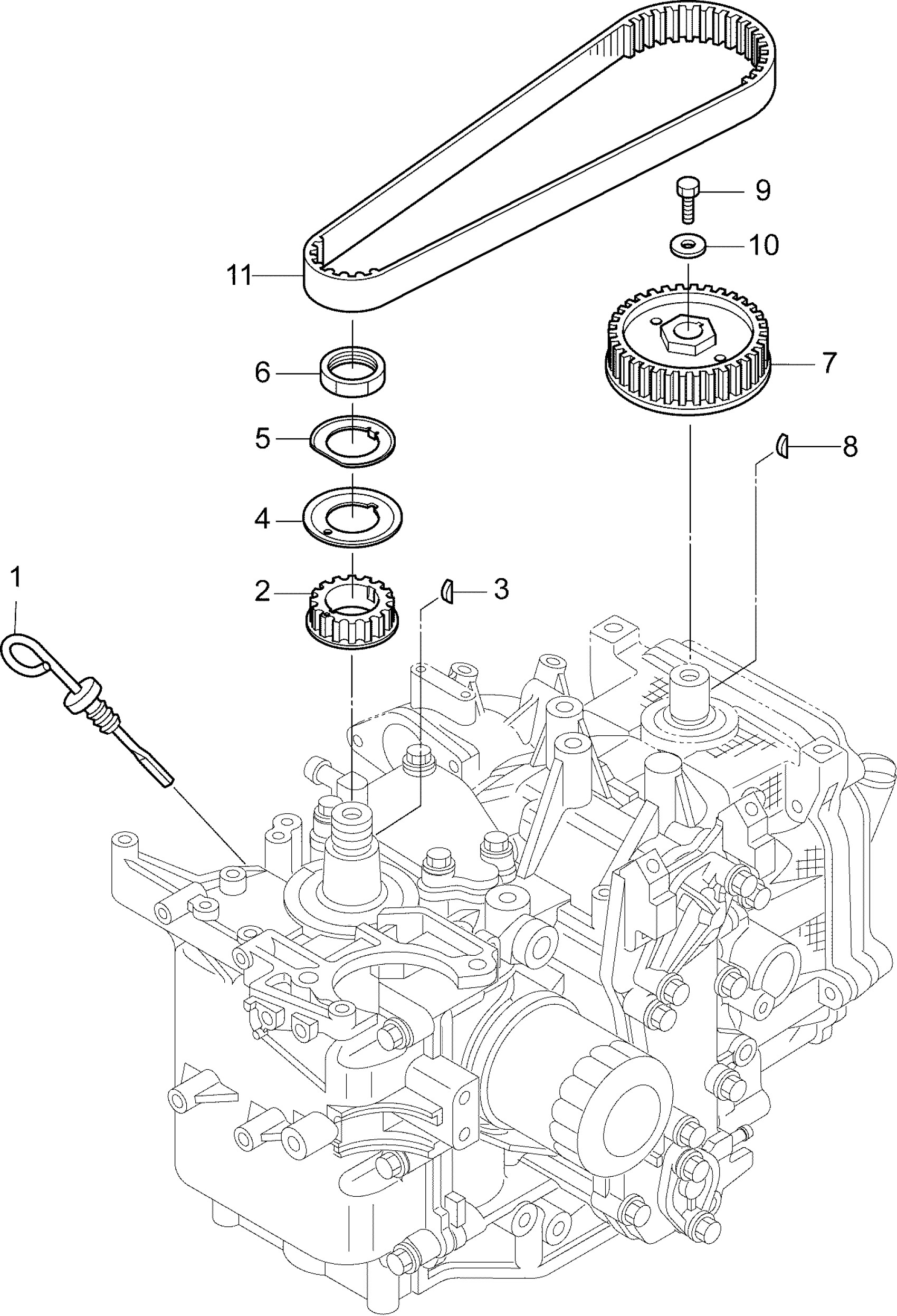

Evinrude E15TE4INS 15-4_TIMING BELT & PULLEYS Diagram

#

Description

Price

1

OIL LEVEL GAUGE

5040456

$42.32

2

DRIVE PULLEY (TIMING PULLEY)

5040663

$99.95

3

KEY (MAGNETO

5040012

$5.42

4

BELT GUIDE

5040664

$9.65

5

LOCK WASHER

5040665

$5.97

6

NUT PULLEY

5041253

$12.74

7

CAMSHAFT PULLEY

5041080

$108.11

8

KEY (MAGNETO

5040012

$5.42

9

PRE COATED BOLT

5040315

$4.83

10

WASHER 6.5-19-3.2

5041081

$4.83

11

TIMING BELT

5041079

$26.00
