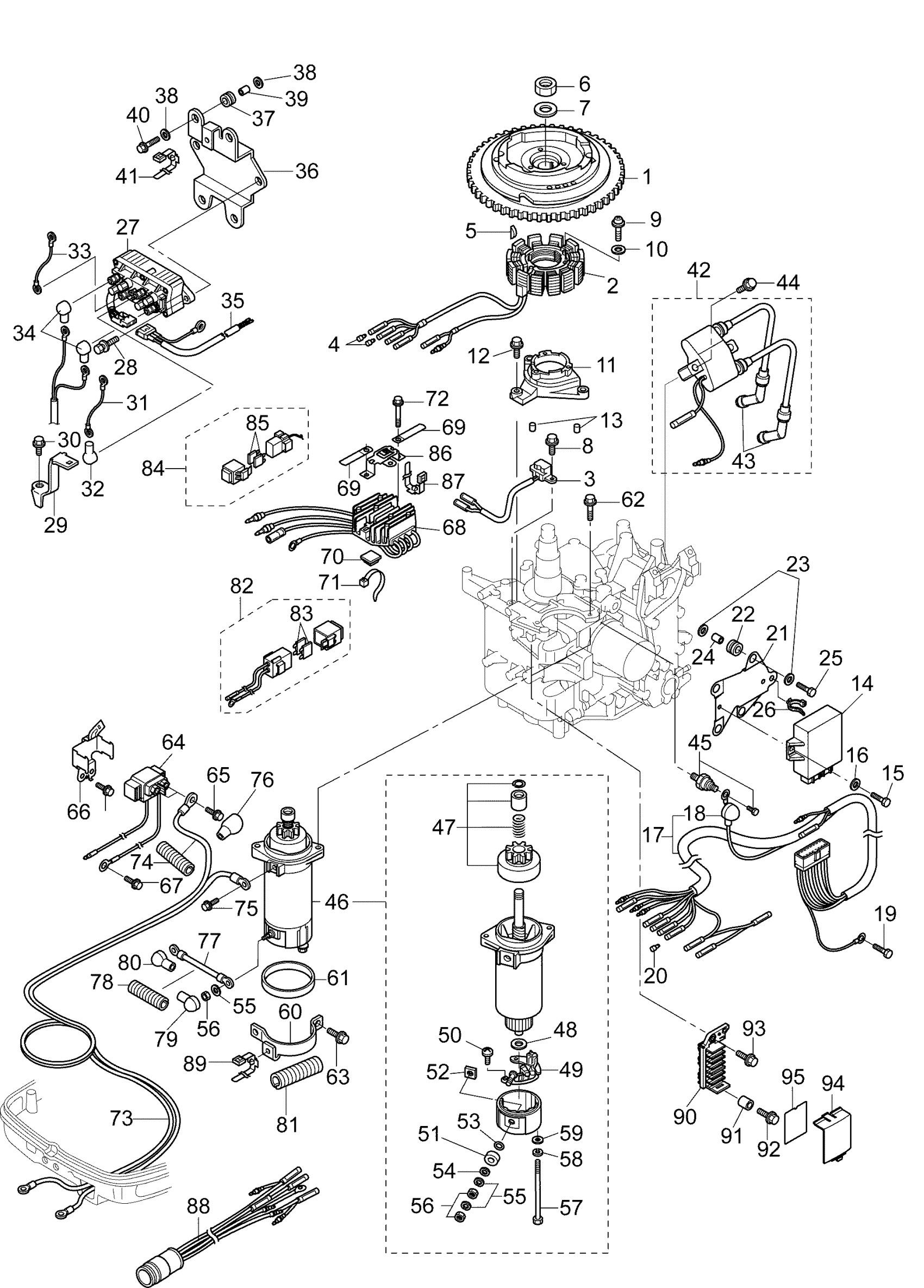

Evinrude E15TE4INS 12-0_ELECTRICAL SYSTEM Diagram

#

Description
Price

1

Flywh W/Ring Gear

5040655

$591.08

2

ALTERNATOR ASSEMBLY

5040648

$59.00

3

PULSAR COIL

5040652

$49.99

4

* CABLE TERMINAL PLUG | R Models

5040256

$3.69

5

KEY DRIVE PULLEY | Magneto

5041254

$6.54

6

NUT

5041657

$8.52

7

WASHER 16-27-3.2

5041060

$4.83

8

BOLT

5041528

$3.13

9

SCREW

5041619

$4.83

10

Washer

5041671

$3.13

11

COIL BRACKET

5041461

$66.29

12

BOLT M6-25

5040469

$4.83

13

* DOWEL PIN 6-12

5040056

$1.50

14

CD UNIT

5040650

$218.40

15

PRE-COATED BOLT

5041323

$4.83

16

* Washer 6-16-1.5 | R, TE

5041147

$5.40

17

CD UNIT CORD ASSEMBLY

5040654

$59.00

18

* GROMMET OIL PRESSURE SWITCH

5041009

$2.00

19

*BOLT

5041557

$5.97

20

* CABLE TERMINAL PLUG | R Models

5040256

$3.69

21

CD UNIT BRACKET

5040651

$43.85

22

RUBBER MOUNT

5040454

$5.97

23

* Washer 6-16-1.5 | R, TE

5041147

$5.40

24

COLLAR 6.2-9-8.7

5040658

$5.97

25

BOLT | R, TE

5041548

$2.56

26

*Band, 135

5040722

$1.50

27

PTT SOLENOID SWITCH (A) | PL, TE Models

5041497

$276.41

28

* BOLT | R, TE

5041560

$5.40

29

RETAINER | PL, TE Models

5040584

$12.74

30

* BOLT | R, TE

5041559

$4.83

31

SOLENOID SWITCH CORD (A) L=300 | PL, TE Models

5040582

$23.45

32

TERMINAL CAP | PL, TE Models

5041479

$5.97

33

SOLENOID SWITCH CORD (B) L=150 | PL, TE Models

5040778

$4.00

34

TERMINAL CAP | PL, TE Models

5041479

$5.97

35

EXTENSION CORD (PTT) | PL, TE Models

5040703

$160.13

36

BRACKET PTT SOLENOID | PL, TE Models

5040660

$72.92

37

RUBBER MOUNT

5040454

$5.97

38

* Washer 6-16-1.5 | R, TE

5041147

$5.40

39

COLLAR 6.2-9-8.7

5040658

$5.97

40

BOLT | R, TE

5041548

$2.56

41

*Band, 135

5040722

$1.50

42

Ign Coil W/R-Cap

5040649

$126.98

43

* PLUG CAP W/RESISTANCE

5040455

$35.18

44

BOLT | R, TE

5041561

$6.54

45

Oil Pressure Switch

5041008

$39.26

46

STARTER MOTOR ASSEMBLY

5040786

$427.50

47

* PINION ASSEMBLY

5040787

$79.00

48

* WASHER

5040780

$11.72

49

* BRUSH HOLDER ASSEMBLY

5040779

$114.74

50

* SCREW

5041623

$1.25

51

* BUSHING 1

5040781

$7.10

52

* BUSHING 2

5040782

$7.10

53

* O-RING

5040783

$4.83

54

* WASHER

5041661

$3.13

55

* SPRING WASHER

5041675

$3.69

56

* NUT

5041651

$3.13

57

Bolt

5040784

$16.31

58

* SPRING WASHER

5041677

$2.56

59

* WASHER

5041672

$1.43

60

STARTER MOTOR BAND | All

5040704

$34.16

61

DAMPER STARTER MOTOR

5040785

$2.00

62

BOLT

5041568

$3.69

63

BOLT | All

5041567

$1.99

64

STARTER SOLENOID | PL, TE Models

5040705

$134.63

65

* BOLT

5041529

$2.56

66

STARTER SOLENOID BRACKET

5040706

$10.00

67

*BOLT

5041557

$5.97

68

* RECTIFIER COMPLETE | PL, TE Models

5040709

$163.19

69

* CLAMP 6.5-47.5P

5040014

$5.97

70

* BAND MOUNT

5040719

$16.31

71

* BAND LEAD WIRE 203

5041515

$1.43

72

* BOLT

5041534

$2.00

73

BATTERY CABLE L=2750 | PL, TE Models

5040609

$39.00

74

Protector 10.7-320

5040653

$6.54

75

*BOLT

5041557

$5.97

76

TERMINAL CAP

5040716

$2.00

77

STARTER CABLE L=270 | PL, TE Models

5041234

$51.50

78

Protector 10.7-180

5040568

$4.26

79

TERMINAL CAP

5041476

$5.97

80

TERMINAL CAP

5040349

$2.00

81

Protector 10.7-75

5040602

$3.13

82

FUSE WIRE ASSEMBLY W/FUSE L=185 | PL, TE Models

5041389

$72.92

83

* FUSE

5041256

$2.00

84

FUSE WIRE ASSEMBLYL=720 | PL, TE Models

5040711

$42.99

85

* FUSE

5041256

$2.00

86

FUSE HOLDER BRACKET

5040710

$18.35

87

*Band, 135

5040722

$1.50

88

CORD ASSEMBLY | PL

5040715

$66.25

89

*Band, 135

5040722

$1.50

90

CABLE TERMINAL HOLDER | with Collar

5040656

$27.02

91

COLLAR 6-8-6

5040003

$5.97

92

* BOLT | R, TE

5041559

$4.83

93

*BOLT

5041557

$5.97

94

Cover Cable Terminal Holder

5040661

$14.27

95

Wiring Diagram Decal | R, TE Models

5040700

$9.65

95

WIRING DIAGRAM DECAL | PL

5040744

$9.08
