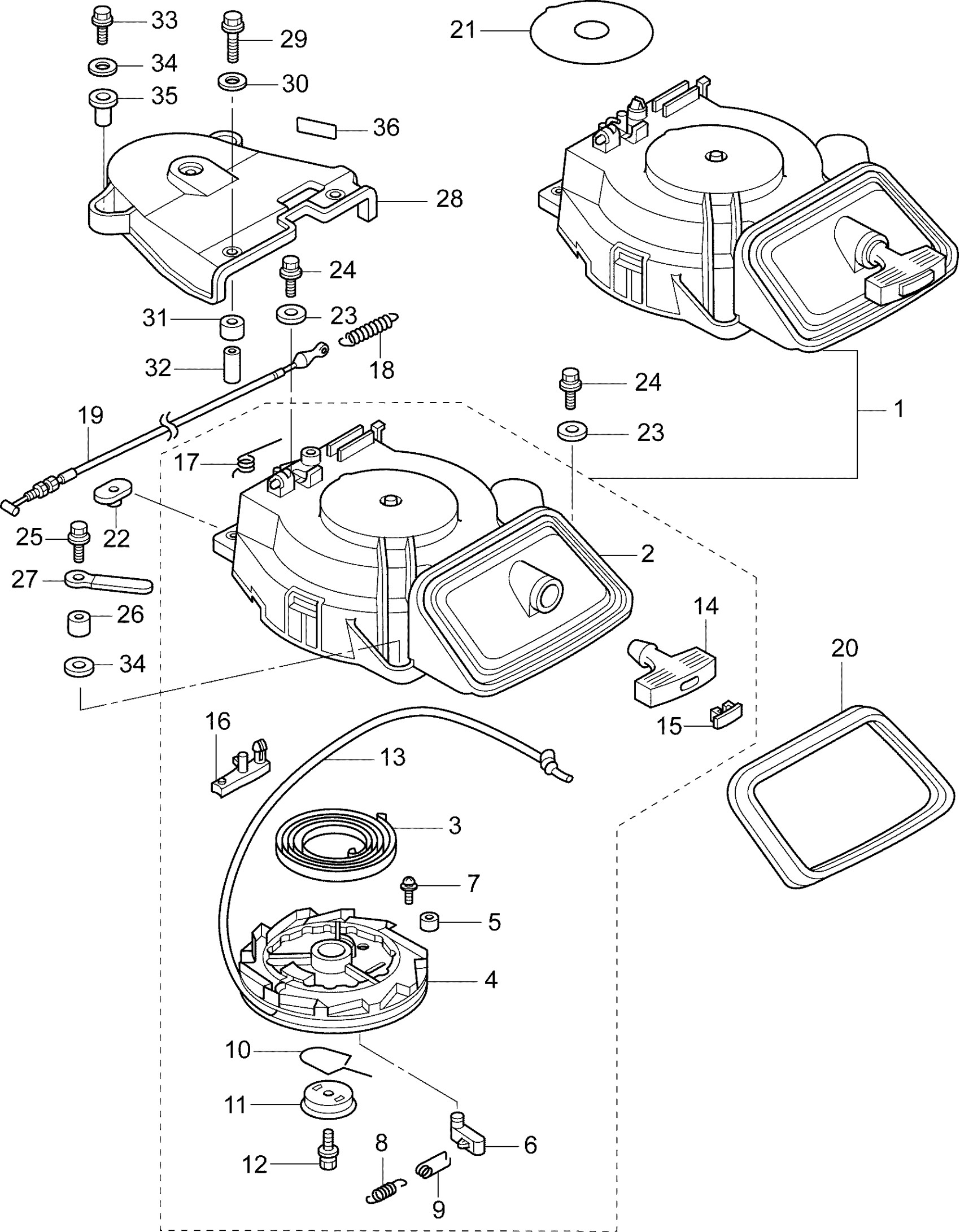

Evinrude E15RL4INS 15-0_RECOIL STARTER Diagram

#

Description
Price

1

RECOIL STARTER ASSEMBLY

5040641

$306.50

2

* STARTER CASE

5040643

$96.86

3

* STARTER SPRING

5041065

$38.24

4

* REEL

5040642

$56.60

5

* BUSHING

5040644

$13.76

6

* RATCHET

5040639

$9.65

7

* TAPPING SCREW

5040647

$4.83

8

* RETURN SPRING

5041190

$4.00

9

* RETURN SPRING

5041066

$3.00

10

* FRICTION SPRING

5041189

$5.00

11

* FRICTION PLATE

5041188

$4.00

12

* Bolt Starter Shaft

5041193

$5.97

13

* STARTER ROPE 5-1800

5041191

$5.00

14

* STARTER HANDLE

5040640

$7.00

15

* ROPE ANCHOR

5041192

$4.00

16

* STARTER LOCK

5041195

$9.65

17

* STARTER LOCK SPRING

5041194

$3.99

18

STARTER LOCK CAM SPRING

5040452

$4.00

19

STARTER LOCK WIRE

5040645

$28.38

20

STARTER SEAL

5040698

$40.28

21

CAUTION DECAL (B)

5041150

$9.65

22

NUT

5040831

$5.97

23

* Washer 6-16-1.5 | R, TE

5041147

$5.40

24

PRECOATED BOLT 6-20

5040487

$4.26

25

PRECOATED BOLT 6-30

5040453

$4.83

26

Collar Bracket

5041031

$9.65

27

* CLAMP 6.5-47.5P

5040014

$5.97

28

BELT COVER

5041198

$20.90

29

BOLT

5041550

$1.99

30

* Washer 6-16-1.5 | R, TE

5041147

$5.40

31

RUBBER MOUNT

5041196

$3.69

32

COLLAR 6.2-9-21

5041197

$3.69

33

BOLT | R, TE

5041548

$2.56

34

* Washer 6-16-1.5 | R, TE

5041147

$5.40

35

Collar 6.1-9-8.9 | R, TE

5040657

$9.65

36

SPARK PLUG DECAL

5041042

$4.99
