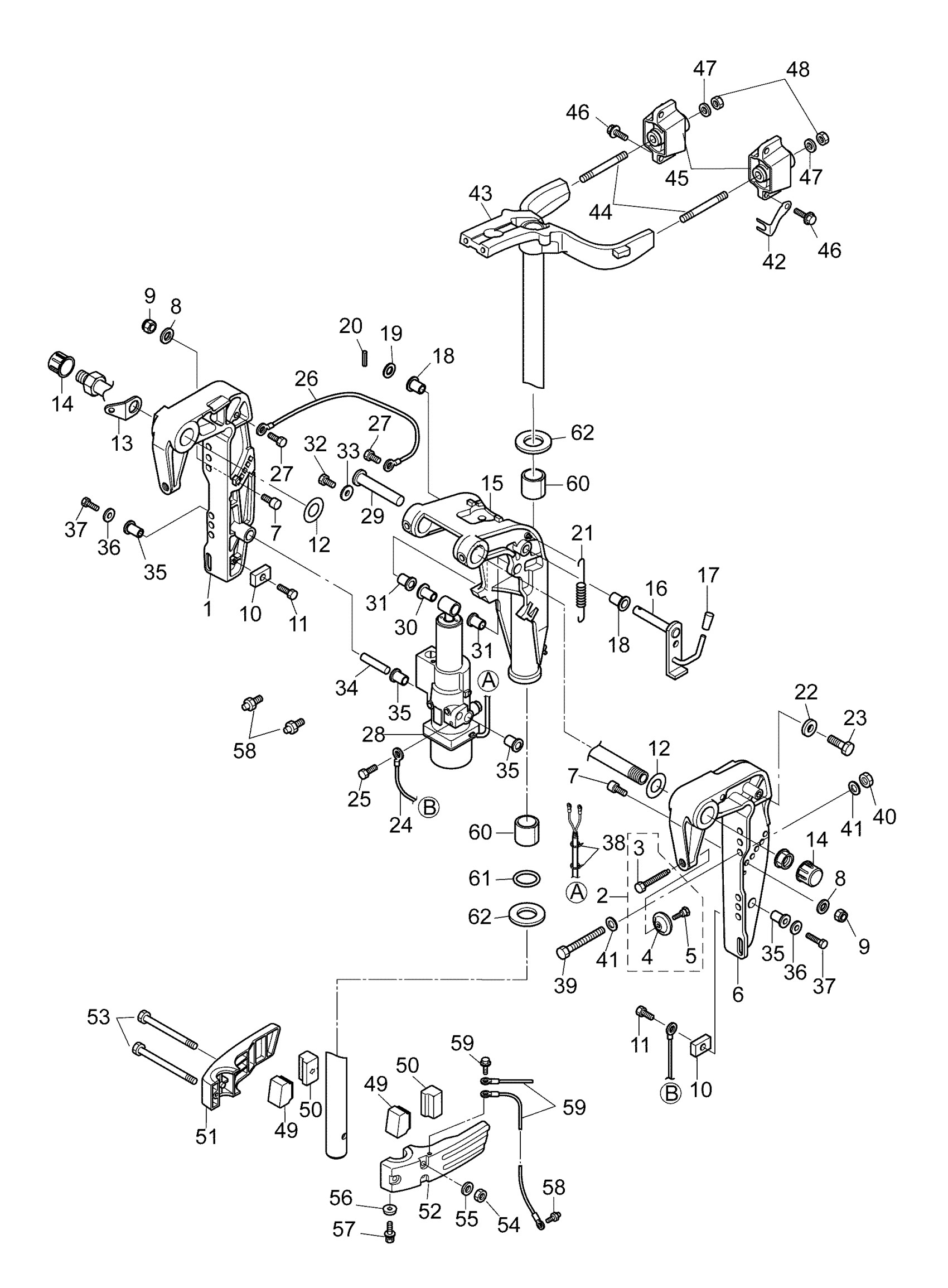

Evinrude E15PL4INS 16-4_STERN & SWIVEL BRACKET (POWER TILT) Diagram

#

Description
Price

1

CLAMP BRACKET | Starboard

5041518

$99.00

2

CLAMP SCREW KIT

5040790

$121.37

3

* CLAMP SCREW

5040789

$73.94

4

* CLAMP SCREW PAD

5040033

$8.52

5

* SHOULDER BOLT

5040770

$11.13

6

CLAMP BRACKET | Port

5041519

$99.00

7

TRIM LOCK PIN

5041501

$26.24

8

Washer 8.1-16-1.5 | 25 in. shaft?

5041138

$2.00

32

* BOLT

5041546

$2.56

33

Washer 6.5-23-1.5

5040057

$7.10

9

NYLON NUT

5041458

$14.78

10

Anode

5041015

$15.29

34

CYLINDER PIN (LOWER)

5041500

$32.17

11

* BOLT

5041532

$1.50

35

Bushing 13-16-31

5041499

$7.10

36

Washer 8.5-28-1

5040011

$4.39

12

Washer 22-36-1 | Nylon

5040320

$4.00

13

PLATE

5040319

$14.27

37

BOLT

5041552

$3.69

14

CAP NUT BRACKET BOLT

5040070

$4.39

38

* BAND LEAD WIRE 203

5041515

$1.43

39

BOLT

5041555

$7.37

15

SWIVEL BRACKET ASSEMBLY

5040595

$165.00

16

TILT STOPPER

5041494

$39.00

40

* NUT

5041650

$4.83

41

WASHER

5041669

$1.99

17

TILT STOPPER GRIP

5040153

$1.50

18

Collar 10.2-12-12

5040110

$1.50

42

Lock Plate Water Pipe

5041220

$9.65

19

* WASHER

5041670

$3.13

43

STEERING SHAFT ASSEMBLY

5040751

$398.47

20

SPRING PIN

5041689

$2.56

44

Stud Bolt 10-95

5041209

$18.86

21

TILT STOPPER SPRING

5041146

$3.00

45

RUBBER MOUNT (UPPER) | 15 in. shaft

5040673

$160.13

22

Washer 6.5-23-1.5

5040057

$7.10

46

* BOLT

5041569

$7.37

23

* BOLT

5041547

$5.97

47

* WASHER

5041670

$3.13

24

GROUND L=130

5040243

$14.78

48

NYLON NUT

5041656

$8.52

25

*BOLT

5041557

$5.97

49

DAMPER (LOWER)

5040675

$56.60

26

GROUND L=130

5040243

$14.78

50

RUBBER MOUNT (LOWER)

5040674

$24.98

27

*BOLT

5041557

$5.97

28

POWER TRIM & TILT HYDRAULIC ASSEMBLY

5040594

$833.81

52

MOUNT BRACKET | Port

5040734

$19.00

29

CYLINDER PIN (UPPER)

5041152

$15.80

53

BOLT

5041554

$5.97

30

Bushing 13-16-31

5041499

$7.10

54

* NUT

5041650

$4.83

31

BUSHING 13-17-19.5

5041153

$7.10

51

MOUNT BRACKET | Starboard

5040733

$19.00

55

Washer 8.1-16-1.5 | 25 in. shaft?

5041138

$2.00

56

* ANODE

5040052

$15.29

57

BOLT

5041533

$5.40

58

GREASE FITTING

5040055

$5.40

59

* BOLT

5041529

$2.56

60

Bushing 28-31-35

5041211

$2.00

61

O-Ring 3.5-25.7

5041082

$6.54

62

THRUST PLATE

5041083

$1.50

63

GROUND L=130

5040243

$14.78
