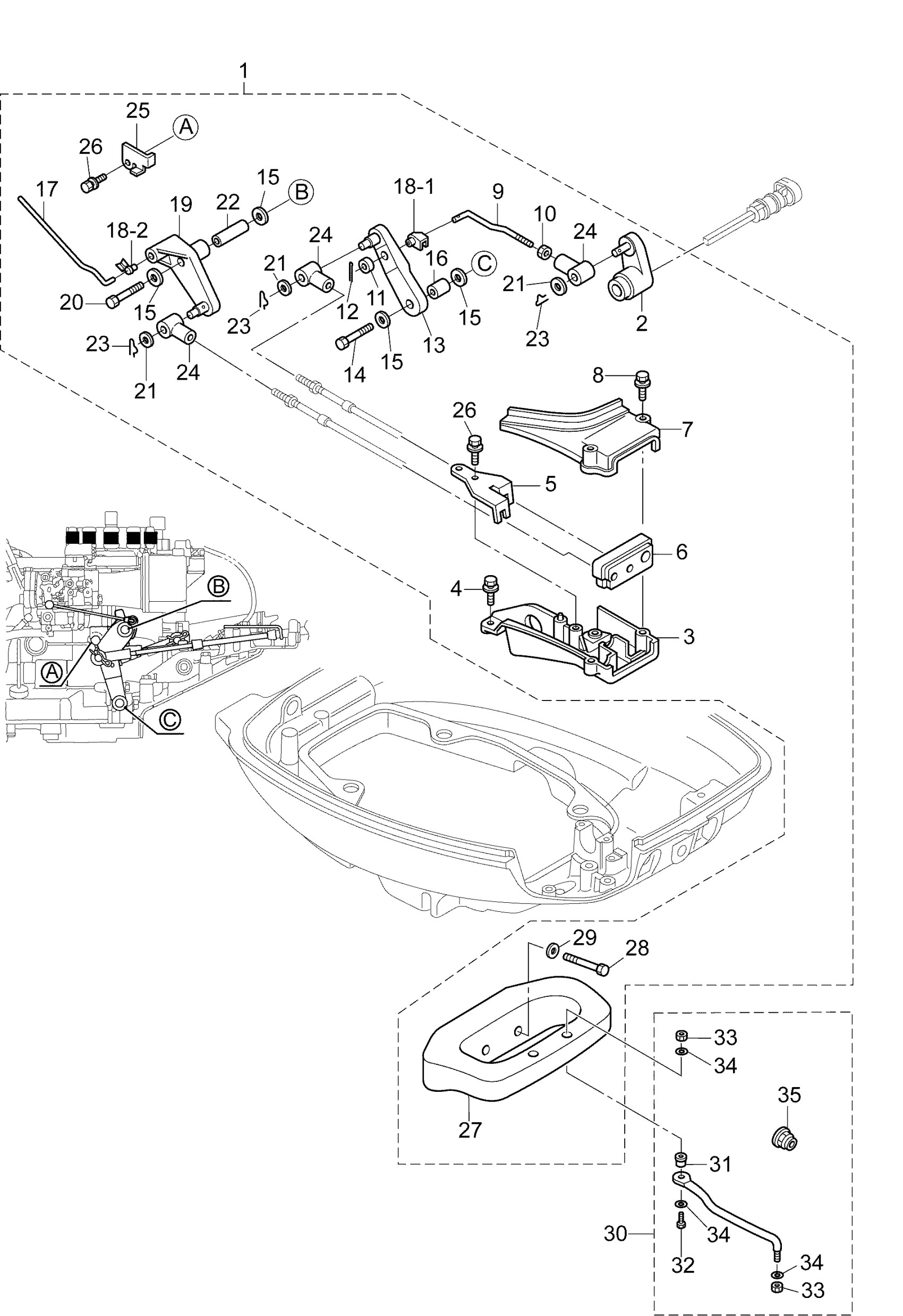

Evinrude E15PL4INS 14-3_SHIFT & THROTTLE LINKAGE (REMOTE CONTROL MODELS) Diagram

#

Description
Price

1

REMOTE CONTROL FITTING ASSEMBLY | PL

5040740

$282.02

2

* SHIFT ARM (REMOTE CONTROL)

5041225

$9.65

3

* REMOTE CONTROL CABLE RETAINER

5041241

$19.00

4

* BOLT | R, TE

5041560

$5.40

5

* CABLE CLIP ASSEMBLY

5041235

$17.84

6

* GROMMET CABLE

5040720

$8.00

7

* REMOTE CONTROL CABLE RETAINER COVER

5041232

$4.00

8

* BOLT 6-35 W/WASHER

5040697

$2.00

9

* SHIFT LEVER ROD

5040687

$14.27

10

* NUT

5041646

$2.56

11

* SPACER?5-9.5-5

5040688

$1.25

12

* SPLIT PIN 2-12

5041694

$3.69

13

* SHIFT LEVER (REMOTE CONTROL)

5041226

$17.33

14

* BOLT

5041549

$3.69

15

* Washer 6-16-1.5 | R, TE

5041147

$5.40

16

* Collar 6.2-9-9.3

5040114

$8.52

17

* Throttle Rod Remote Control

5041218

$4.00

18

* Rod Snap 5-3

5040772

$4.83

18

* Rod Snap 3-B

5040085

$7.37

19

* THROTTLE LEVER (REMOTE CONT)

5041236

$43.85

20

* BOLT

5041551

$3.69

21

* WASHER 8.5-18-1.6

5040351

$7.37

22

* COLLAR 6.2-9-30.8

5041237

$2.00

23

* SNAP PIN D=8

5041699

$3.69

24

* CABLE JOINT

5040559

$9.65

25

* THROTTLE LEVER STOPPER

5040721

$14.78

26

* BOLT | R, TE

5041559

$4.83

27

* STEERING BRACKET

5041460

$91.79

28

* BOLT

5041588

$15.29

29

* WASHER

5041670

$3.13

30

DRAG LINK ASSEMBLY | PL Model

5040800

$267.74

31

* Spacer Drag Link H

5040801

$18.35

32

* Bolt 3/8-50

5040802

$34.16

33

* Nylon Nut 3/8

5040120

$4.00

34

* Washer 9.6-18-2

5040119

$2.00

35

* Seal Ring Drag Link

5040835

$7.10
