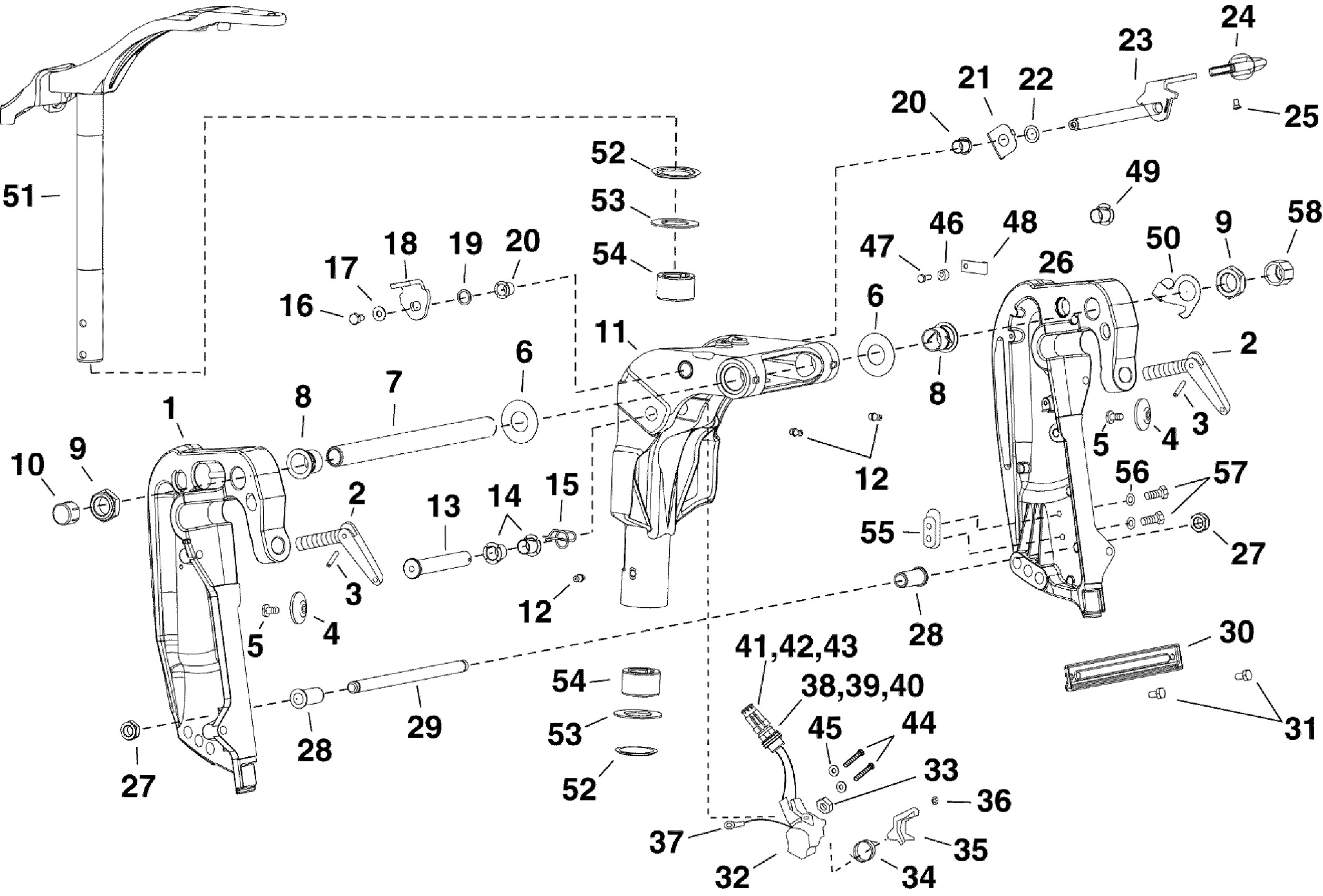

Evinrude E15HPSLINC SWIVEL BRACKET Diagram

#

Description
Price

1

STERN BRACKET, Starboard

0333623

$198.38

2

CLAMP SCR. & HAND. ASSY.

0433675

$49.99

2

CLAMP SCREW & HANDLE

0391421

$119.33

3

**SPRING PIN, Handle

0302023

$6.54

4

**PLATE, Swivel

0337017

$11.72

5

**SCREW, Shoulder

0321922

$11.72

6

THRUST WASHER

0317782

$11.72

7

TILT TUBE

0351896

$113.72

8

BUSHING

0319787

$15.29

9

*LOCKNUT, Tilt tube

0335554

$11.99

10

*CAP, Tilt tube

0317894

$9.93

11

SWIVEL BRACKET

0356963

$483.98

12

***LUBE FITTING

0313607

$9.65

13

PIN

0332435

$61.70

14

*BUSHING, Cylinder to bracket

0332436

$11.72

15

CLIP

0334259

$14.27

16

***SCREW, Anode

0908158

$5.11

17

**WASHER, Screw hook

0328703

$6.78

18

LEVER Assembly, Trail lock

0432293

$52.01

19

RETAINER

0314390

$6.45

20

*BUSHING, Shoulder screw

0315081

$11.72

21

SPRING

0333765

$9.65

22

**WASHER, Latch

0321863

$9.65

23

LEVER & SHAFT

0398875

$157.58

24

KNOB

0334438

$16.31

25

SCREW

0318238

$9.65

26

STERN BRACKET, Port

0333621

$212.15

27

*LOCKNUT, Pulley

0122890

$15.29

28

*BUSHING, CYLINDER TO BRACKET

0332434

$11.72

29

PIN,TILT

0332447

$97.40

30

TIE BAR, Stern bracket

0357240

$36.20

31

***SCREW, Anode

0908158

$5.11

32

SENDING UNIT

0587142

$134.63

33

*ÉCROU

0320689

$9.65

34

**SPRING ARM RETURN

0334885

$16.31

35

**ARM SENDING UNIT

0334342

$16.31

36

**RETAINER

0511527

$9.65

37

**RING TERMINAL, #10

0513323

$0.55

38

* CONTACT, Female receptacle

3011147

$3.13

39

***SEAL, Wire

3011149

$11.72

40

**CONNECTEUR, fiche 3 positions

3011155

$9.93

41

SEAL ASSEMBLY, Trim & tilt | Tiller models with trim power tilt

0586811

$16.82

42

**CONNECTOR, 3 position

3011156

$7.95

43

* PLUG, Sealing

3011150

$5.40

44

*SCREW

0334884

$7.95

45

*RONDELLE, levier de sens de marche

0353761

$5.40

46

*ROLLER

0334341

$7.95

47

*SCREW ROLLER

0308825

$9.45

48

*CLAMP, TPS lead

0310442

$7.95

49

*BUSHING, Cable

0321243

$6.54

NS

** TIE STRAP

0320107

$0.32

50

CLAMP, Cable

0352105

$17.33

51

STEERING ARM & SHAFT ASSEMBLY

5009612

$253.46

52

THRUST WASHER, Upper

0318295

$18.35

53

***SEAL | Contents of GEARCASE SEAL KIT.

0330137

$15.49

54

BUSHING

0339489

$14.27

55

ANODE

0173029

$23.99

56

**LOCKWASHER

0327283

$5.40

57

*SCREW, Start button

0333674

$8.50

58

*ÉCROU RACLEUR

0337586

$15.29
