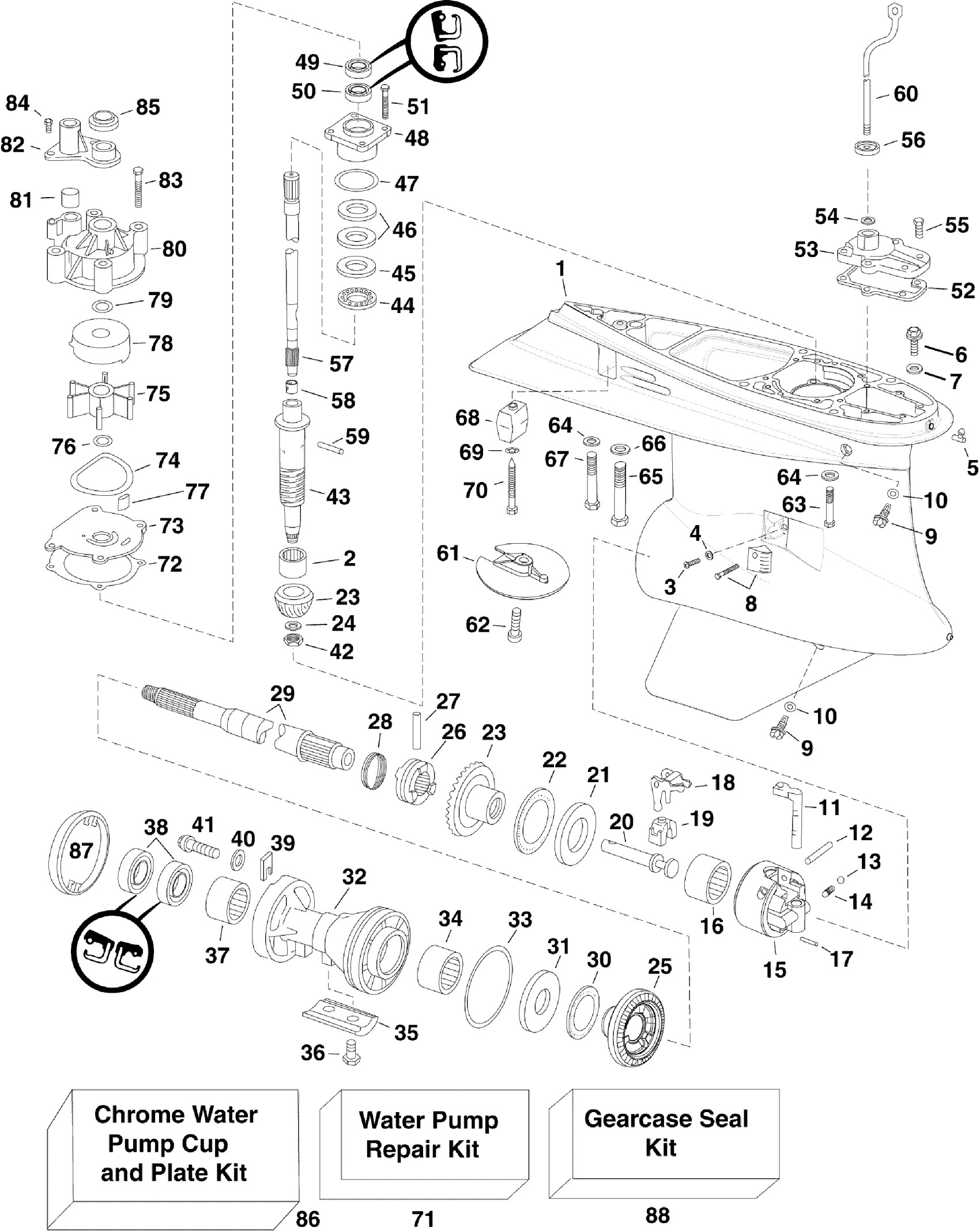

Evinrude E150HSLINM GEARCASE, L2-Type Diagram

#

Description
Price

-

GEARCASE Assembly, Complete | Less Upper Driveshaft and Shift Shaft

5009340

$7,149.68

-

GEARCASE Assembly, Complete | Less Upper Driveshaft and Shift Shaft

5009342

$6,545.33

1

*GEARCASE & BEARING Assembly

5007699

$2,139.49

2

**BEARING, Pinion

0387817

$69.49

3

***RETAINING SCREW & SEAL

0324852

$8.56

4

****WASHER, Seal ring

0332584

$3.44

5

**FITTING, Pitot tube

0336535

$7.22

6

**SCREW, Pitot seal

0341220

$6.54

7

**RONDELLE & JOINT, tube de Pitot

0437330

$9.65

8

**WATER SCREEN KIT, High Perf. | Optional accessory

5005124

$30.08

-

***SCREEN, Wtr intake-port

0348479

$9.65

-

***SCREEN, Wtr intake-stbd

0348480

$9.65

-

***SCREW, Water intake screens

0337061

$6.23

8

**WATER SCREEN KIT, High Flow

5005063

$30.08

-

***SCREEN, Wtr intake-port

0350264

$13.25

-

***SCREEN, Wtr intake-stbd

0350265

$13.25

8

**WATER SCREEN KIT, Ultra High Flow | Optional accessory

5006337

$30.08

-

***SCREEN, Wtr intake-port

0350946

$9.65

-

***SCREEN, Wtr intake-stbd

0350945

$9.65

8

WATER SCREEN KIT, Ultra-high flow (+0.410 in) | Optional accessory

5011694

$31.61

-

WATER SCREEN KIT, Ultra-high flow (+0.410 in) | Optional accessory

5011694

$31.61

9

**SCREW, Fill & drain

0318544

$21.99

10

***SEAL | Contents of Gearcase Seal Kit

0311598

$1.58

11

*DETENT, Shifter

0353483

$84.65

12

*PIN, Shift lever

0328825

$9.01

13

**BALL

0160084

$6.23

14

*SPRING

0911962

$4.11

15

*BEARING HOUSING Assembly, Forward Gear

5007652

$176.96

16

** BEARING, Forward Gear

0389039

$89.49

17

***PIN, Housing to gearcase

0331880

$4.74

18

*LEVER, Shift

0322938

$55.99

19

**CRADLE, Shifter

0334163

$27.49

20

*SHAFT, Shift

0353484

$22.94

21

*THRUST WASHER, Forward gear

0327669

$47.99

22

*THRUST BEARING Assembly, Foward gear

0389042

$66.49

23

*GEAR SET, Forward, Pinion

5009114

$448.28

24

***WASHER, Pinion nut

0350038

$3.13

25

*GEAR, Reverse

0353544

$263.15

26

*SHIFTER, Clutch dog

0337774

$150.99

27

**PIN, Clutch dog

0313448

$6.89

28

**SPRING, Clutch dog pin

0324369

$6.23

29

*PROPELLER SHAFT

5007643

$447.60

30

**THRUST BEARING

0382408

$11.99

31

*RONDELLE DE BUTÉE, engrenage de marche arrière

0314731

$23.99

32

*BEARING HOUSING Assembly, Propshaft

5007637

$493.67

33

O RING | Contents of Gearcase Seal Kit

0305123

$5.67

34

***BEARING ASSY, Forward gear

0382407

$34.49

35

***ANODE, Bearing housing

0431708

$23.99

36

***SCREW, Anode

0908158

$5.11

37

**BEARING, Propshaft

0436752

$20.99

38

**SEAL | Contents of Gearcase Seal Kit

0334950

$23.49

39

*LANGUETTE, de retenue

0333957

$36.99

40

**RONDELLE

0328743

$5.97

41

*SCREW

0350271

$12.99

42

**NUT, Pinion to driveshaft

0314730

$18.49

43

*DRIVESHAFT, Lower

0345905

$277.49

44

*BUTÉE, arbre d'entraînement

0387656

$47.49

45

*RONDELLE DE BUTÉE, arbre d'entraînement

0327656

$17.49

46

*CALE, 0,003" (0,07 mm)

0323362

$6.23

46

*CALE, 0,004" (0,10 mm)

0323361

$6.67

46

*CALE, 0,005" (0,12 mm)

0314745

$6.78

47

***O-Ring | Contents of Gearcase Seal Kit

0354731

$5.67

48

*BEARING HOUSING & SEAL

0439476

$140.99

49

**JOINT, supérieur | Contents of Gearcase Seal Kit

0329922

$12.49

50

**JOINT, inférieur | Contents of Gearcase Seal Kit

0329923

$13.49

51

*SCREW, Driveshaft hsg

0317624

$4.00

52

*GASKET, Shift rod cover | Contents of Gearcase Seal Kit

0352165

$4.56

53

*COUVERCLE & JOINT, tige de commande de sens de marche

5006241

$60.17

54

"O" RING, Shift rod | Contents of Gearcase Seal Kit

0318372

$3.44

55

**SCREW, Cover to gearcase

0328725

$7.37

56

*GROMMET, Exh hsg to shift rod

0321008

$6.33

57

DRIVESHAFT Assembly, Upper

5007136

$252.44

58

**RETAINER, Driveshaft

0338504

$6.23

59

**ROLL PIN, Driveshaft

0311538

$6.23

60

SHIFT ROD

0350464

$112.19

61

COVER, Trim tab opening

0336284

$38.24

62

SCREW, Cap, hex hd, 7/16-14 x 1

0313715

$12.99

63

SCREW, Gearcase housing

0331999

$10.99

64

**WASHER, Trail lock lever

0330266

$9.65

65

SCREW, Gearcase to housing

0331998

$30.08

66

*WASHER

0330265

$6.23

67

*SCREW, Upper mount retention

0330263

$18.19

68

**ANODE

0436745

$23.49

69

**LOCK WASHER, Anode

0307161

$2.55

70

**SCREW, Anode

0341219

$13.99

71

Water Pump Repair Kit

5001595

$107.79

72

*GASKET, Imp. hsg. Plate | Contents of Gearcase Seal Kit

0338484

$4.56

73

*PLATE, Impeller

0338485

$15.49

74

Seal, Impeller Housing Plate.

0331353

$12.49

75

*IMPELLER Assembly

5001593

$48.81

76

"O" RING, Spacer to imp. hsg.

0302035

$4.00

77

**CLAVETTE, turbine

0331107

$1.32

78

*COUPELLE, turbine (inox)

0338486

$18.49

79

O-Ring | Included in Cyl/Crankcase Gasket & Seal Kit

0331188

$5.67

80

*HOUSING, Impeller

0360347

$21.99

81

*BAGUE, tube à eau vers capot

0314008

$3.77

82

*CAPOT, carter de turbine

0338893

$11.49

83

**SCREW, Impeller housing

0302325

$6.23

84

*SCREW

0306643

$4.00

85

*BAGUE, pompe vers carter d'échap.

0320943

$11.15

86

CHROME CUP & PLATE KIT | Optional accessory

0435526

$205.01

-

*COUPELLE, turbine (chrome)

0338551

$101.48

-

*PLATE, Impeller

0338552

$109.64

87

Renegade Bass Weed Ring

0126669

$15.49

88

GEARCASE SEAL KIT

5006373

$125.99
