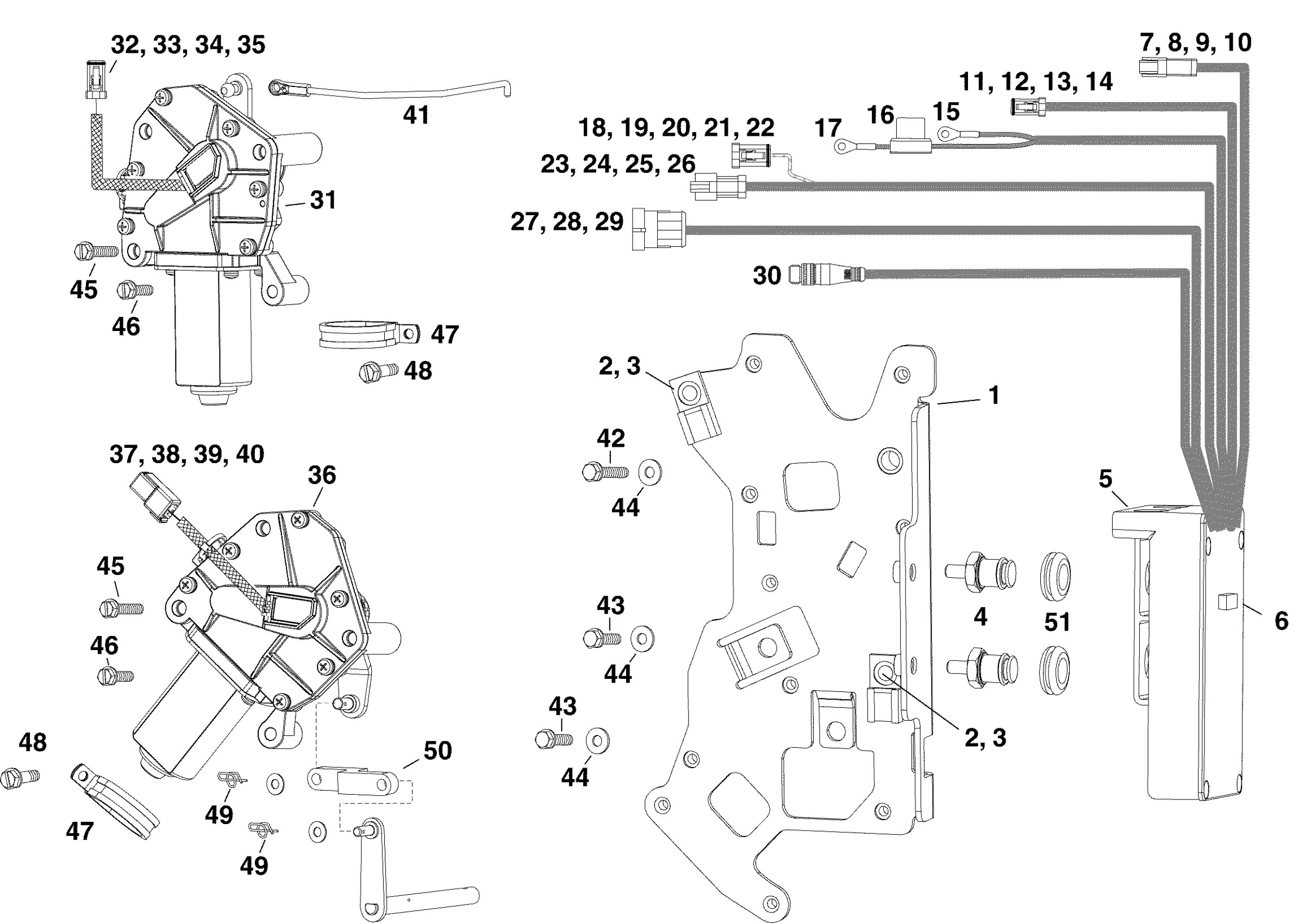

Evinrude DE150PXINS ELECTRONIC SHIFT AND THROTTLE Diagram

#

Description
Price

1

*PLAQUE, montage de la commande

5008043

$499.79

2

**ATTACHE, connecteur

3011694

Unavailable

3

**ŒILLET

0351756

$1.25

4

**GOUJON, montage ESM

0344848

$24.98

5

*MODULE, Electronic servo (ESM)

0587114

$875.98

6

**FICHE, identification moteur - 0 (moteur 1)

0764915

$21.99

6

**FICHE, identification moteur - 1 (moteur 2)

0764916

$21.99

6

**FICHE, identification moteur - 2 (moteur 3)

0764917

$18.99

6

**FICHE, identification moteur - 3 (moteur 4)

0764918

$11.81

6

**FICHE, identification moteur - 4 (moteur 5)

0764919

$11.81

7

**CONNECTEUR, 6 broches

3011701

$15.29

8

**CALE VERROUILLAGE, 6 broches

3011702

$3.13

9

**BORNE, broche

3011703

$9.65

10

***BOUCHON, mâle

0514858

$4.00

11

***CONNECTOR, 6 Socket plug

3011704

$13.25

12

***LOCKWEDGE, 6 Socket plug

3011705

$4.26

13

***TERMINAL, Socket

3011706

$11.72

14

***BOUCHON, mâle

0514858

$4.00

15

Ring Terminal

0600138

$3.85

16

**FUSE, ATM 30

3011729

$4.44

17

**BORNE, anneau 0,312" (7,9 mm) diamètre

0204053

$0.69

18

***CONNECTOR, 3 socket

0514685

$15.29

19

****SEAL, Connector

0514789

$11.72

20

***SOCKET

0514680

$2.99

21

***LOCK WEDGE, 3 socket

0514681

$4.26

22

***BOUCHON, mâle

0514690

$11.72

23

***CONNECTOR, 6-PIN

0514688

$21.41

24

***LOCK WEDGE, 6-pin

0514684

$3.13

25

***BORNE, broche

0514679

$0.77

26

***BOUCHON, mâle

0514690

$11.72

27

**CONNECTEUR, EMM

3011421

$17.33

28

***CONTACT, Tab

3011148

$6.54

29

***SEAL, Wire

3011149

$11.72

30

Not Available As Spare Part - Friction Washer

Unavailable

31

*ACTUATOR Assy, Throttle

0587112

$657.49

32

***CONNECTOR, 6 Socket plug

3011704

$13.25

33

***LOCKWEDGE, 6 Socket plug

3011705

$4.26

34

***TERMINAL, Socket

3011706

$11.72

35

***BOUCHON, mâle

0514858

$4.00

36

*ACTUATOR Assy, Shift

0587113

$654.49

37

**CONNECTEUR, 6 broches

3011701

$15.29

38

**CALE VERROUILLAGE, 6 broches

3011702

$3.13

39

**BORNE, broche

3011703

$9.65

40

***BOUCHON, mâle

0514858

$4.00

41

Link Ay

5008828

$44.87

-

*KIT, Installation hardware

0764966

$111.49

42

**SCREW, Plate - 3/8-16 x 1

0330930

$11.72

43

**SCREW, Plate - 3/8-16 x .75

0319590

$11.72

44

**RONDELLE, vis plaque de commande

0301161

$1.70

45

**SCREW, Actuator - 1/4-20 x 2.5

0354393

$7.37

46

**SCREW, Actuator - 1/4-20 x 1.5

0353064

$9.65

47

**CLAMP, Actuator support

0354154

$6.54

48

**SCREW, Clamp - 1/4-20 x .75

0335687

$7.95

49

**ATTACHE, commande vers tringlerie de sens de marche

0333774

$9.65

50

**LINK, Shift actuator to lever

0354919

$82.10

51

**GROMMET, ESM Mounting

0329518

$9.65

NS

** TIE STRAP

0320107

$0.32
