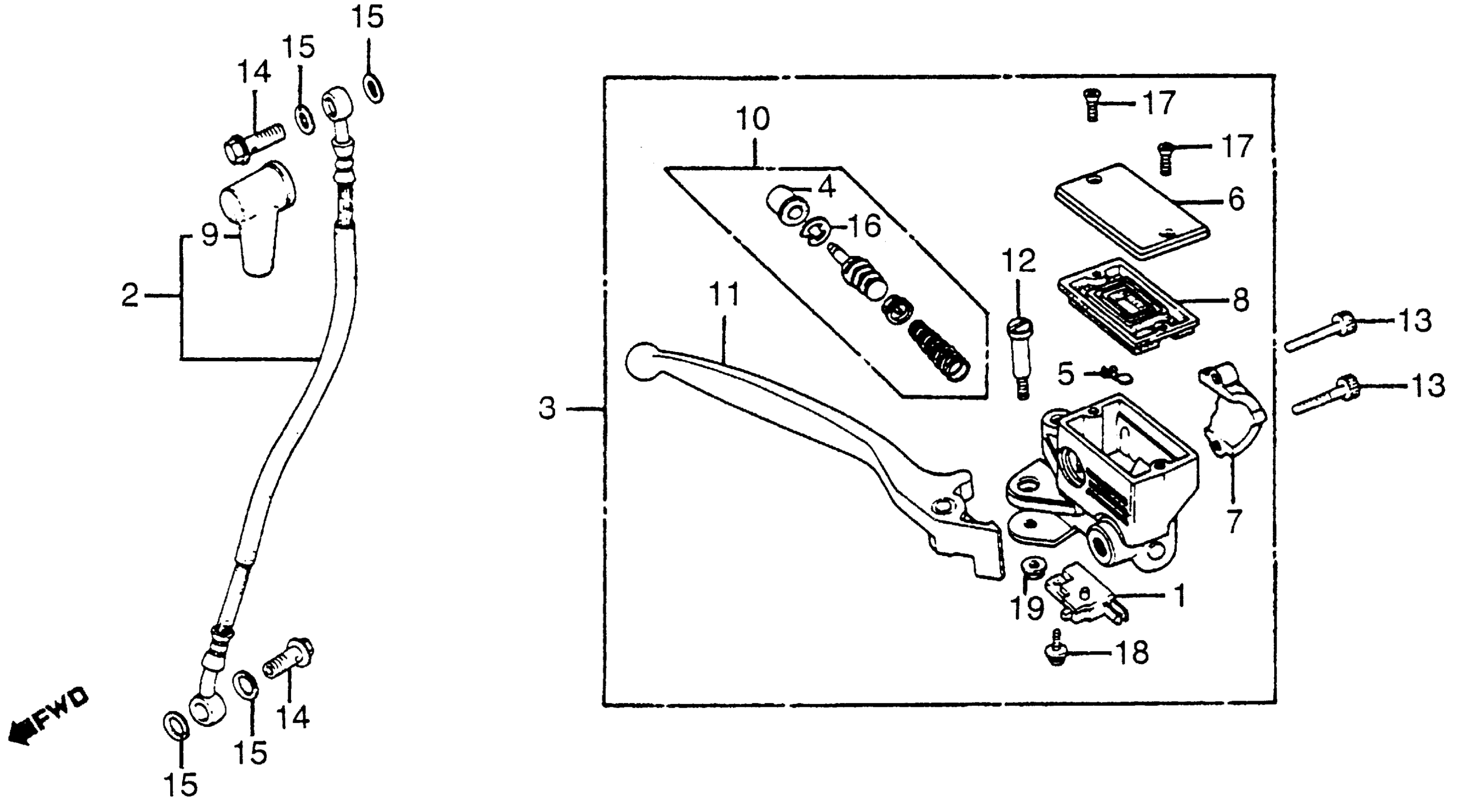

Honda CX650CA (83) CUSTOM, JPN, VIN# JH2RC110-DM000018 TO JH2RC110-DM010120 FR. BRAKE MASTER CYL. + BRAKE LEVER Diagram

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

HOSE ASSY., FR. BRAKE (NOT AVAILABLE) This part replaces 45126-ME8-671.

45126-ME8-672

Unavailable

HOSE ASSY., FR. BRAKE (NOT AVAILABLE)

45126-ME8-672

Unavailable

MASTER CYLINDER ASSY., FR. (NOT AVAILABLE) This part replaces 45500-ME8-671.

45500-ME8-673

Unavailable

MASTER CYLINDER ASSY., FR. (NOT AVAILABLE)

45500-ME8-673

Unavailable

BOOT

45504-410-003

$12.16

PROTECTOR

45512-MA6-006

$4.28

CAP (NOT AVAILABLE)

45540-MA6-621

Unavailable

HOLDER, MASTER CYLINDER (NOT AVAILABLE)

45517-MB0-006

Unavailable

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

DIAPHRAGM

45520-MA5-672

$18.13

BOOT, MASTER CYLINDER

45522-422-000

$8.68

MASTER CYLINDER SET

45530-MA4-671

$47.76

LEVER, R. HANDLEBAR This part replaces 53175-MA6-006.

53175-MA6-016

Unavailable

LEVER, R. HANDLEBAR

53175-MA6-016

Unavailable

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

BOLT, SOCKET (6X23)

90117-MB0-000

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-KM3-751

$11.02

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-08

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
