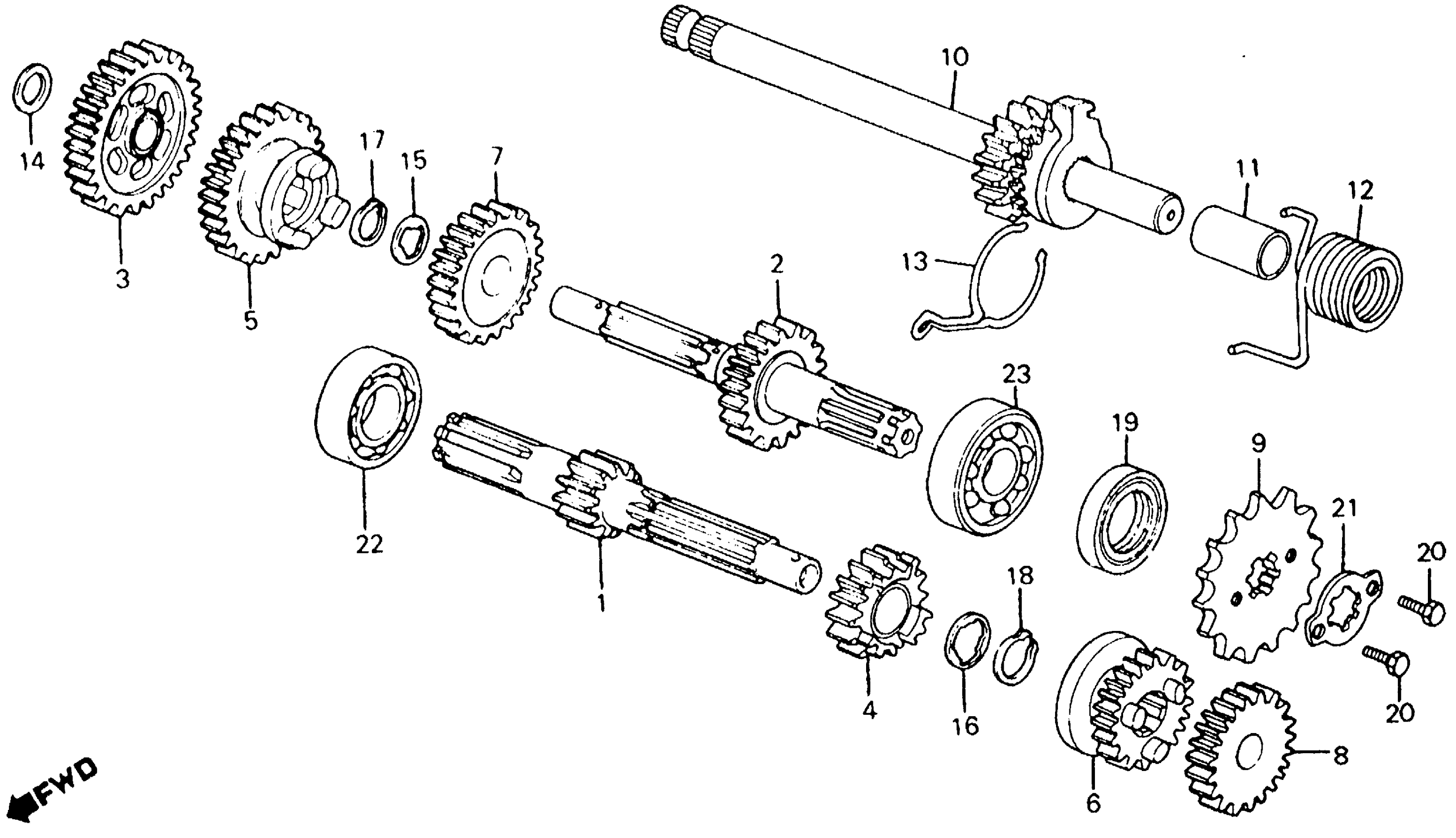

Honda CT110A (80) TRAIL 110, JPN, VIN# JD01-5000001 TO JD01-5009733 TRANSMISSION + KICK STARTER SPINDLE 80 Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-459-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (23T) This part replaces 23221-459-000.

23221-459-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION (23T)

23221-459-010

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T)

23421-459-000

Unavailable

4

GEAR, MAINSHAFT SECOND (18T)

23431-459-010

Unavailable

5

GEAR, COUNTERSHAFT SECOND (29T) (NOT AVAILABLE)

23441-459-000

Unavailable

6

GEAR, MAINSHAFT THIRD (21T) This part replaces 23451-459-010.

23451-968-000

Unavailable

6

GEAR, MAINSHAFT THIRD (21T)

23451-968-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23461-459-010.

23461-968-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T)

23461-968-000

Unavailable

8

GEAR, MAINSHAFT TOP (24T) This part replaces 23471-459-010.

23471-968-000

Unavailable

8

GEAR, MAINSHAFT TOP (24T)

23471-968-000

Unavailable

9

SPROCKET, DRIVE (15T)

23801-459-000

Unavailable

10

SPINDLE, KICK STARTER (NOT AVAILABLE) This part replaces 28250-459-000.

28250-459-010

Unavailable

10

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-459-010

Unavailable

11

GUIDE, KICK STARTER SPRING (NOT AVAILABLE)

28255-121-690

Unavailable

12

SPRING, STARTER RETURN This part replaces 28261-121-691.

28261-121-692

Unavailable

12

SPRING, STARTER RETURN

28261-121-692

Unavailable

13

SPRING, STARTER PINION FRICTION

28271-121-690

$4.17

14

WASHER, THRUST (14MM)

90451-121-000

$1.87

15

WASHER, SPLINE (18MM)

90461-028-000

Unavailable

16

WASHER, SPLINE (20MM)

90461-459-010

$5.54

17

CIRCLIP (18MM)

90601-030-000

$1.77

18

CIRCLIP (OUTER) (20MM)

90601-459-000

$2.92

19

OIL SEAL (20X37X7) This part replaces 91201-459-003.

91201-459-013

Unavailable

19

OIL SEAL (20X37X7)

91201-459-013

Unavailable

20

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

20

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

20

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

21

PLATE B, FIXING

95014-92100

$1.49

22

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

23

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
