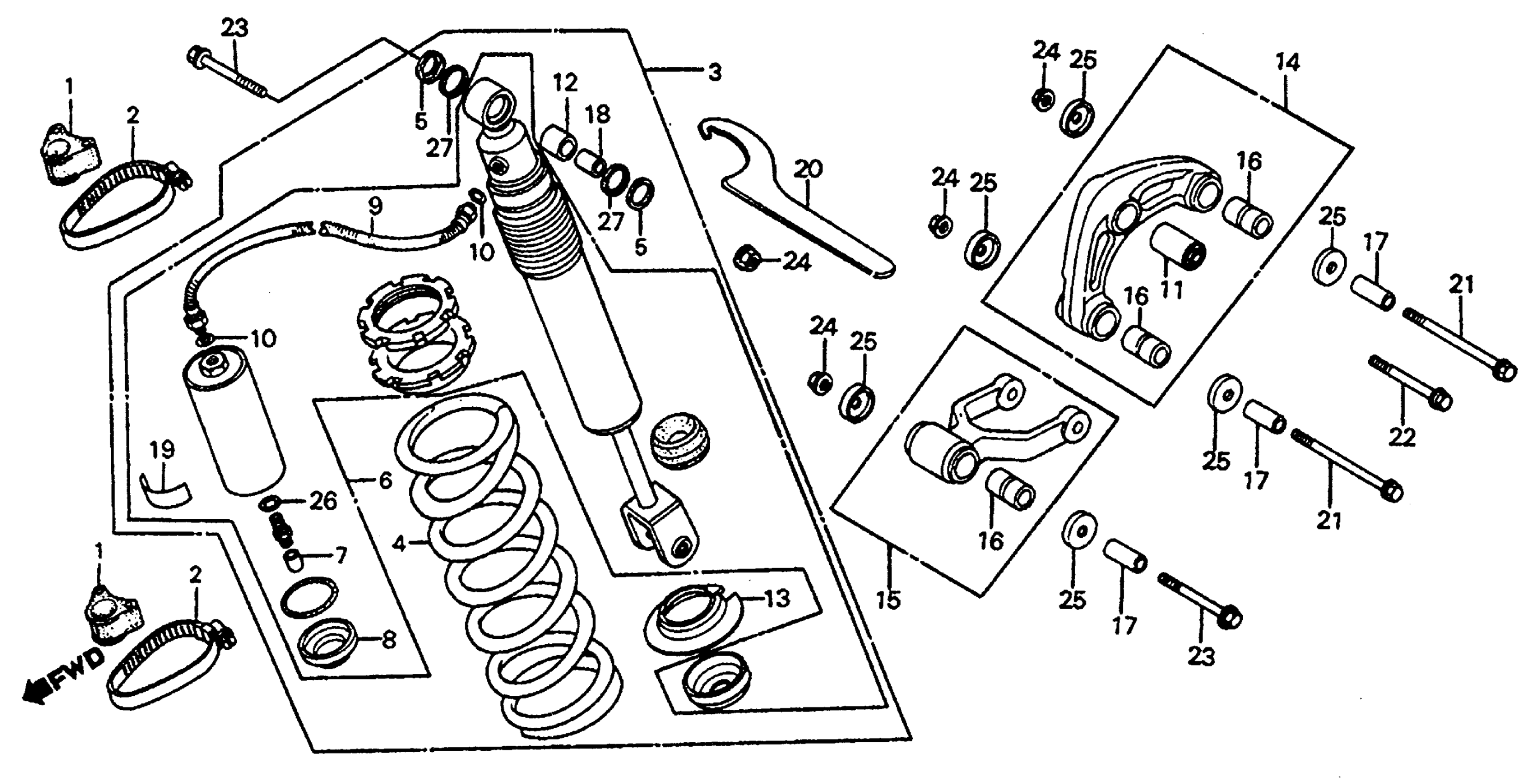

Honda CR80RA (83) MOTORCYCLE, JPN, VIN# JH2HE040-DK000020 TO JH2HE040-DK007883 REAR SHOCK ABSORBER 83 Diagram

#

Description
Price

1

RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)

50250-GC4-700

Unavailable

2

BAND, SUB-TANK (NOT AVAILABLE)

50252-GC4-000

Unavailable

3

SHOCK ABSORBER ASSY., RR.

52400-GC4-771

Unavailable

4

SPRING, RR. SHOCK ABSORBER

52401-GC4-701

Unavailable

4

SPRING, RR. SHOCK ABSORBER (4.8KG/MM) (SOFT) | (Optional).

52402-GC4-811

Unavailable

4

SPRING, RR. SHOCK ABSORBER (5.6KG/MM) (HARD) | (Optional).

52403-GC4-811

Unavailable

5

CAP, DUST SEAL

52406-KB7-003

$6.48

6

DAMPER, RR. SHOCK ABSORBER

52410-GC4-771

Unavailable

7

CAP, AIR VALVE

52425-381-771

$5.05

8

CAP, SUB-TANK

52427-MA0-003

Unavailable

9

HOSE, JOINT (NOT AVAILABLE)

52440-961-003

Unavailable

10

O-RING (9.8X1.9)

52441-MA0-003

Unavailable

11

BUSH, SHOCK ABSORBER (LOWER) (NOT AVAILABLE)

52451-GC4-000

Unavailable

12

BUSH, SHOCK ABSORBER (UPPER)

52452-KB7-003

$15.55

13

SEAT, RR. SHOCK ABSORBER SPRING

52459-GC4-003

Unavailable

14

ARM ASSY., SHOCK ABSORBER

52460-GC4-700

Unavailable

15

ROD ASSY., SHOCK CONNECTING

52470-GC4-700

Unavailable

16

BUSH, RUBBER CONNECTING ROD

52472-MA0-013

$29.48

17

COLLAR, CONNECTING ROD PIVOT This part replaces 52473-MA0-010.

52473-MA0-020

$16.68

17

COLLAR, CONNECTING ROD PIVOT

52473-MA0-020

$16.68

18

COLLAR, SHOCK ABSORBER (UPPER)

52486-KB7-003

$14.81

19

LABEL, RR. DAMPER CAUTION (NOT AVAILABLE)

87516-MA0-003

Unavailable

20

SPANNER, PIN (NOT AVAILABLE) | (Optional).

89201-GC4-810

Unavailable

20

SPANNER, PIN | (Optional).

89202-GC4-810

Unavailable

21

BOLT, FLANGE (10X67) (NOT AVAILABLE)

90128-GC4-003

Unavailable

22

BOLT, FLANGE (10X40) (NOT AVAILABLE)

90153-GC4-003

Unavailable

23

BOLT, FLANGE (10X62) This part replaces 90182-GC4-701.

90101-MBB-000

$4.04

24

NUT, AXLE (10MM)

90304-GA6-003

$2.89

25

SEAL, SHOCK ABSORBER ARM PIVOT This part replaces 91262-GE2-003.

91262-GE2-005

Unavailable

25

SEAL, SHOCK ABSORBER ARM PIVOT

91262-GE2-005

Unavailable

26

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

26

O-RING (5.8X1.9)

91305-323-000

$2.92

26

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

27

DUST SEAL B

91351-KB7-003

$3.49
