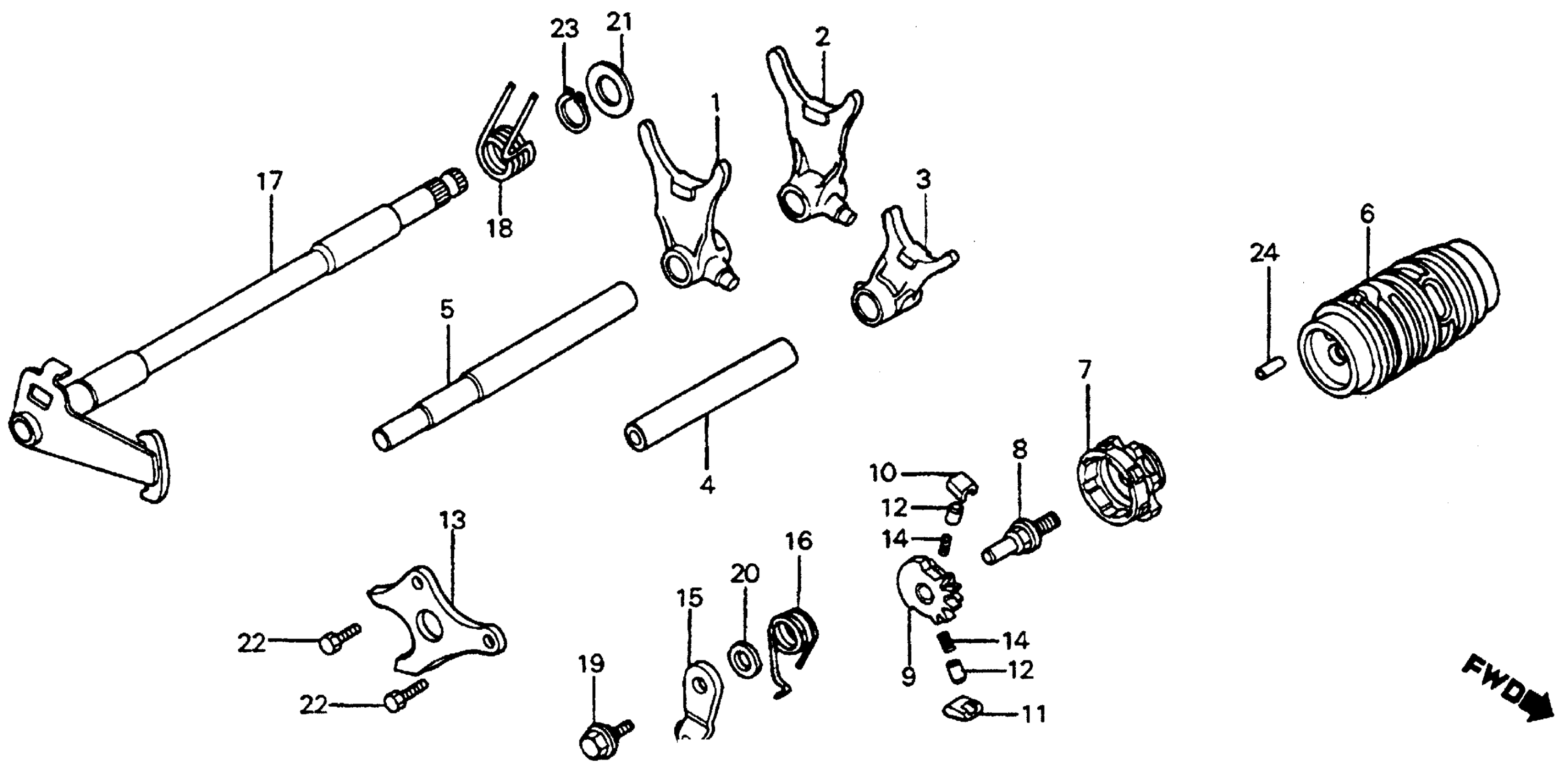

Honda CR80RA (83) MOTORCYCLE, JPN, VIN# JH2HE040-DK000020 TO JH2HE040-DK007883 GEARSHIFT DRUM 83 Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (NOT AVAILABLE)

24210-GC4-700

Unavailable

2

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-GC4-700

Unavailable

3

FORK, CENTER GEARSHIFT (NOT AVAILABLE)

24230-GC4-700

Unavailable

4

MAINSHAFT, GEARSHIFT FORK (NOT AVAILABLE)

24265-GC4-700

Unavailable

5

COUNTERSHAFT, GEARSHIFT FORK

24266-GC4-700

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-GC4-700

Unavailable

7

CENTER, GEARSHIFT DRUM This part replaces 24312-KA3-711.

24312-KA3-741

$64.75

7

CENTER, SHIFT DRUM

24312-KA3-741

$64.75

8

PIN, SHIFTER

24315-KA3-710

$21.03

9

SHIFTER, DRUM This part replaces 24321-KA3-711.

24321-MJ0-010

Unavailable

9

SHIFTER, DRUM This part replaces 24321-MJ0-000.

24321-MJ0-010

Unavailable

9

SHIFTER, DRUM

24321-MJ0-010

Unavailable

10

PAWL A, RATCHET This part replaces 24324-KA3-710.

24324-KA3-711

$13.21

10

PAWL A, RATCHET

24324-KA3-711

$13.21

11

PAWL B, RATCHET This part replaces 24325-KA3-710.

24325-KA3-711

$13.21

11

PAWL B, RATCHET

24325-KA3-711

$13.21

12

PLUNGER, PAWL This part replaces 24326-360-000.

24326-360-010

$5.19

12

PLUNGER, PAWL

24326-360-010

$5.19

13

PLATE, GUIDE

24328-GC4-700

Unavailable

14

SPRING, PAWL PLUNGER

24329-360-000

$2.90

15

STOPPER, DRUM

24430-KA3-710

Unavailable

16

SPRING, DRUM STOPPER

24435-KA3-710

Unavailable

17

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-GC4-700

Unavailable

18

SPRING, SHIFT RETURN

24651-KA3-710

Unavailable

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

19

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

20

WASHER, DRUM STOPPER

90417-360-000

$1.74

21

WASHER B, THRUST (14MM)

90428-958-000

$4.66

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

23

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

24

ROLLER (4X8)

96220-40080

$1.49
