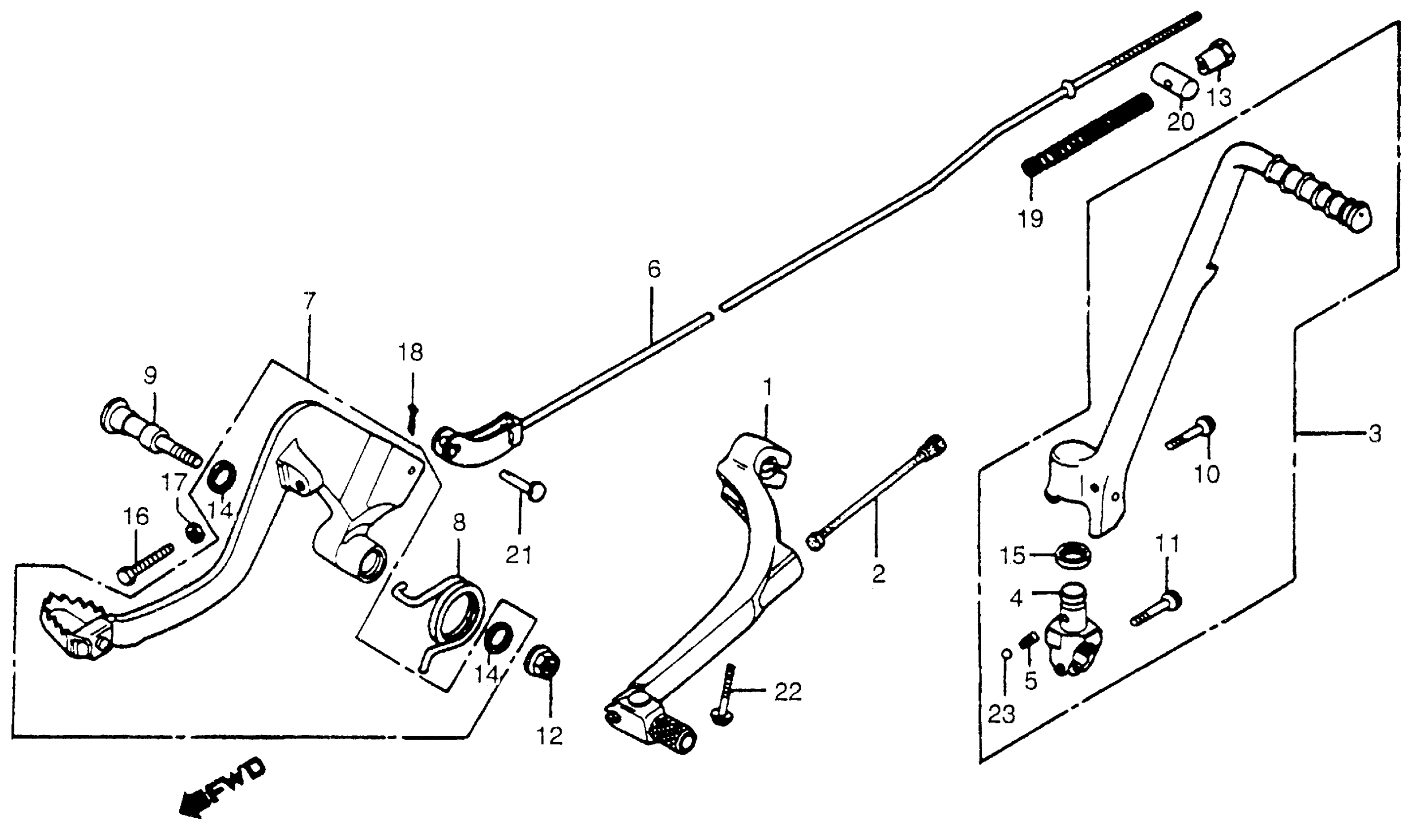

Honda CR450RA (81) ELSINORE, JPN, VIN# JH2PE020-BC000001 TO JH2PE020-BC004682 SHIFT PEDAL + KICK STARTER ARM + BRAKE PEDAL 81 Diagram

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-KA4-000

Unavailable

RUBBER, GEARSHIFT PEDAL (NOT AVAILABLE)

24704-KA4-000

Unavailable

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-KA4-000

Unavailable

JOINT, KICK ARM (NOT AVAILABLE)

28302-KA4-000

Unavailable

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

ROD, RR. BRAKE

43451-KA5-000

Unavailable

PEDAL, BRAKE (NOT AVAILABLE)

46510-KA4-000

Unavailable

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46511-KA4-000

Unavailable

SHAFT, BRAKE PIVOT (NOT AVAILABLE)

46513-KA4-000

Unavailable

BOLT, KICK ARM

90101-329-000

$3.67

SCREW, FLAT (8X29) (NOT AVAILABLE)

90124-KA4-000

Unavailable

NUT, AXLE (10MM)

90304-GA6-003

$2.89

NUT, BRAKE ADJUSTING

90339-430-000

Unavailable

DUST SEAL (15X20X2.5)

91251-444-000

$4.33

DUST, SEAL (19X25X3)

91303-KA4-003

Unavailable

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

PIN, COTTER (1.6X12)

94201-16120

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

JOINT, BRAKE ARM

95015-32001

$1.49

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
